MacDon M1170NT5 - Page 111

215922 91 Revision A
1016133
A
B

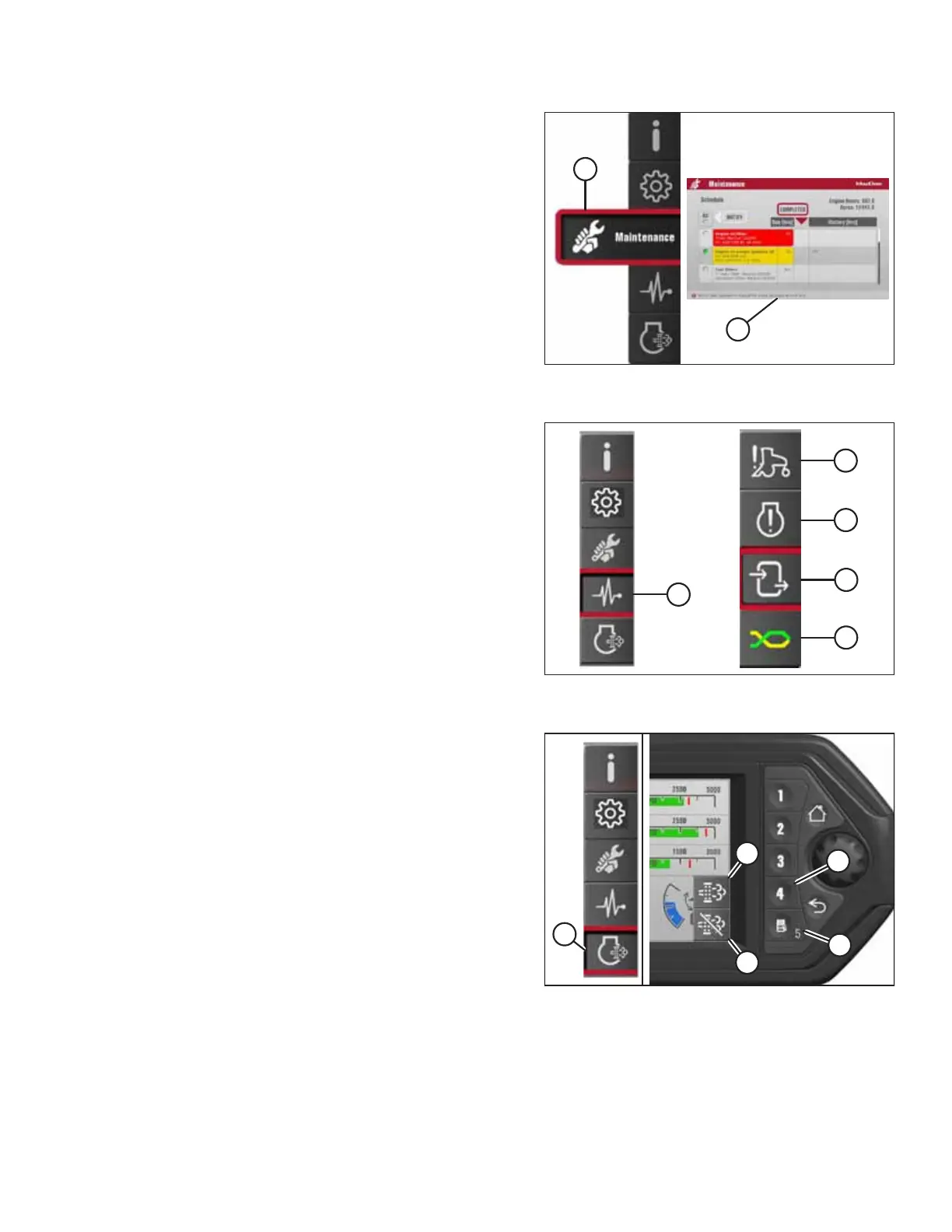

Figure 3.93: Maintenance Icon and Maintenance
Menu List
Maintenance: Icon (A) opens maintenance menu list (B). For
instructions, refer to 5.2.3 Using Electronic Maintenance Tool,
page 238.
1014658
A
B
C
D
E
Figure 3.94: Diagnostics Icon and Diagnostics
Submenu Icons
Diagnostics: Icon (A) displays the following submenu icons:
• Windrower Fault Codes (B)
• Engine Fault Codes (C)
• Inputs/Outputs (D)
• Can Network (E)
1014659
A
B
C
D
E
Figure 3.95: Engine Aftertreatment Icon and Soft Keys
Engine Aftertreatment: Icon (A)
• Soft key 4 (B) activates the initiate manual SCR conditioning
command, and initiate icon (D) will become highlighted on
the display.
• Soft key 5 (C) activates the inhibit SCR conditioning
command, and inhibit icon (E) will become highlighted on
the display.
OPERATOR’S STATION
