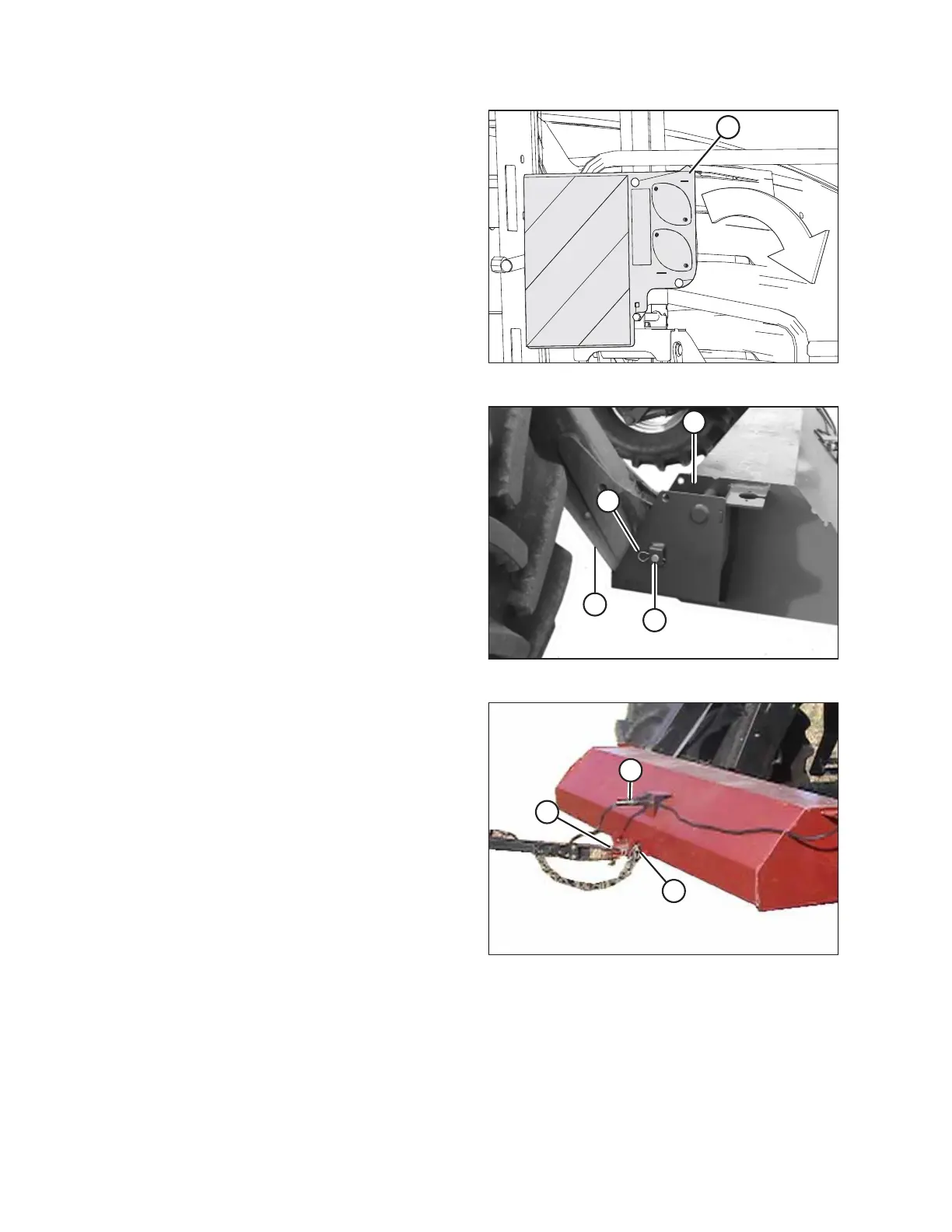

Figure 4.80: Left Signal Light Placard
8. Rotate left signal light placard (A) to the down (horizontal)
position before driving in narrow transport mode.
1019405
A
B
C
D
Figure 4.81: Windrower Lift Linkage
9. Drive the windrower so that lift legs (A) are positioned in
weight box pockets (B). Raise the lift legs slightly.
10. Shut down the engine, and remove the key from
the ignition.
11. Install locking pin (C) into the pocket and secure it with
hairpin (D). Repeat for the opposite leg.
NOTE:
The pins were previously removed from the header
supports.
1000722
A
B
C
Figure 4.82: Weight Box
12. Attach slow speed transport hitch (A) to the weight box
tongue with the drawbar pin. Secure the drawbar pin with
the lynch pin. Attach safety chain (B).
13. Connect the hitch harness (C) to the electrical socket at the
front of the weight box.
