MacDon M1170NT5 - Page 306

215922 286 Revision A
1019888
A
B
C

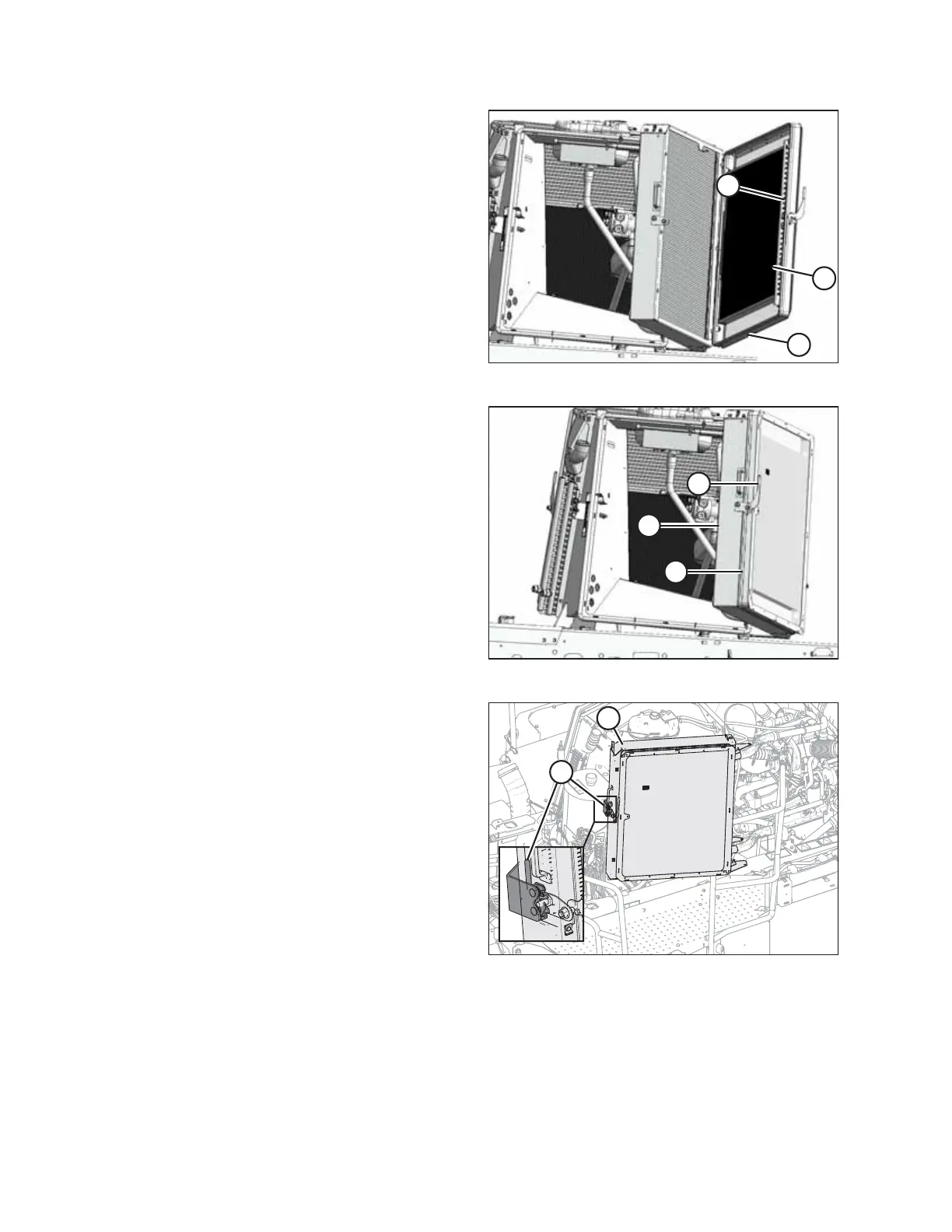

Figure 5.76: Left Cooler Module
6. Close condenser (B) into screen (C) and secure with
bracket (A).
1019887
A
B
C
Figure 5.77: Left Cooler Module
7. Close screen/condenser door (B) onto radiator door (C) and
secure with lever (A).
1015749
B
A
Figure 5.78: Left Cooler Module
8. Close radiator door (B) and push until latch (A) secures
door (B).
MAINTENANCE AND SERVICING
