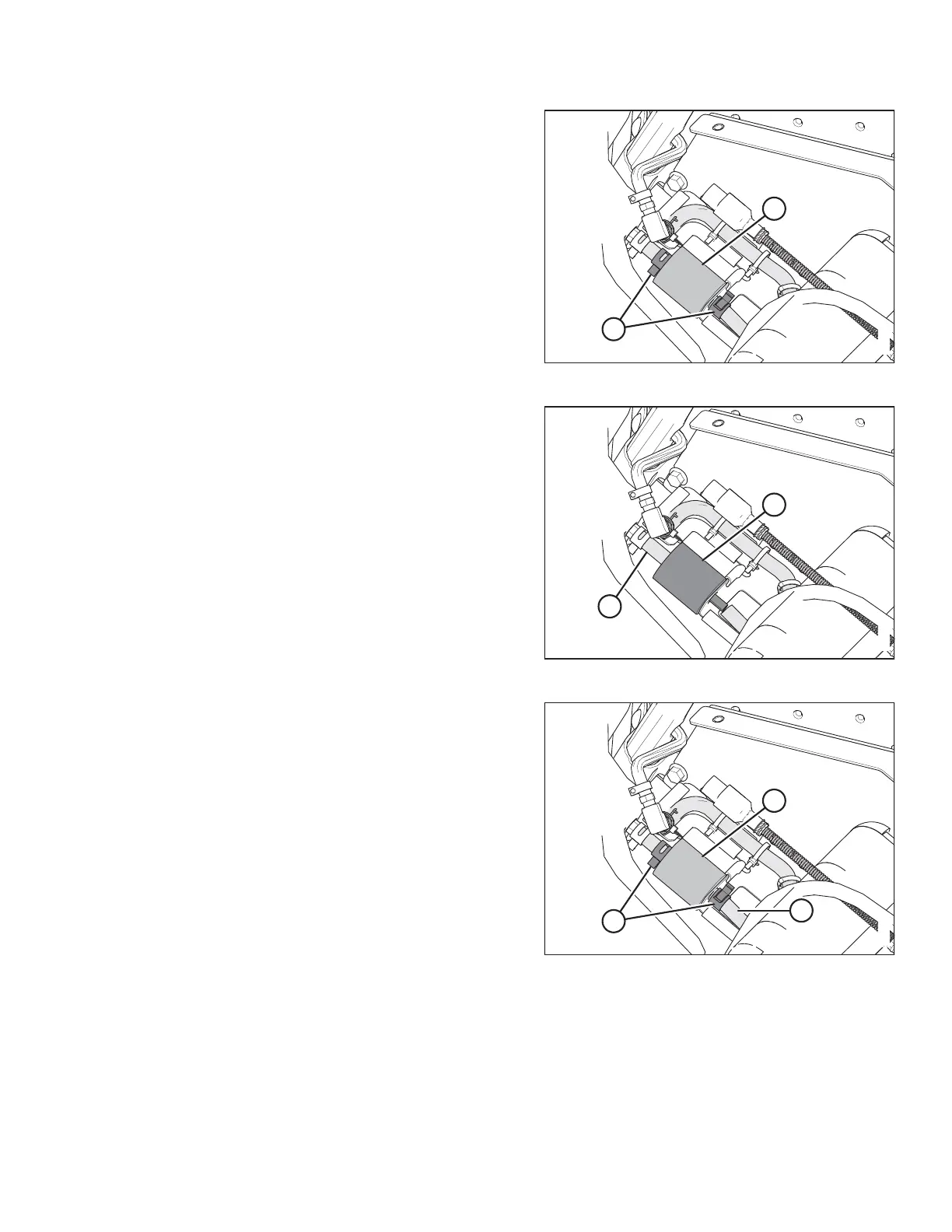

Figure 5.112: Fuel Tank Vent and Filter
3. Release hose tension clamps (A) and slide away from
filter (B).
4. Pull hoses off filter (B) and remove the filter.
Figure 5.113: Fuel Tank Vent and Filter
5. Position new filter (A) and attach to fuel tank hose (B). The
IN marking on the filter should face away from the fuel
tank hose.
NOTE:
If filter has an arrow instead of an IN marking, arrow should
point toward the fuel tank hose.
Figure 5.114: Fuel Tank Vent and Filter
6. Attach fuel vent hose (A) to filter (B) and secure both hoses
with tension clamps (C).
7. Close the hood. For instructions, refer to 5.3.2 Closing
Hood, page 240 .
