•G+ & VG+ Series 4 Technical Manual

November 2020

Page 188

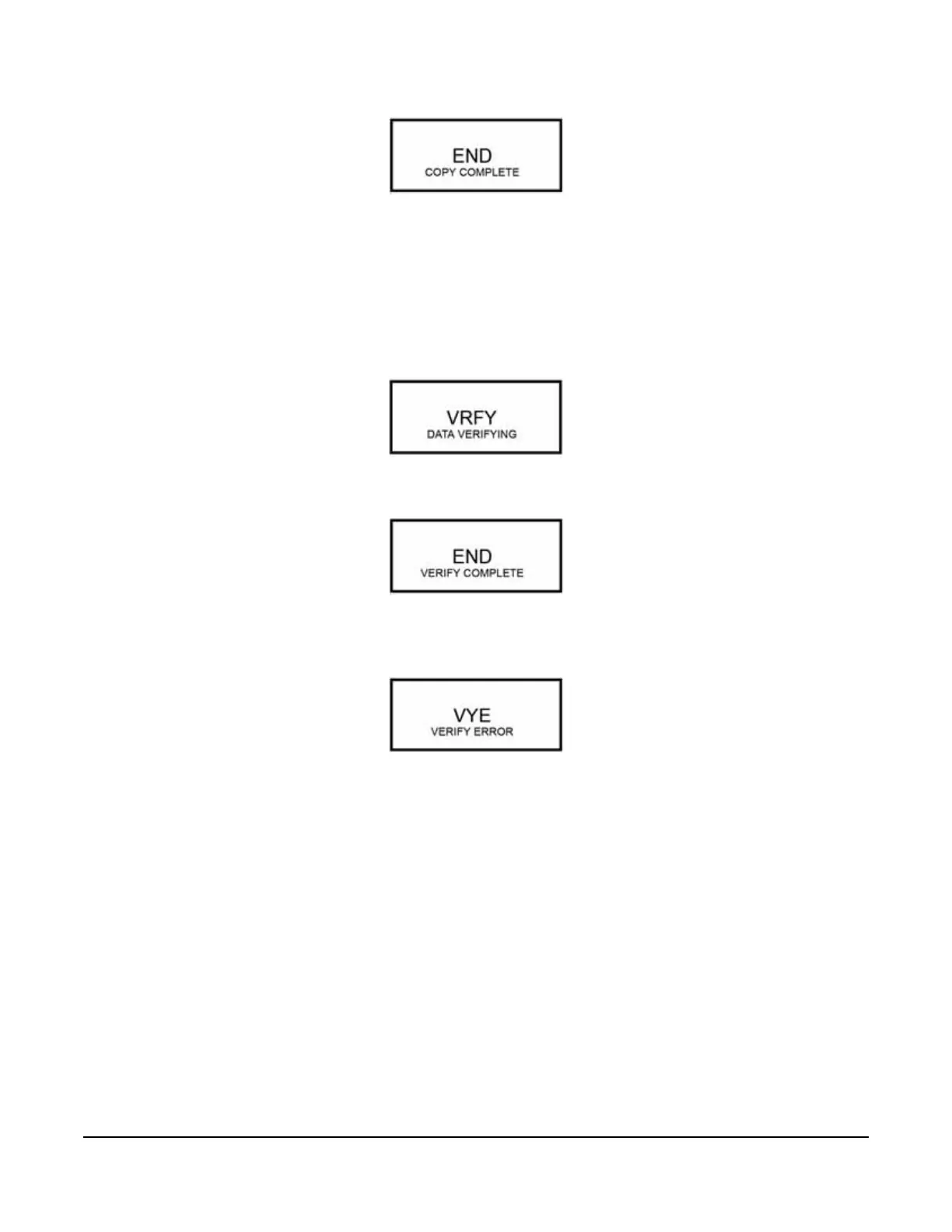

A successful COPY of the parameter values will display:

An error may occur while writing the parameter values to the VFD. If an error is displayed, press any key to return

to parameter O04-01. Error displays and their meanings are covered in Section 6.5.1 on page 222.

It is possible to compare the parameter values stored in the

keypad

with the parameter values currently in the VFD

by using the VERIFY function. This VERIFY function should not be confused with the “-VERIFY-” that is displayed

on the

keypad

when viewing the “Modified Parameters” menu. To VERIFY the parameter values in the VFD as

compared with those stored in the

keypad

, set O04-01 = 3 (OP ↔ INV VERIFY). During the comparison, the

keypad

will display:

A successful VERIFY of the parameter values will display:

If the parameters stored in the

keypad

do not match those programmed in the VFD, the

keypad

displays the

following:

The

keypad

will not display which parameters did not match, only that the verification found discrepancies in some

parameter values.

NOTE: In order to properly use the COPY or VERIFY functions, the following VFD information must be identical

between the VFD that the parameters were read from and the VFD that the parameters are written to:

Model Number (e.g., 5001-G+S4)

Firmware Version (e.g., 14707)

Control Method (e.g., A01-02)

Motion (e.g., A01-03)

NOTE: See Section 6.5 on page 222 for additional copy function troubleshooting.
