5.4.2 Motor Setup
The E02 parameter group defines the motor characteristics. Normally, the default settings for E02 parameters are
determined by kVA selection (O02-04). In flux vector and open loop vector, the E02 parameters will be set
automatically during auto-tuning. At minimum, the motor rated current should be entered into E02-01.
If rotational auto-tuning cannot be performed, E02-02 and E02-05 can be calculated using the motor’s nameplate
information or by performing non-rotational auto-tuning.

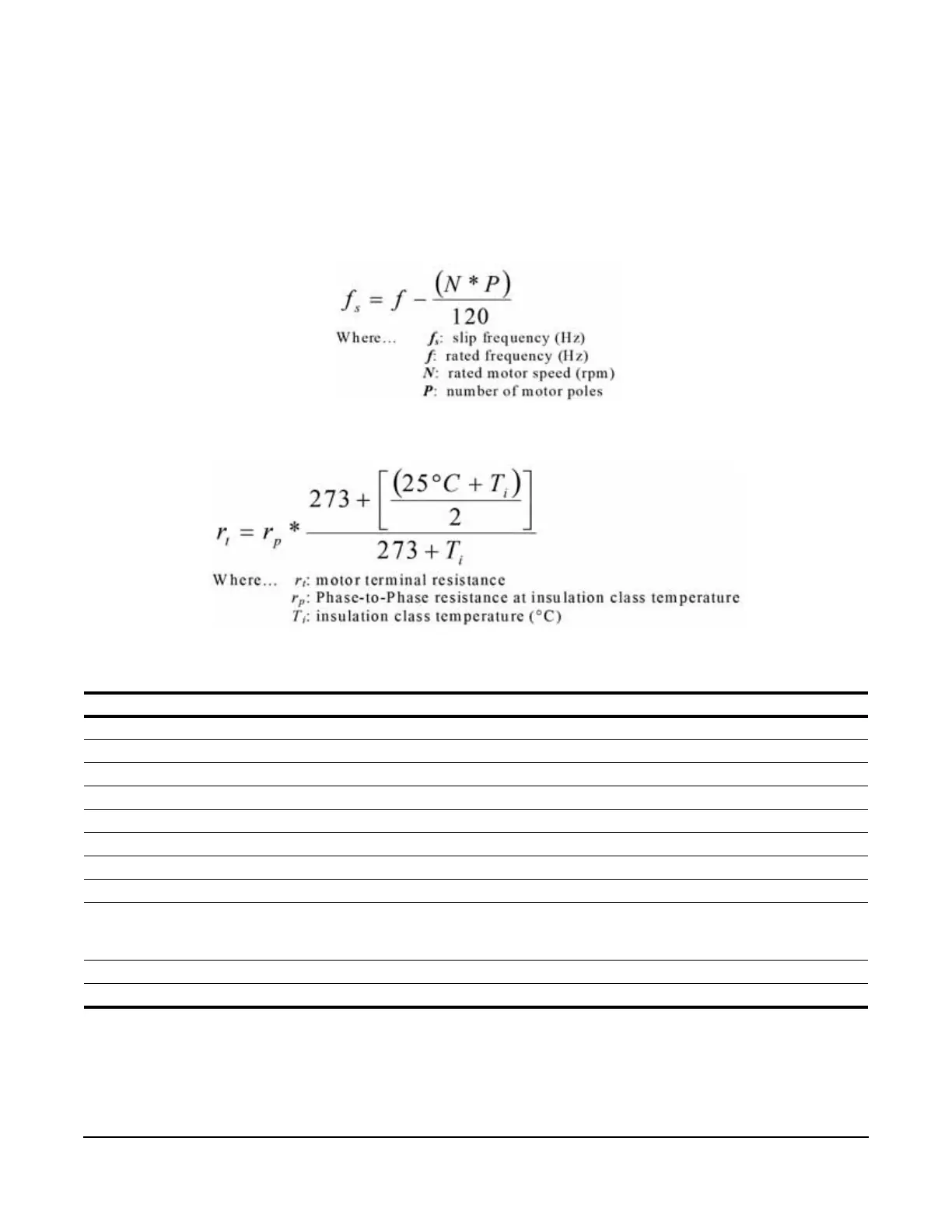

Motor rated slip frequency (E02-02) can be calculated by using the following equation:
Motor terminal resistance E02-05 can be calculated by using the following equation:
Table 5-60: Motor Setup Parameter Settings
* Initial value is determined by O02-04 (kVA Selection) and D10-01.
** This value is automatically set during auto tuning.
Parameter Display Function Range Default
E02-01 Motor Rated FLA Motor-rated current * *
E02-02** Motor Rated Slip Motor-rated slip frequency 0.00–20.00 Hz *
E02-03** No-Load Current Motor no-load current 0–[(E02-01)-1] *
E02-04 Number of Poles Number of poles in motor 2–48 4
E02-05** Term Resistance Motor terminal resistance 0.000–65.000 Ω *
E02-06** Leak Inductance Leakage Inductance 0.0–40.0% *
E02-07** Saturation Comp 1 Core-Saturation Compensation Coefficient 1 0.00–0.50 0.50
E02-08** Saturation Comp 2 Core-Saturation Compensation Coefficient 2 E02-07–0.75 0.75
E02-09** Mechanical Loss Sets the motor mechanical loss as a
percentage of motor rated power (HP) for the
motor.
0.0–10.0% 0.0
E02-10** Motor Iron Loss Sets the motor iron loss in Watts for the motor. 0–65535 W *
E02-11 Rated Power Rated output 0.0–650.0 HP/kW *
