IMPULSE
®
•G+ & VG+ Series 4 Technical Manual
November 2020
Page 137
5.5 Option Card Parameters
F01 Encoder Feedback (PG-X3) Option Card Setup
F02 Analog Input (AI-A3) Option Card Setup
F04 Analog Output (AO-A3) Option Card Setup
F05 Digital Output (DO-A3 or S4IO) Option Card Setup
F06 Profibus-DP (SI-P3) Option Card Setup
F07 Ethernet/IP (SI-EN3) and Modbus TCP/IP (SI-EM3) Option Card Setup
NOTE: See the C09 parameter group for DI-A3, and additional S4I/S4IO setup.
5.5.1 Encoder Feedback (PG-X3) Option Card Setup
Table 5-62: PG-X3 Parameters (VG+ Only)
Parameter Display Function Range Default
F01-01 PG1 Pulses/Rev Sets the PPR for the encoder connected to the PG-X3
card seated in port CN5-C.
0–60000 ppr 1024
F01-02 PG1 Rotation Sel Changing this parameter has the same effect as
swapping A+ and A- encoder wires.
0, 1 0
0 Fwd = C.C.W.
1 Fwd = C.W.

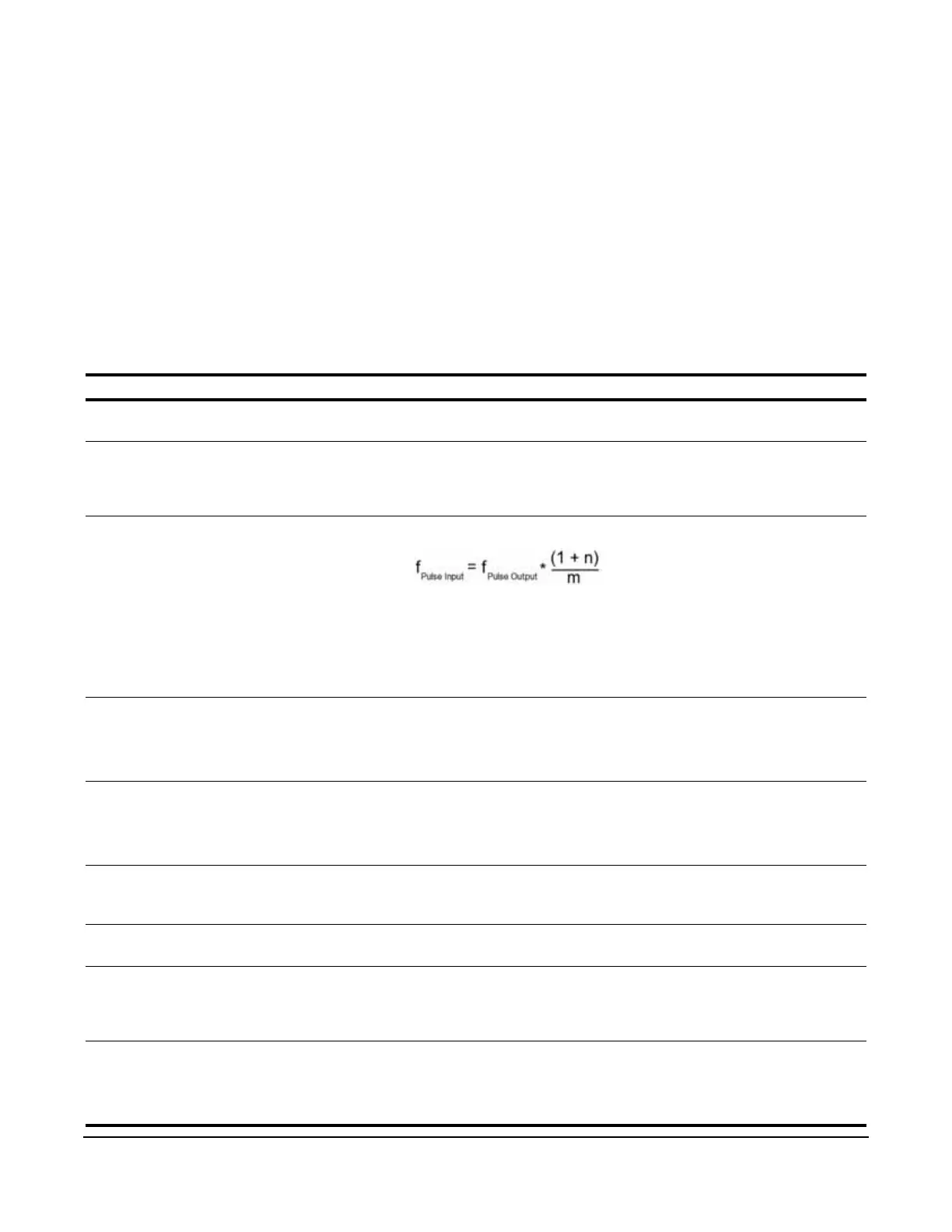

F01-03 PG1 Output Ratio Sets the division ratio for the pulse monitor.
Example: For a ratio of 1/32 between the PG card
pulse input and output, set F01-03 = 032 (where n = 0
and m = 32).
If only using the A pulse for one-track input, the input
ratio will be 1:1 regardless of F01-03 setting.
1–132 1
F01-04 PG1 #Gear Teeth1 Sets the gear ratio between the motor shaft and the
encoder (PG).
A gear ratio of 1 will be used if F01-04 or F01-05 are
set to 0.
0–1000 0
F01-05 PG1 #Gear Teeth2 Sets the gear ratio between the motor shaft and the
encoder (PG).
A gear ratio of 1 will be used if F01-04 or F01-05 are
set to 0.
0–1000 0
F01-06 PGO-1-H Delay time for PGO-1-H detection. A setting of 0
disables PGO-1-H detection. Channel 1 is associated
with slot CN5-C.
0–100 ms 15
F01-11 PG2 Pulses/Rev Sets the PPR for the encoder connected to the PG-X3
card seated in port CN5-B.
0–60000 ppr 1024
F01-12 PG2 Rotation Sel Changing this parameter has the same effect as
swapping A+ and A- encoder wires.
0, 1 0
0 Fwd = C.C.W.
1 Fwd = C.W
F01-13 PG2 #Gear Teeth1 Sets the gear ratio between the motor shaft and the
encoder (PG).
A gear ratio of 1 will be used if F01-13 or F01-14 are
set to 0.
0–1000 0
