5.1.12 Acceleration/Deceleration
Acceleration time sets the time necessary for the output frequency to accelerate from 0 Hz to maximum output
frequency (E01-04). Deceleration time sets the time necessary for the output frequency to decelerate from the
maximum output frequency (E01-04) to 0 Hz.
Table 5-10: Acceleration/Deceleration Parameter Settings
* Initial value is determined by X-Press Programming (Table 4-6 on page 59, Table 4-7 on page 60 or Table 4-8 on page 61).
** Range is extended to 0.0–6000.00 when B05-16 = 1.

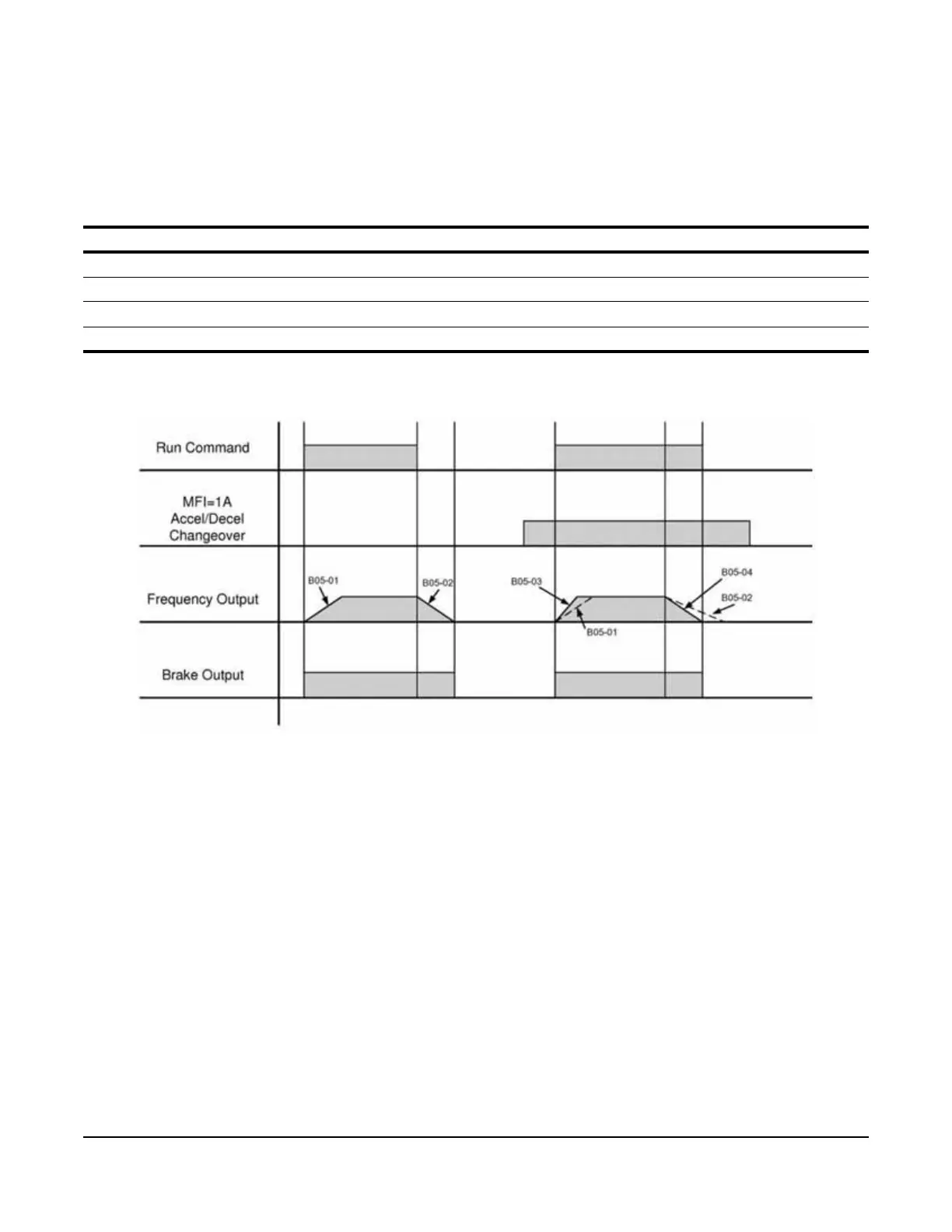

Figure 5-5: Normal Accel/Decel Time and Multiple Accel/Decel Changeover
NOTE: Assume B03-03 is set to “0” (Decel to Stop).
Parameter Display Function Range Default
B05-01 Accel Time 1 Sets acceleration time 0.0–25.5 sec** 5.0*
B05-02 Decel Time 1 Sets deceleration time. 0.0–25.5 sec** 3.0*
B05-03 Accel Time 2 Acceleration time 2 enabled when H01-xx = 1A. 0.0–25.5 sec** 10.0
B05-04 Decel Time 2 Deceleration time 2 enabled when H01-xx = 1A. 0.0–25.5 sec** 10.0
