Magnetek IMPULSE G+ 4 Series User Manual

IMPULSE
®
•G+ & VG+ Series 4 Technical Manual
November 2020
Page 79
5.1.14 Jump Frequencies
This function allows the “jumping” of critical frequencies so that the motor can operate without resonant vibrations
caused by some machine systems. This function is also used for deadband control. Setting the value to 0.0 Hz
disables this function.
Table 5-12: Jump Frequencies Parameter Settings

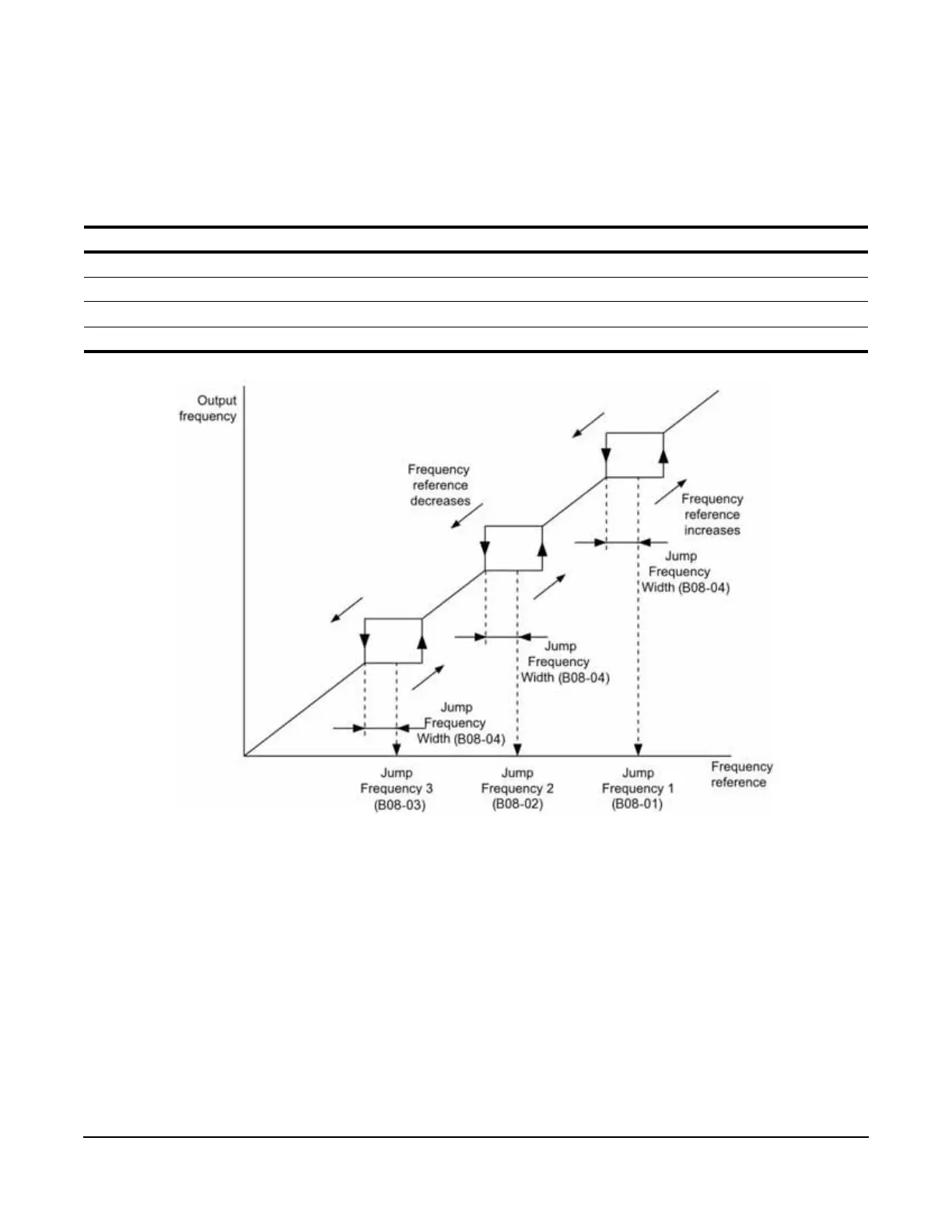

Figure 5-6: Jump Frequencies
Parameter Display Function Range Default
B08-01 Jump Freq 1 First of three jump frequencies 0.0–150.0 Hz 0.0
B08-02 Jump Freq 2 Second of three jump frequencies 0.0–150.0 Hz 0.0
B08-03 Jump Freq 3 Third of three jump frequencies 0.0–150.0 Hz 0.0
B08-04 Jump Bandwidth Jump frequency reference bandwidth 0.0–20.0 Hz 1.0
