5.1.6 Coast to Stop (B03-03=1)
Upon removal of the FWD or REV run command, the motor starts to coast and the electric brake sets.

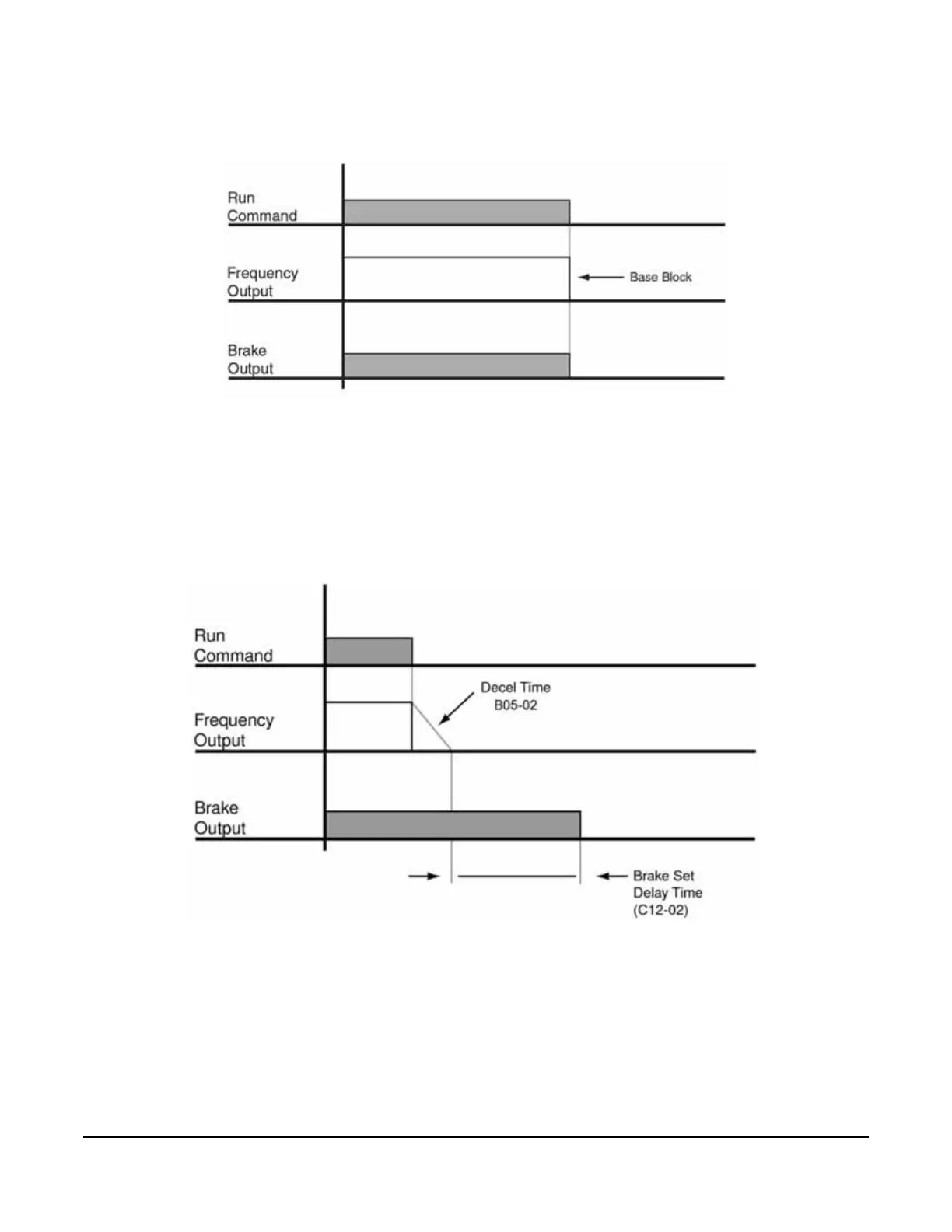

Figure 5-3: Coast to Stop
5.1.7 Decel w/Timer (B03-03=4)
NOTE: This option is only available in traverse motion.
Upon run command removal, the motor decelerates to stop. The brake delays for a time interval (C12-02) before it
is set. This option reduces brake wear for applications that involve frequent stopping and starting.
Figure 5-4: Decel w/Timer
