3.2.5 Insulation Barrier
Insulation barriers are packaged with VFD models 4370 through 41090 to provide added protection between
terminals. Magnetek recommends using the provided insulation barriers to ensure proper wiring. See Figure 3-11
for instructions on placement of the insulation barriers.

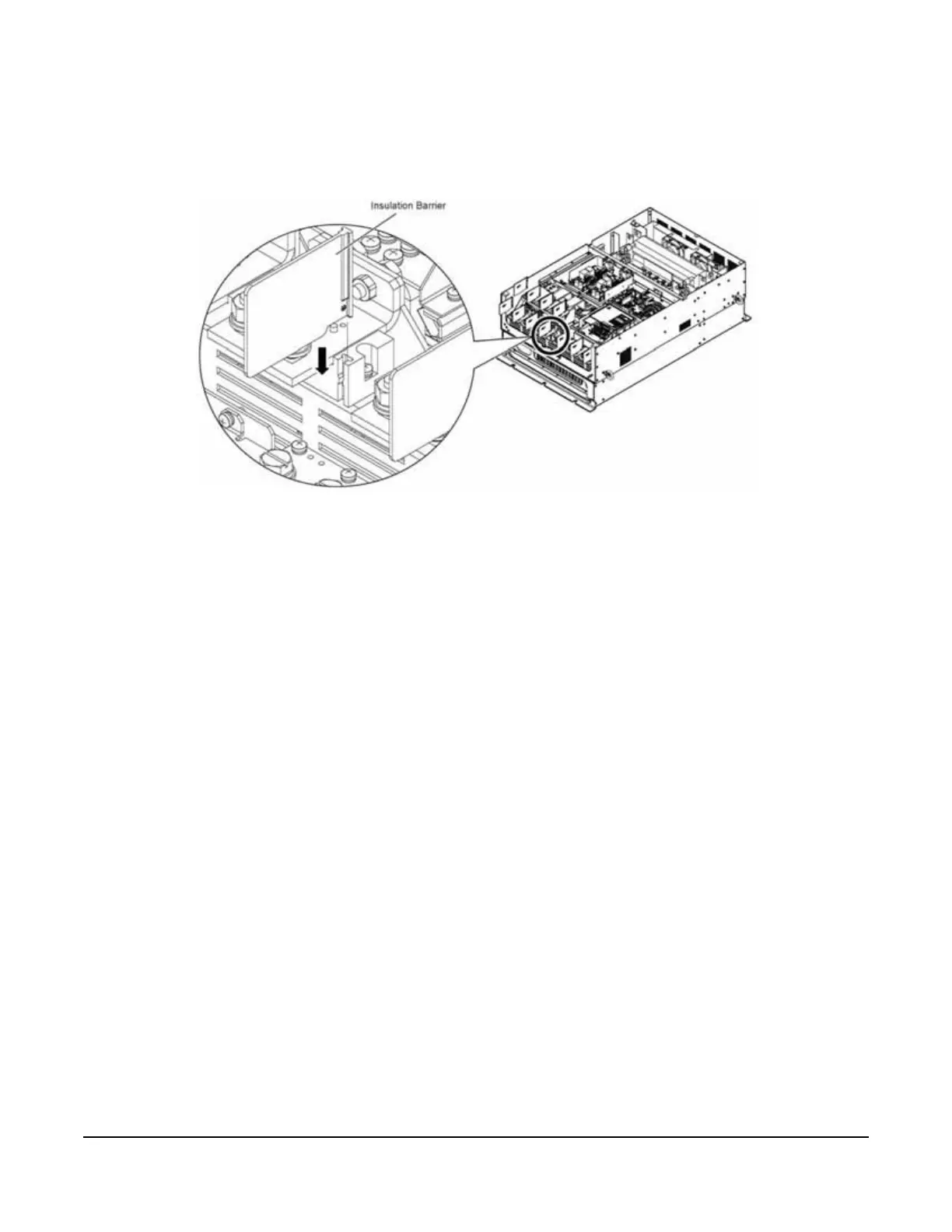

Figure 3-11: Installing Insulation Barriers
