5.1.4 Stop Method
B03-03 selects the stopping method suitable for the particular application.
Table 5-5: Stop Method Parameter Settings
* Initial value is determined by X-Press Programming (Table 4-6 on page 59, Table 4-7 on page 60 or Table 4-8 on page 61).
5.1.5 Decel to Stop (B03-03=0)
Upon removal of the FWD or REV run command, the motor decelerates at a rate determined by the time set in
deceleration time 1 (B05-02) and DC injection braking is applied after the DC injection start frequency D01-01 has
been reached. If the deceleration time is set too short or the load inertia is too large, an overvoltage fault (OV) or
deviation (DEV) may occur during deceleration. In this case, increase the deceleration time or install an optional
braking transistor and/or braking resistor.

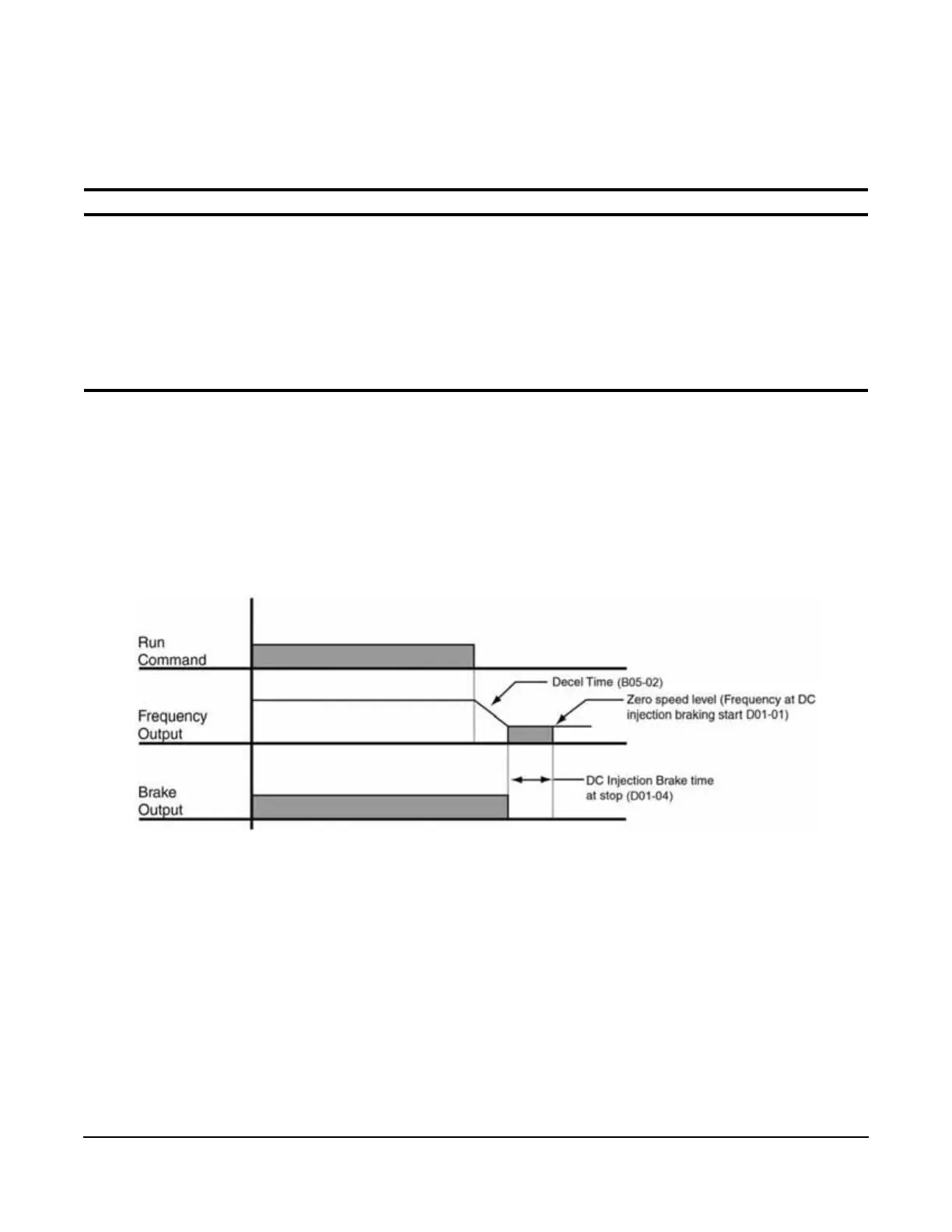

Figure 5-2: Decel to Stop
Parameter Display Function Range Default
B03-03 Stopping Method Determines stop method. 0, 1, 4, 6 G+: 0*
VG+: 6*
0 Decel to Stop (Figure 5-2)
1 Coast to Stop (Figure 5-3)
4 Decel with timer
(Traverse mode only)
(Figure 5-4)
6 No Load Brake See No-Load Brake Parameter Group C08
(VG+ only).
To Next Page
