IMPULSE
®
•G+ & VG+ Series 4 Technical Manual
November 2020
Page 37
3.2.2

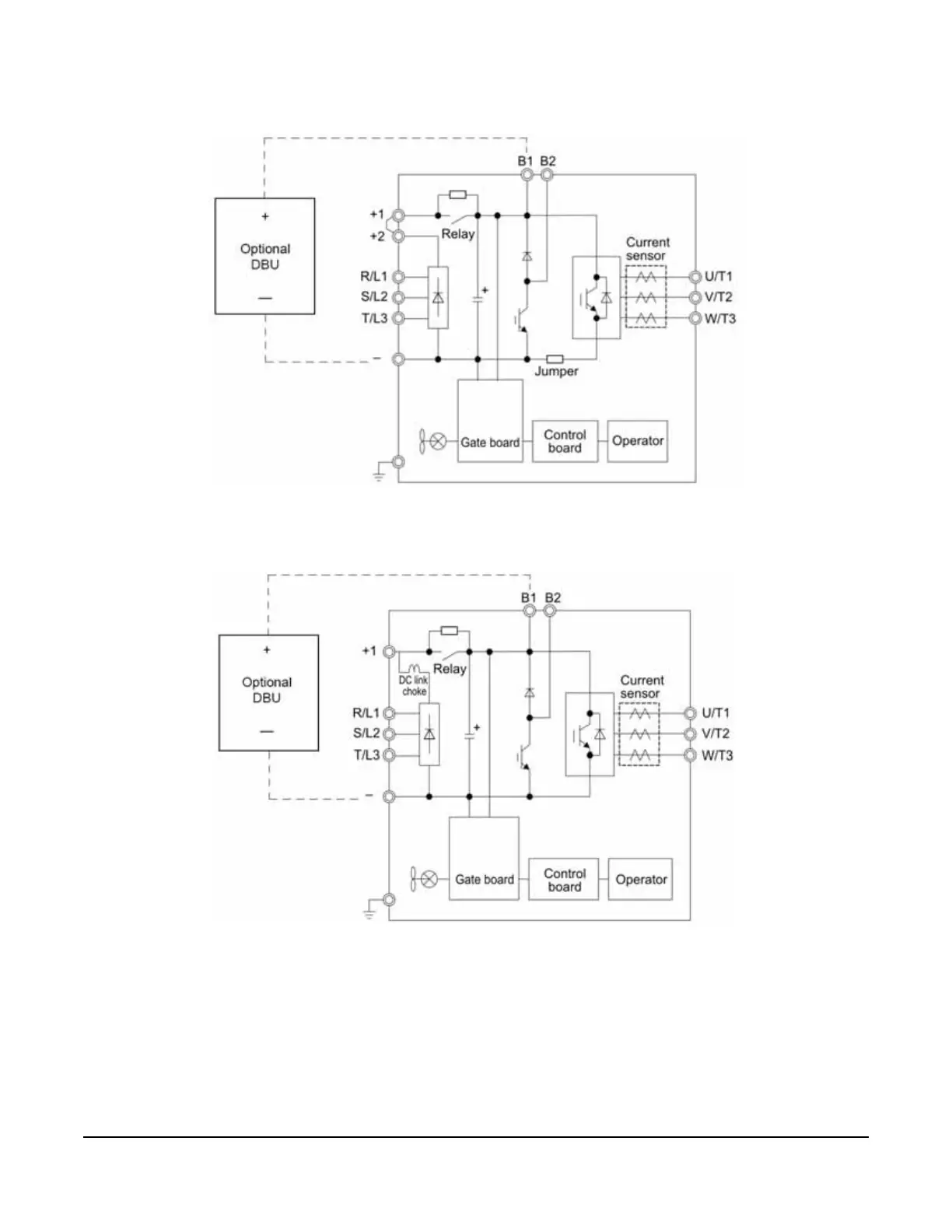

Main Circuit Connection Diagram
Figure 3-2: Connecting Main Cir
cuit
T
e
rminals (2003 to 2075, 4001 to 4039, 5001 to 5027)
Figure 3-3: Connecting Main Cir
cuit
T
erminals (2085 and 21
15, 4045 and 4060,
5032 and 5041)
36
38
