IMPULSE
®
•G+ & VG+ Series 4 Technical Manual
November 2020
Page 38

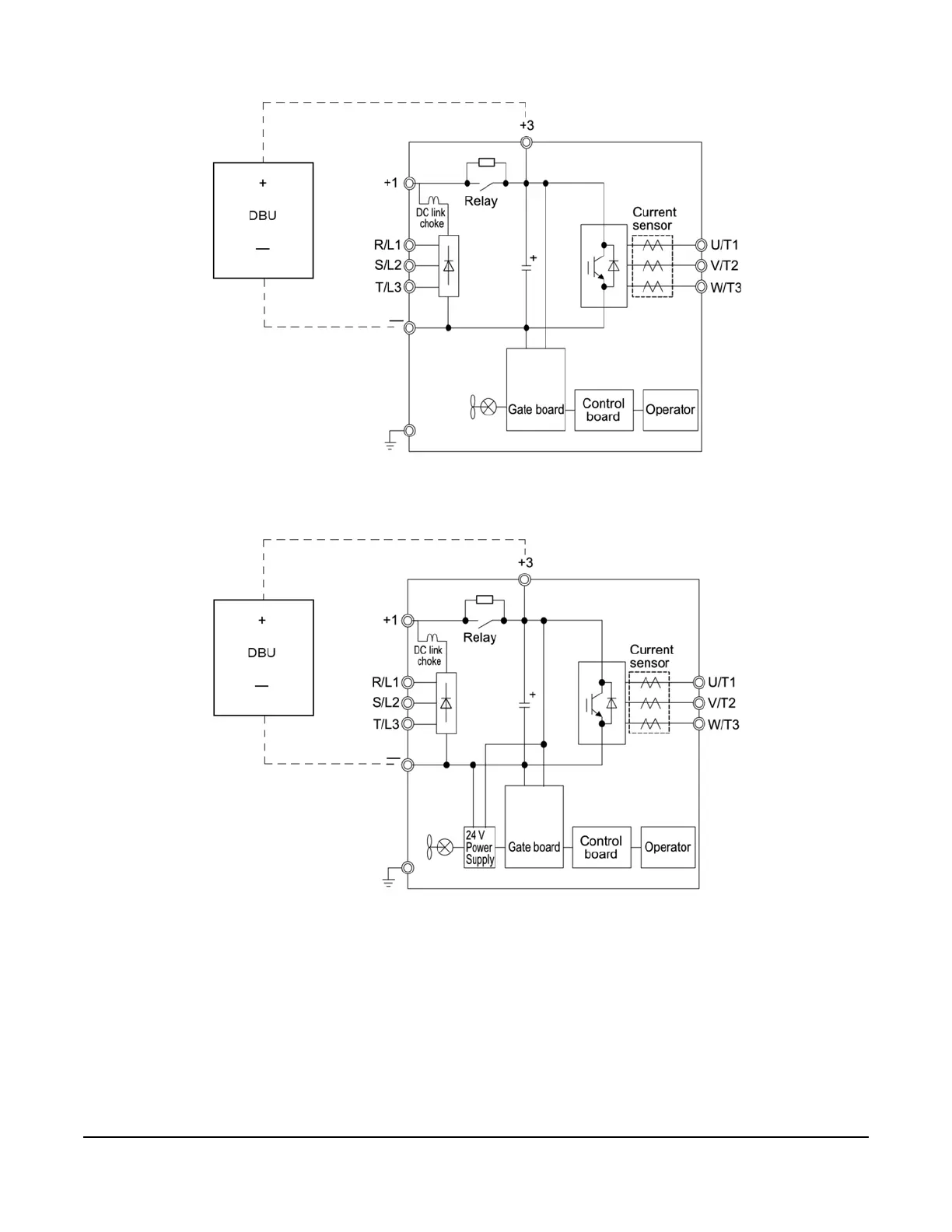

Figure 3-4: Connecting Main Circuit Terminals (2145 to 2180, 4075 to 4112, 5052 to 5077)
Figure 3-5: Connecting Main Circuit Terminals (2215 to 2415, 4150 to 4605, 5099 to 5200)
