IMPULSE
®
•G+ & VG+ Series 4 Technical Manual
November 2020
Page 126
5.3.7 S-Curve Acceleration/Deceleration
An S-Curve pattern is used to reduce shock and provide smooth transitions during machine acceleration and
deceleration. S-Curve characteristic time is the time from the output frequency to the set accel/decel time.
See S-Curve Characteristic timing diagrams below and on the following page.
Table 5-51: S-Curve Acceleration/Deceleration Parameter Settings
* Initial value is determined by X-Press Programming (Table 4-6 on page 59, Table 4-7 on page 60 or Table 4-8 on page 61).
The figure below shows FWD/REV run switching during deceleration to stop. The S-curve function will add time to
the acceleration and deceleration. Time to accelerate from the minimum frequency to the maximum frequency
(total acceleration) is:
Time to decelerate from the maximum frequency to the minimum frequency (total deceleration) is:

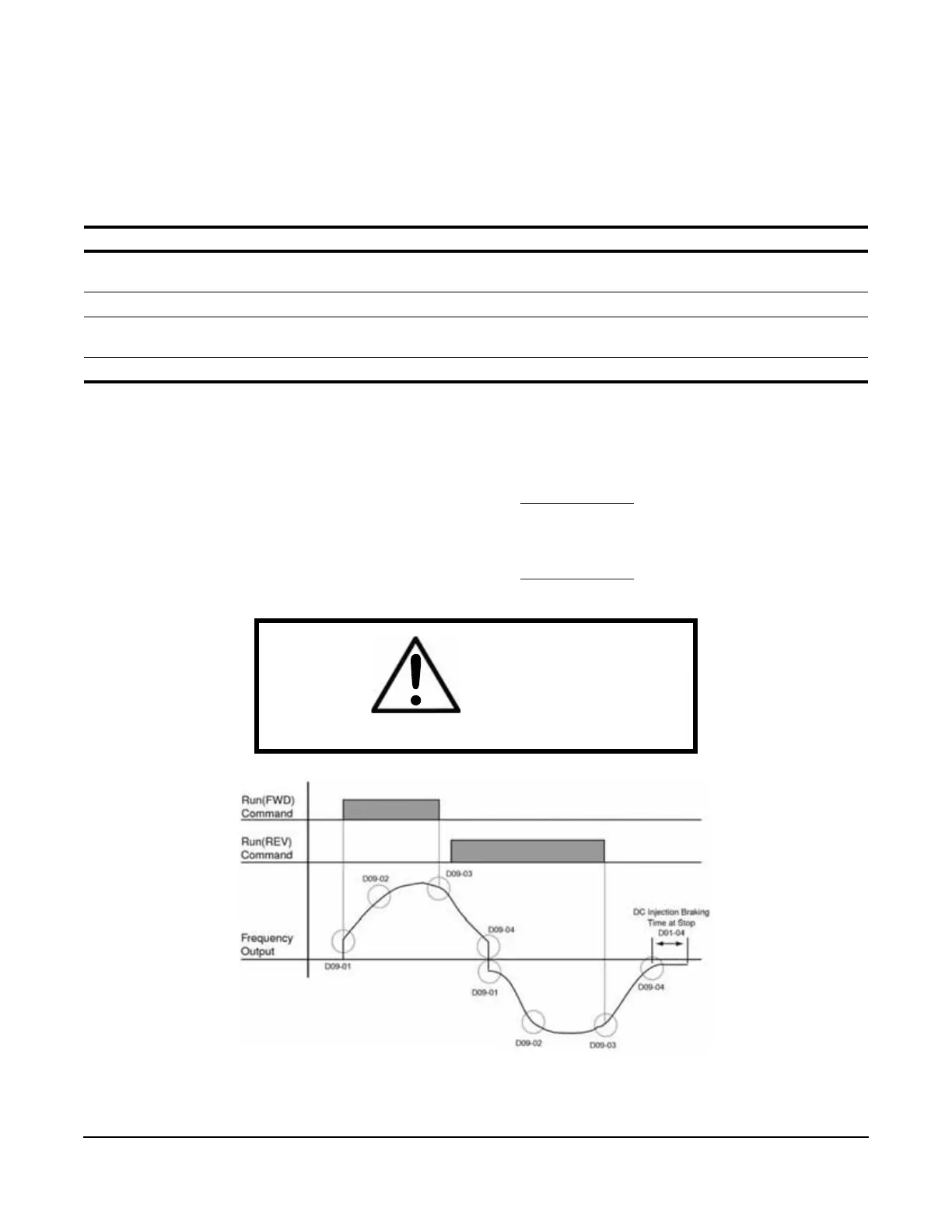

Figure 5-23: S-Curve Characteristic-FWD/REV Operation
Parameter Display Function Range Default
D09-01 SCrv Acc @ Start Sets the S-Curve at the beginning of the Accel
time.
0.00–10.00 sec 0.20*
D09-02 SCrv Acc @ End Sets the S-Curve at the end of the Accel time. 0.00–10.00 sec 0.20*
D09-03 SCrv Dec @ Start Sets the S-Curve at the beginning of the
Decel time.
0.00–10.00 sec 0.20*
D09-04 SCrv Dec @ End Sets the S-Curve at the end of the Decel time. 0.00–10.00 sec 0.20
Total Acceleration
=
B05-01 +
D09-01 + D09-02
2
Total Deceleration
=
B05-02 +
D09-03 + D09-04
2
CAUTION
Accel/Decel times will be extended.
