2.6 Installing the VFD (Side-by-Side)
Models 2003 to 2075, 4001 to 4039, and 5001 to 5027 can take advantage of Side-by-Side installation.
It is recommended to set parameter L08-35 = 1 when mounting VFDs in a side-by-side configuration. This provides
a more conservative OL2 overload protection.

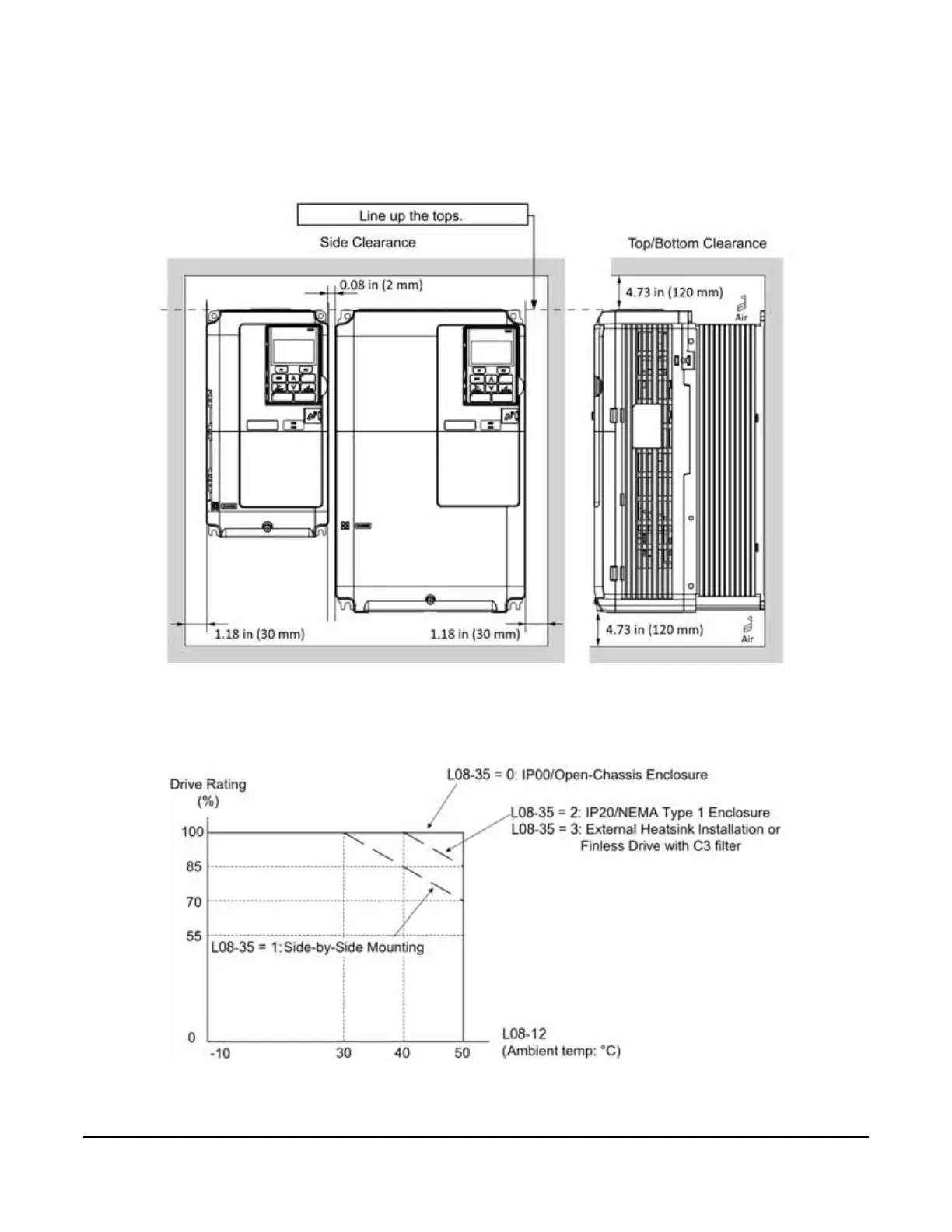

Figure 2-4: Side-by-Side Installation
Figure 2-5: Ambient Temperature and Installation Method Derating
