5.9 Monitor Parameters
• U01 Monitor
• U02 Fault Trace
• U03 Fault History
• U04 Maintenance
• U06 Control Monitor

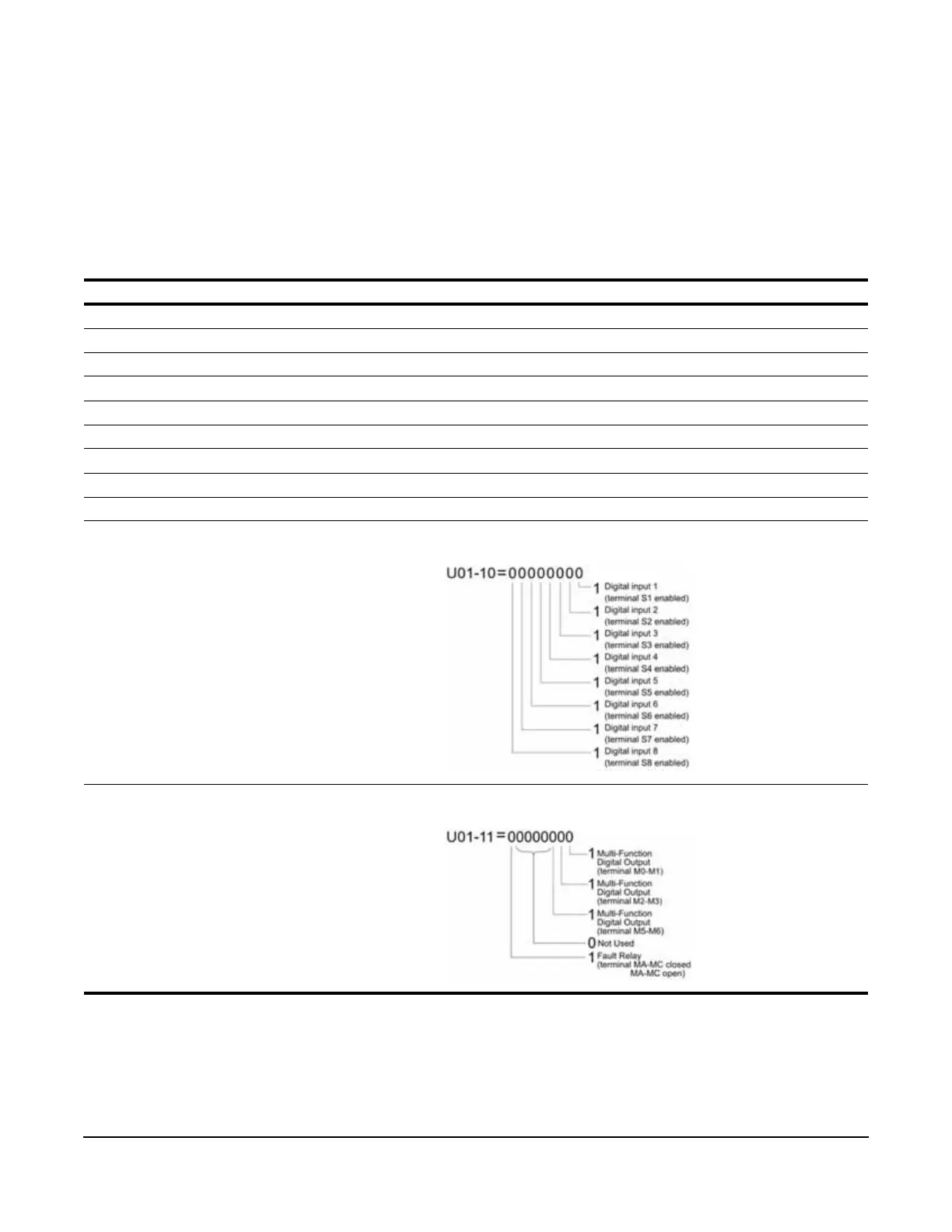

Table 5-110: Monitor Parameters
Parameter Display Function Units
U01-01 Frequency Ref Frequency Reference Hz
U01-02 Output Freq Output Frequency Hz
U01-03 Output Current Output Current A
U01-04 Control Method Displays the value of A01-02 -
U01-05 Motor Speed Motor Speed Hz
U01-06 Output Voltage Output Voltage (Reference) VAC
U01-07 DC Bus Voltage DC Bus Voltage (Measured) VDC
U01-08 Output Power Output Power (Calculated) HP/kW
U01-09 Torque Reference Torque Reference (Internal) %
U01-10 Input Term Sts Input Terminal Status -
U01-11 Output Term Sts Output Terminal Status -
