IMPULSE
®
•G+ & VG+ Series 4 Technical Manual
November 2020
Page 32
<1> Set L08-55 to 0 when using an external dynamic braking option (CDBR).

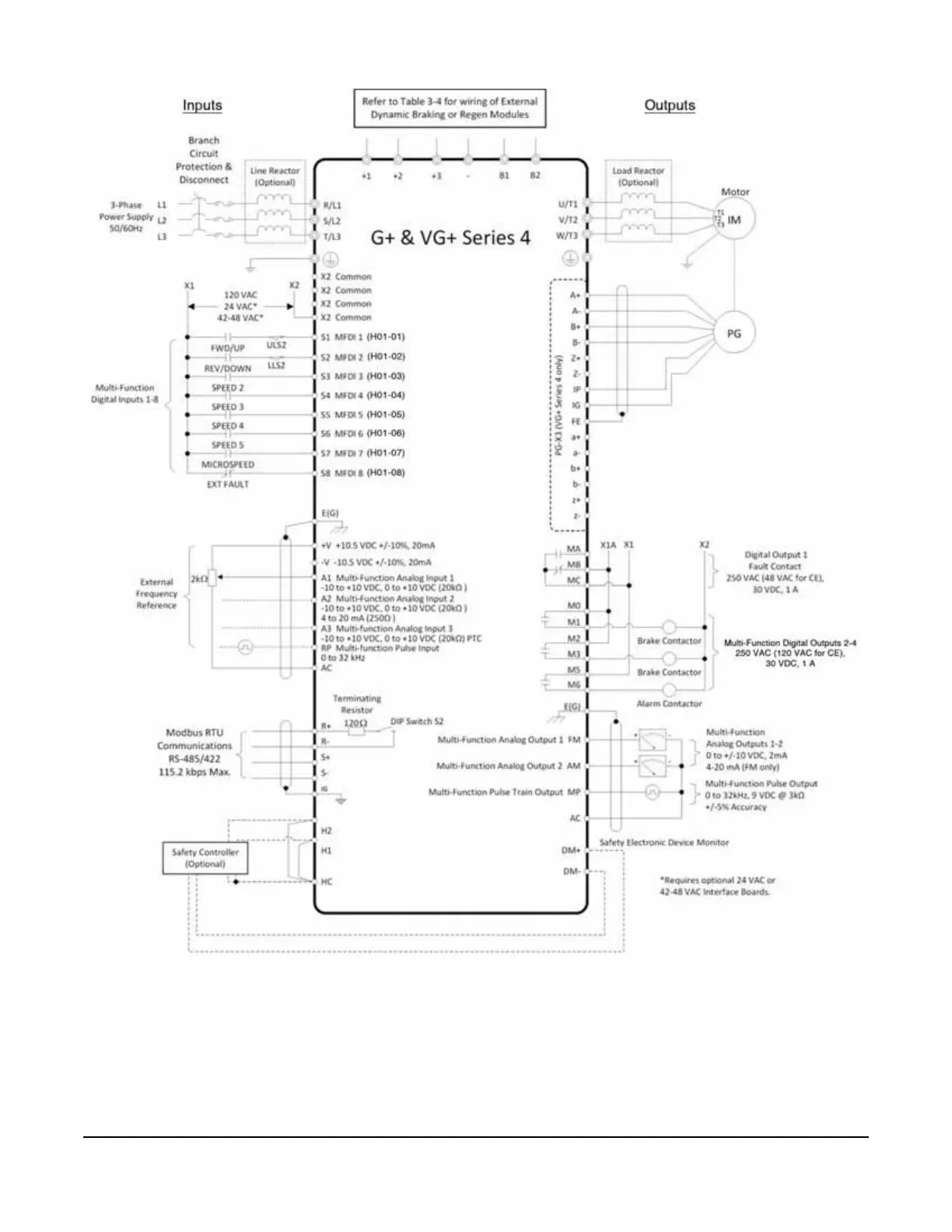

Figure 3-1: IMPULSE
®
•G+ & VG+ Series 4 Typical Connection Diagram
