IMPULSE
®
•G+ & VG+ Series 4 Technical Manual
November 2020
Page 41
<1> Terminal block design differs slightly for models 2215 to 2415, 4180 to 4304, and 5099 to 5200.

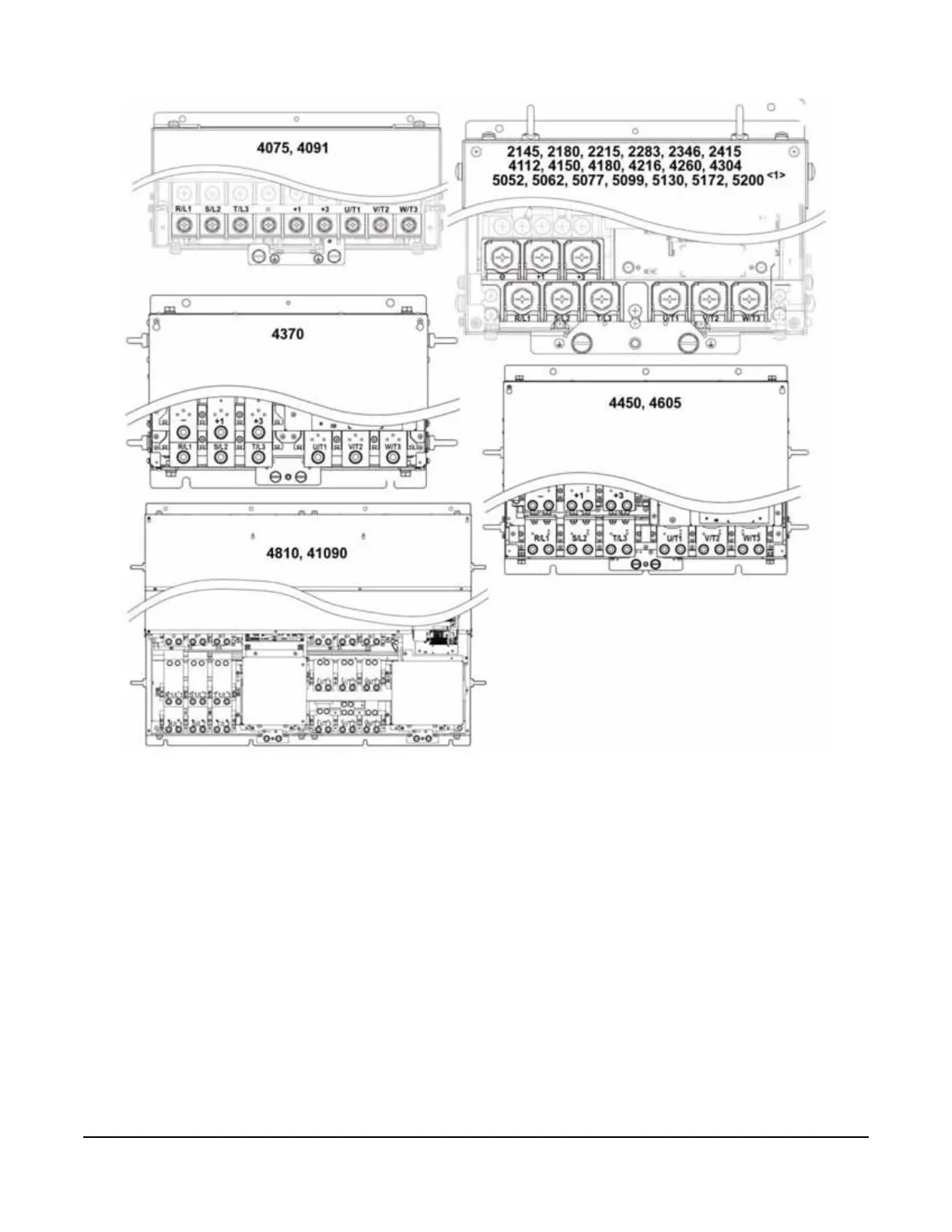

Figure 3-8: Main Circuit Terminal Block Configuration (continued)
