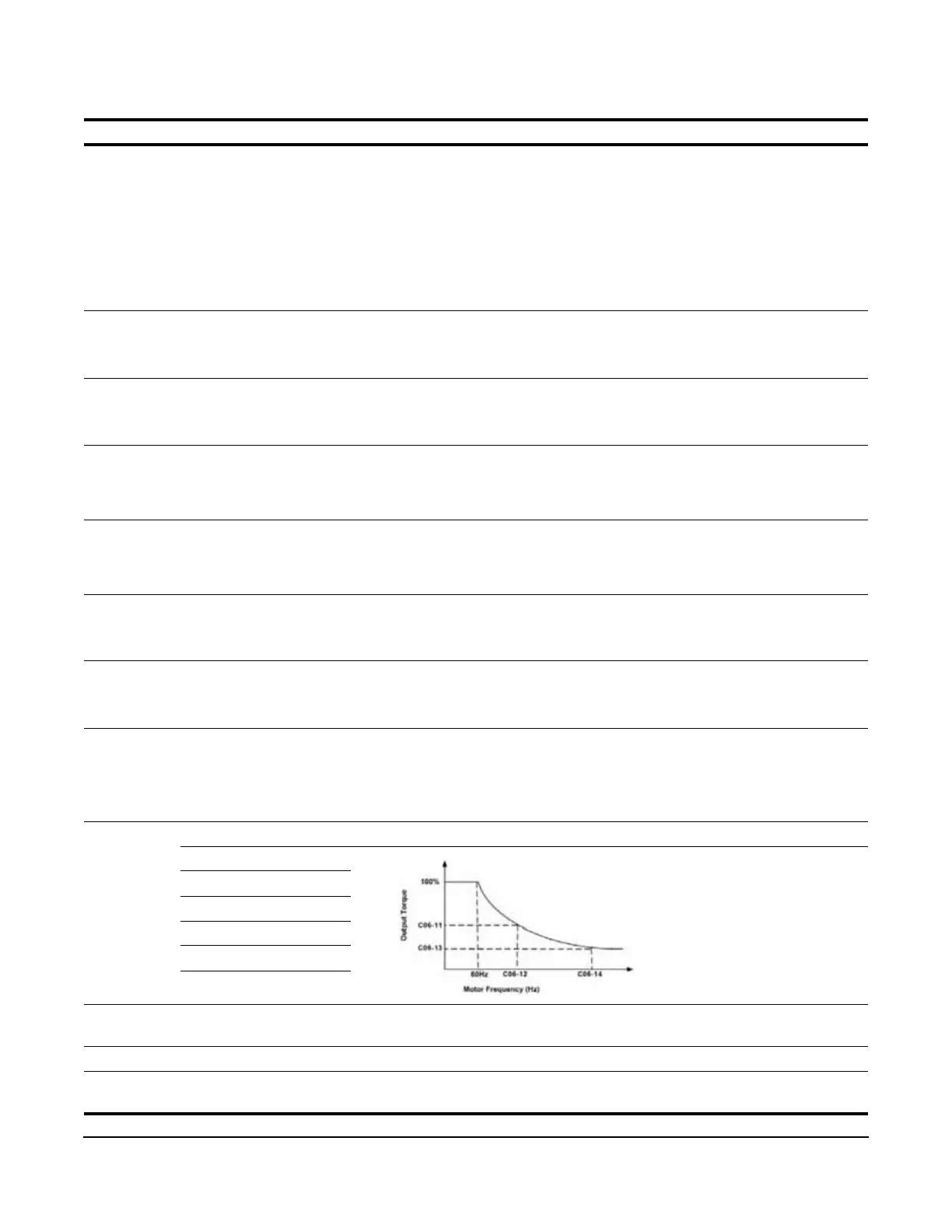

Table 5-29: Swift-Lift/Ultra-Lift Parameter Settings
Parameter Display Function Range Default
C06-01 Swift-Lift (V/f and OLV)
Ultra-Lift (FLV)
Determines whether Swift-Lift/Ultra-Lift is
enabled.
0–4 0
0 Disabled
1 Enabled Auto
2 Enabled by MFDI
3 Enabled Adaptive Flux Vector NLB only
4 Adaptive by MFDI Flux Vector NLB only
C06-02 SwiftLift FWDSpd (V/f
and OLV)
UltraLift FWDSpd (FLV)
Maximum Swift-Lift Forward Speed 0.1–150.0 Hz 60.0
C06-03 SwiftLift REVSpd (V/f and
OLV)
UltraLift REVSpd (FLV)
Maximum Swift-Lift Reverse Speed 0.1–150.0 Hz 60.0
C06-04 SL FWD Current (V/f)
SL FWD Torque (OLV)
UL FWD Torque (FLV)
Output Current/Torque < C06-04 to enable
Swift-Lift Forward. Not used with Adaptive UL.
0–100% 50
C06-05 SL REV Current (V/f)
SL REV Torque (OLV)
UL REV Torque (FLV)
Output Current/Torque < C06-05 to enable
Swift-Lift Reverse. Not used with Adaptive UL.
0–100% 30
C06-06 SL Enabling Spd (V/f and
OLV)
UL Enabling Spd (FLV)
Fout > C06-06 to Enable Swift-Lift. (Threshold
Speed)
0.1–150.0 Hz 59.0
C06-07 SL Delay Time (V/f and
OLV)
UL Delay Time (FLV)
Delay time at Enabling speed to check Output
Torque
0.0–25.5 sec 2.0
C06-08 SFS Acc Gain Swift-Lift acceleration multiplier for V/f Modes.
Settings greater than 1 increase the
acceleration time proportionately; settings less
than 1 decrease the acceleration time
proportionately
0.1–9.9 1.0
C06-10 Mtr Trq Quickset Set available motor torque over base speed. 0–5 3
0 Custom
1 Very Low Torque
2 Low Torque
3 Standard
4 High Torque
5 Very High Torque
C06-11 Motor Torque 1 Sets the available torque at Speed 1 (above
base speed)
1–100% 45
C06-12 Motor Speed 1 Sets the Speed 1 point 100–300% 150
C06-13 Motor Torque 2 Sets the available torque at Speed 2 (above
base speed)
1–100% 25
