McHale Fusion 2 drive systems section
13-5
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208

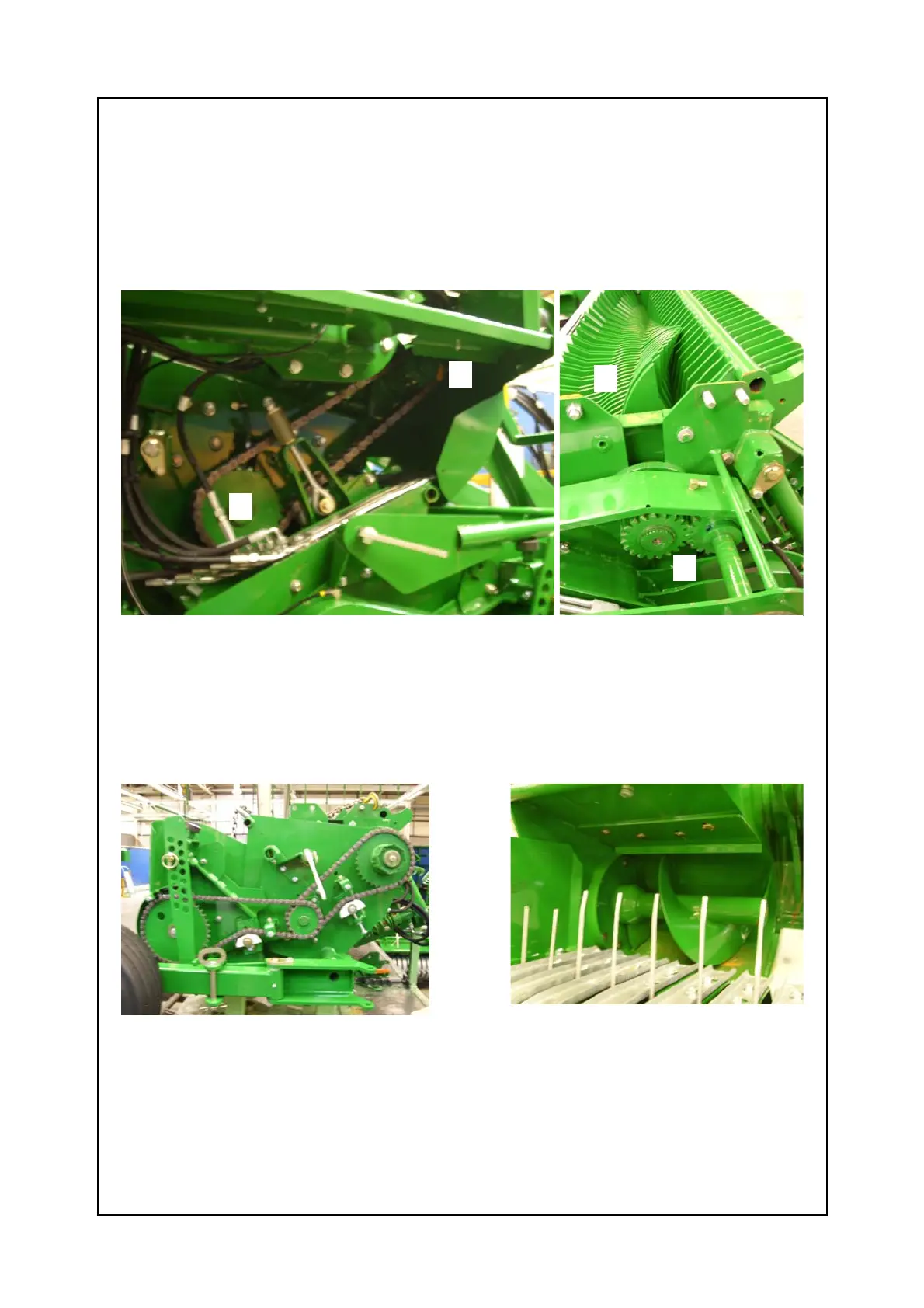

Fig. 2 Fig. 3
The drive from the gearbox (C ) to the sprocket (D) The drive taken through
on the end of the rotor. Rotor (E) to the spur
gears (F).
C
D
E
F
13.3: Chopper/pick-up drive
The Rotor is driven off the Gearbox and takes the drive through its shaft to the 2
spur gears which connect to the pick-up protection slip clutch. The chain off this
drives the Auger and pick up centre shaft which drives the auger on the Auger
side.
Fig 3 .
Fig 4.
