McHale Fusion 2 drive systems section
13-7
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208

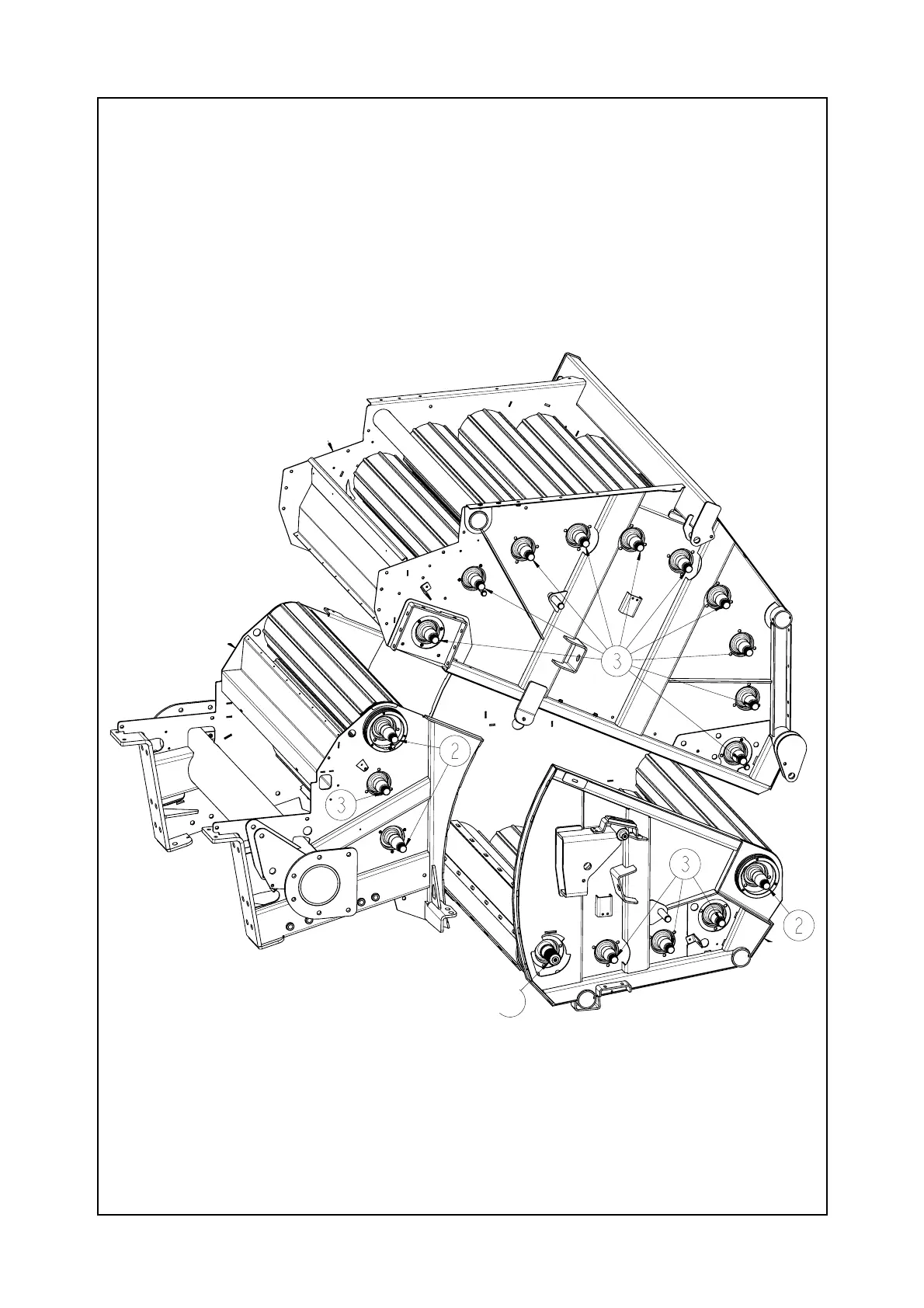

13.5 Roller locations
There are 18 rollers in the chamber. Roller no. 1 below is the intake roller and is
the only one of its kind. It is a heavy duty roller with a splined shaft.
The rollers marked no. 2 are long shaft. They carry a double sprocket on a tapered
shaft to transfer drive from one section of the chamber to another. There are 3 of
these rollers.
The short shaft roller marked no. 3 of which there are 14 in the chamber carry a
1
