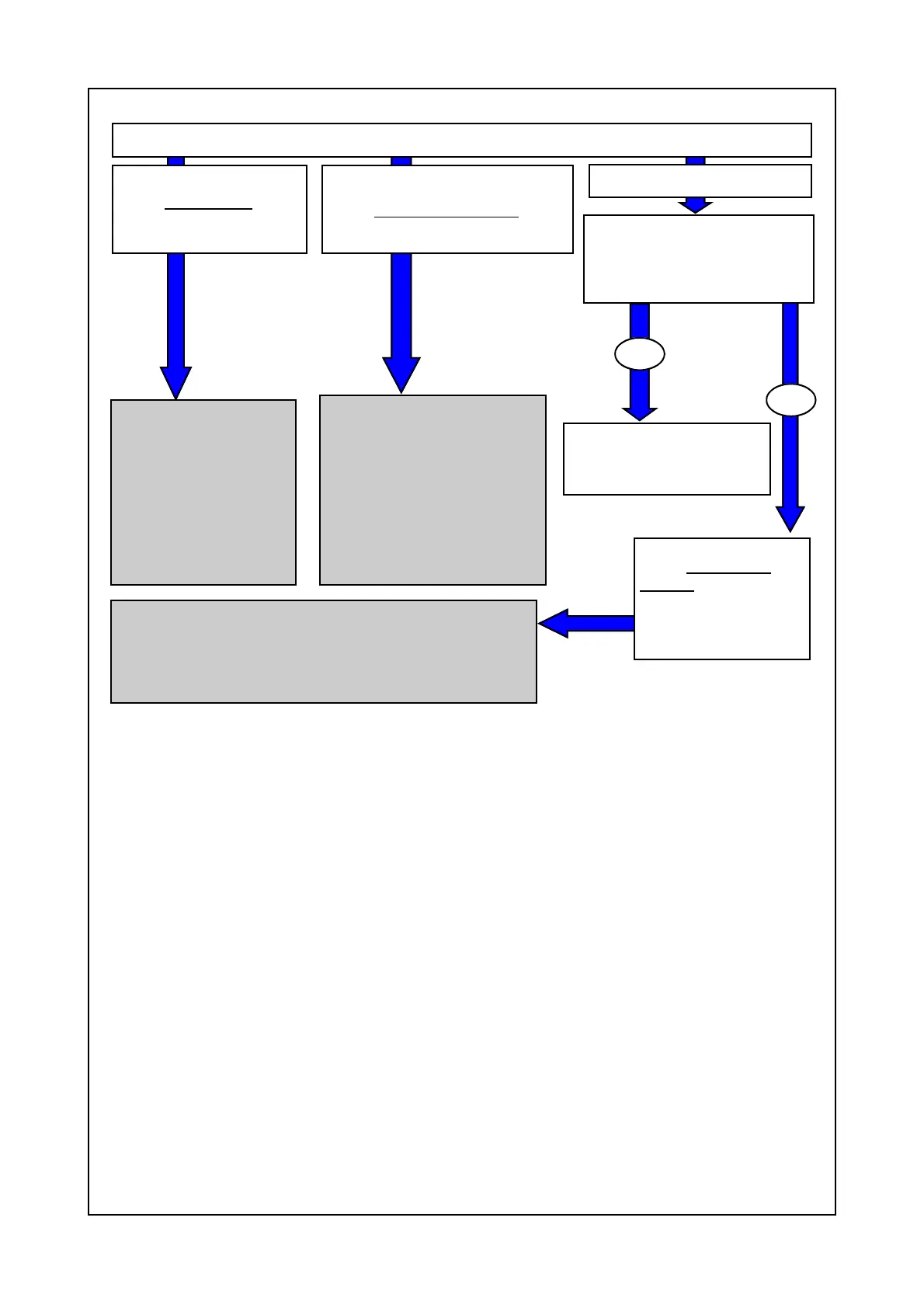

6.8 What hydraulic system does the tractor use?
1. Open Centre
Set as Open Centre
(default factory setting, as
shown in section 6.9)
2. Closed Centre
Set as Closed/Load Sensing
(as shown in section 6.9)
3. Load-Sensing
Does the tractor have a ‘Power
Beyond’
& ‘Sensing Line’ connection fit-
ted?
NO
Set as Closed/Load
Sensing
(as shown in section
6.9)
SET-UP (C)
(1)Plug Wrapper Feed into Power Beyond Output.
(2)Plug Wrapper Return into Free-Flow Return.
(3)Plug Sensing-Line hose into ‘Power Beyond’ connection
on tractor.
Contact your tractor dealer
get the ‘Power Beyond ‘
option fitted.
YES
SET-UP (A)
(1)Plug Wrapper Feed
into auxiliary spool
output ensuring it can
supply an oil flow of at
least 45 litres/min. @
180 bar.
(2)Plug Wrapper Return
into Free-Flow Return.
SET-UP (B)
(1)Plug Wrapper Feed into
auxiliary spool output ensur-
ing it can supply an oil flow
of at least 45 litres/min. @
180 bar.
(2)Plug Wrapper Return into
Free-Flow Return.
