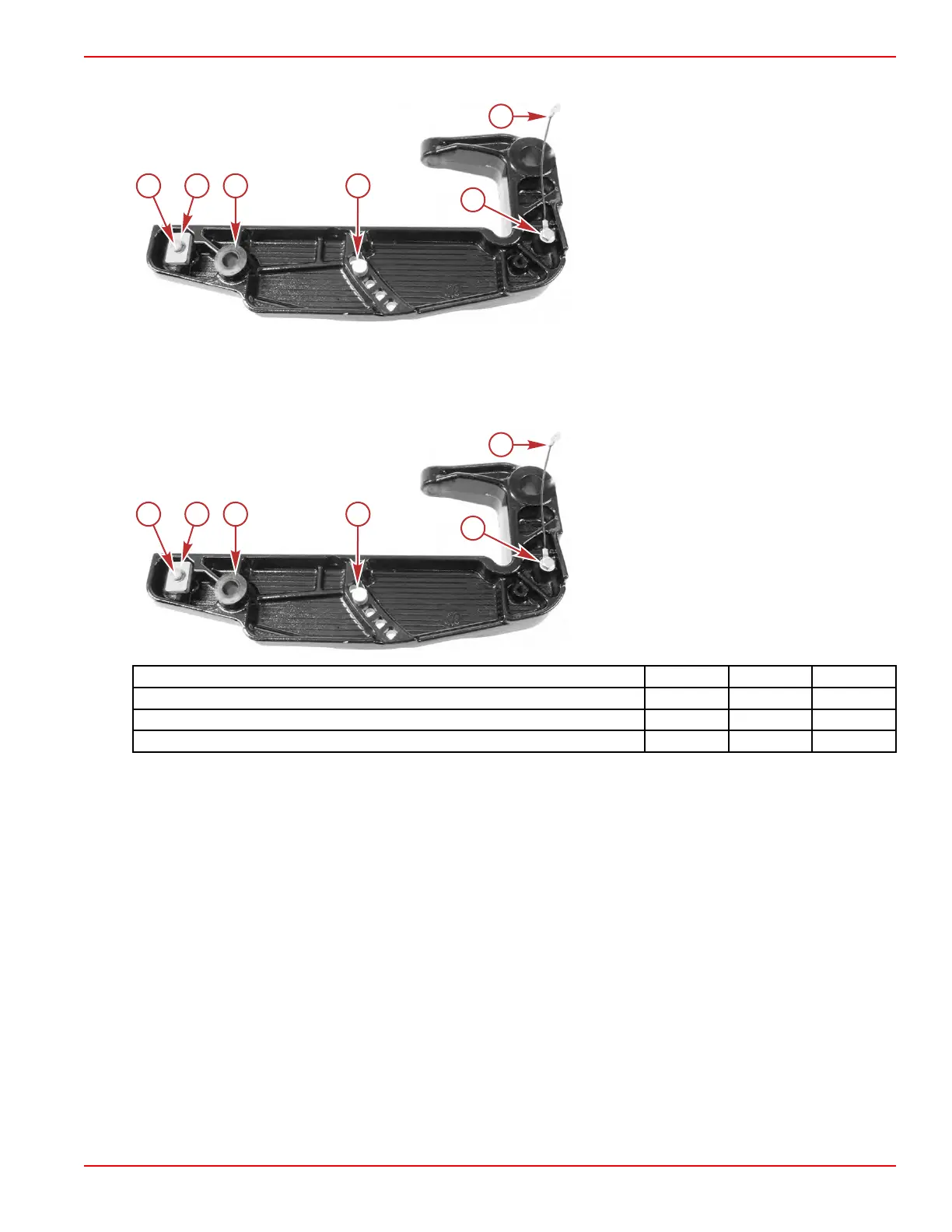

8. Inspect the tilt lock pin, lower pivot pin bushing, and anode.
a - Ground cable
b - Screw (M6 x 12)
c - Tilt lock pin
d - Lower pivot pin bushing
e - Anode
f - Screw (M6 x 16)
Starboard Bracket Installation
1.
Install the lower pivot pin bushing.
2. Install the tilt lock pin. Tighten the locknut to the specified torque.
3. Install the anode and ground cable. Tighten the anode screw to the specified torque.
a - Ground cable
b - Screw (M6 x 12)
c - Tilt lock pin
d - Lower pivot pin bushing
e - Anode
f - Screw (M6 x 16)
Description Nm lb‑in. lb‑ft
Anode screw (M6 x 16) 6.0 53.1 –
Tilt lock pin locknut 13 115 –
Ground cable screw (M6 x 12) 6.0 53.1 –
4. Install the clamp bracket partially onto the tilt tube.
5.
Align the lower pivot pin with the port clamp bracket bushing and push the clamp bracket onto the lower pivot pin.
6. Install the lower pivot pin screw and washer. Tighten the screw to the specified torque.
7. Secure the ground cable with the screw.
8. Lubricate the plastic washer on the tilt tube with 2‑4‑C with PTFE.
9. Thread the nut onto the tilt tube to the end of the threads.
10. Push the tilt tube in until the nut is seated in the hex cavity.
11. Tighten the port tilt tube locknut to the specified torque.
Clamp/Swivel Bracket and Driveshaft Housing
