3.12.8 Activation of “Dynamic Parameters”
For several of the protection functions, it is possible for the duration of the set
hold time to switch over to other settings – the “dynamic parameters” – via an
appropriately configured binary signal input. If the hold time is set to 0 s,
switching is effective as long as the binary signal input is being triggered.
64Z8005A
MAIN:
Dynam. param. active
[ 040 090 ]
MAIN:
Switch dyn.param.EXT
[ 036 033 ]
MAIN:
Hold time dyn.param.
[ 018 009 ]
t1 = 0 s
1
&

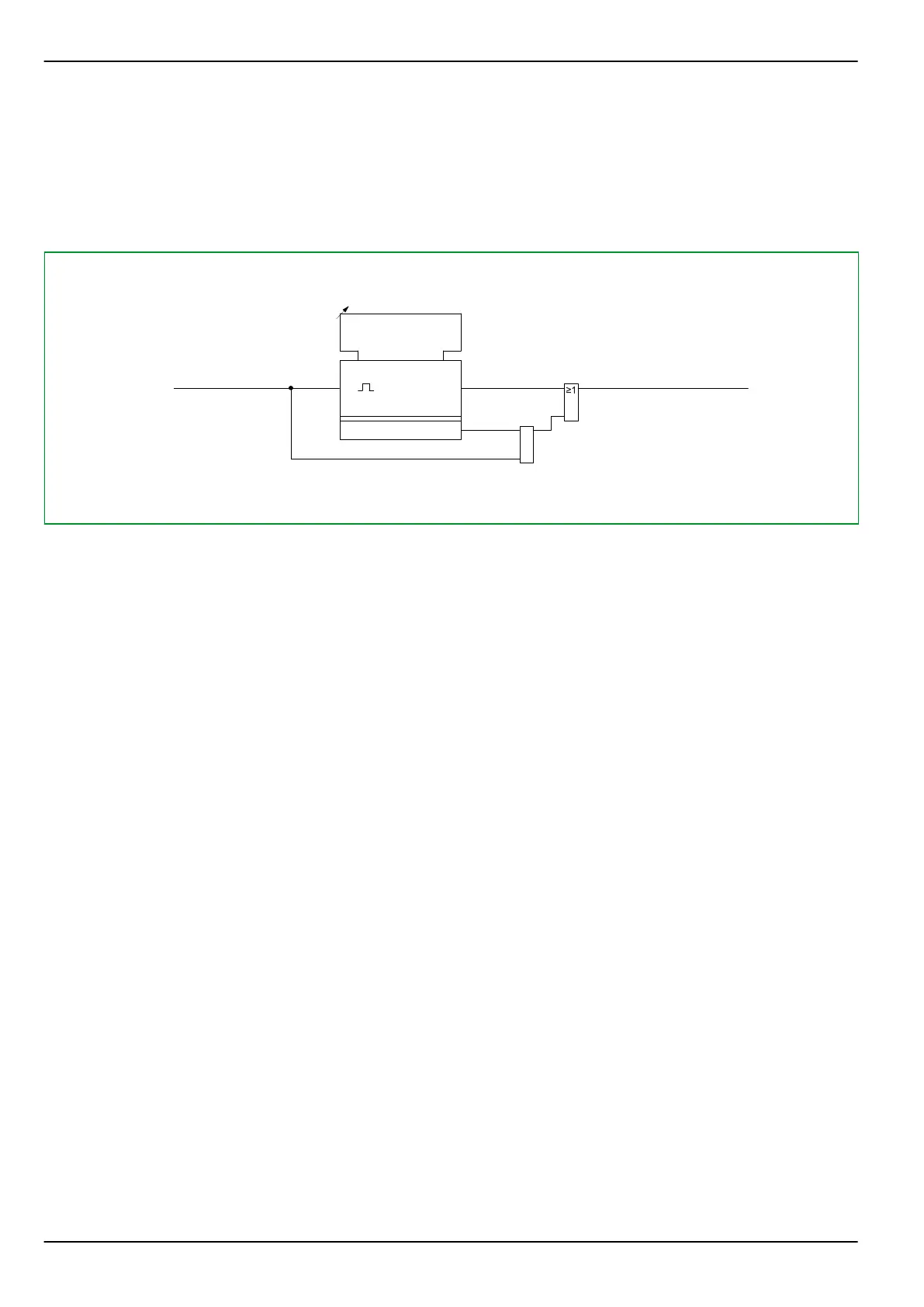

Fig. 3-56: Activation of “Dynamic Parameters”.
