6.11 Control at the Menu Tree Level
6.11.1 Navigation in the Menu Tree
Folders and Function Groups
All data points are organized in different folders based on practical control
requirements.
At the root of the menu tree is the unit type; the tree branches into the three
main folders “Settings”, “Measurements & Tests” and “Fault & Event Records”,
which form the first folder level. Up to two further folder levels follow so that the
entire folder structure consists of three main branches and a maximum of three
folder levels.
At the end of each branch of folders are the various function groups in which the
individual data points (settings) are combined.
PX yyy
PX yyy
Parameters
PX yyy
Operation
PX yyy
Events
Oper/
Cyclic measurements
Oper/Cycl/
Meas. operating data
Oper/Cycl/Data/
MAIN
Folder
plane 1
Folder
plane 2
Folder
plane 3
Function
groups
Data
points
Oper/Cycl/Data/MAIN
Date
01.01.99 dd.mm.yy
Unit
type

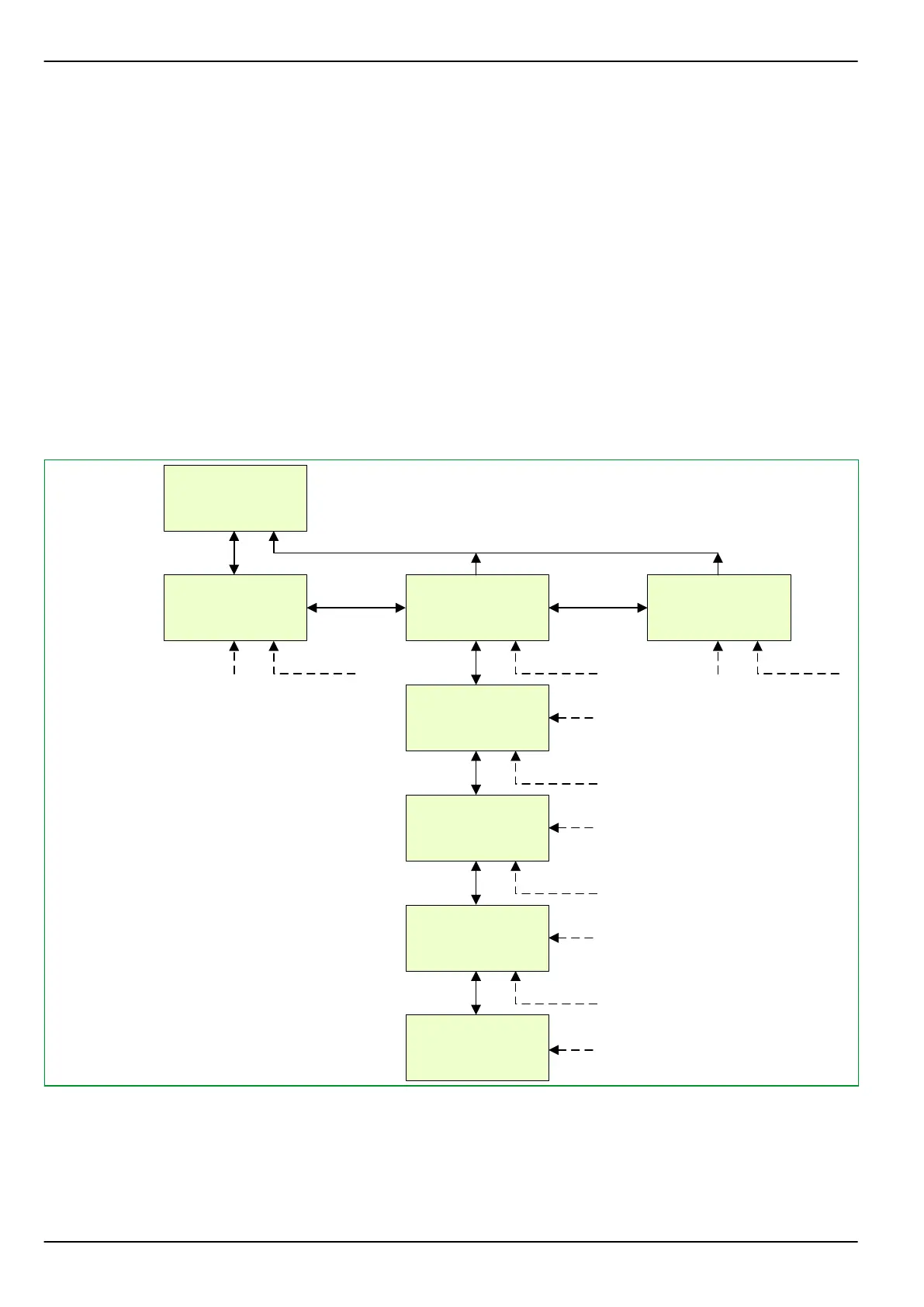

Fig. 6-3: Basic menu tree structure.
