Micom P634 - Counters of the IDMT Protection Function

64Z5032A
IDMT1:
tGS elapsed
[ 038 116 ]
Parameter
set 1
set 2
set 3
set 4
IDMT1:
Gen.starting modePSx
081 059
082 059
083 059
084 059
IDMT1:
Starting Iref,neg>
[ 038 173 ]
IDMT1:
General starting
[ 038 115 ]
IDMT1:
tGS PSx
081 058
082 058
083 058
084 058
IDMT1:
Starting Iref,N>
[ 038 120 ]
IDMT1:
Starting Iref,P>
[ 038 110 ]
IDMT1:
Gen.starting modePSx
[ * ]
1
0
0: W/o start. IN/Ineg
1: With start. IN/Ineg
IDMT1:
tGS PSx
[ * ]

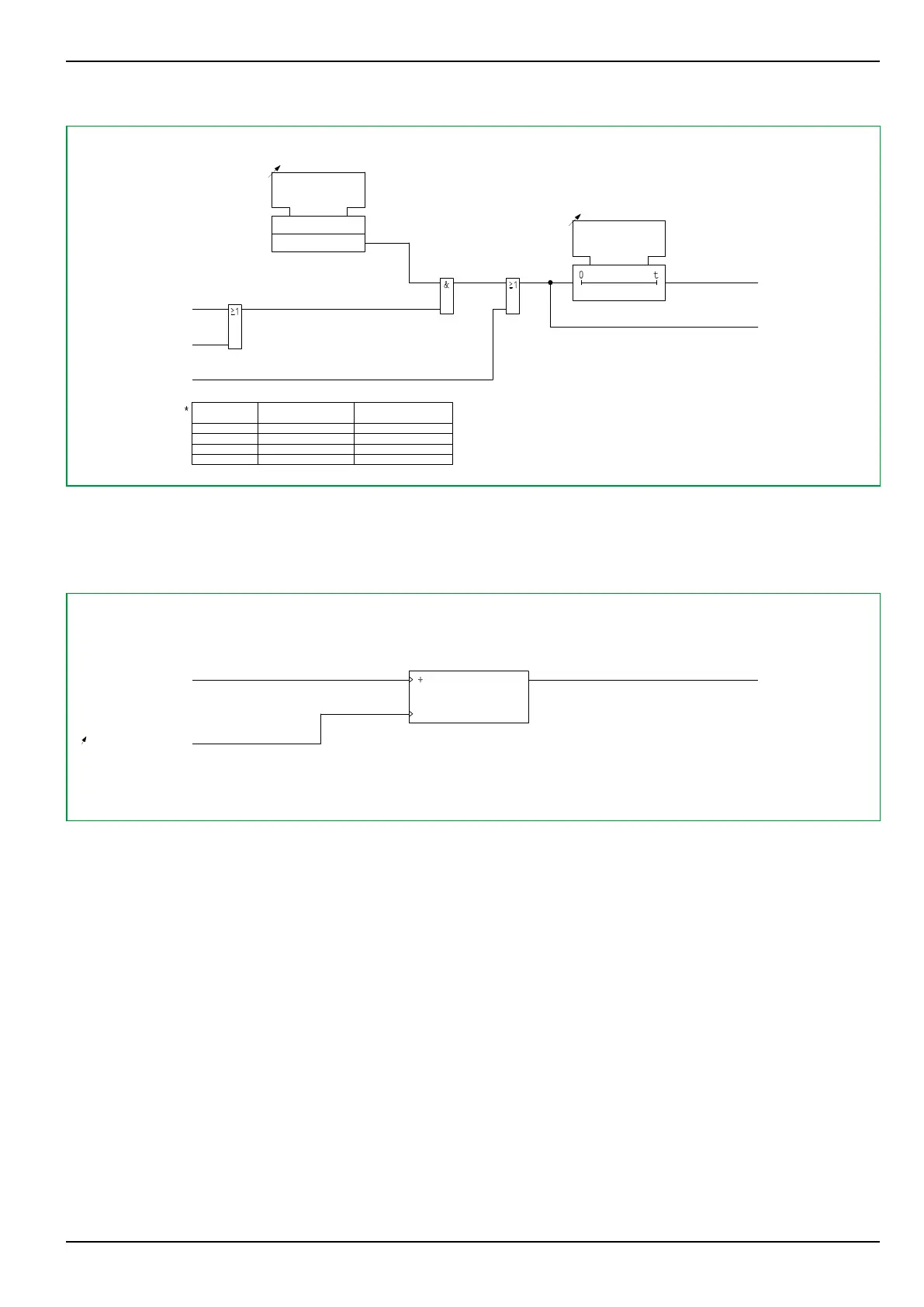

Fig. 3-125: General starting
3.24.8 Counters of the IDMT Protection Function
The number of general starts is counted. The counter can be reset individually.
Q6Z0133A
IDMT1:
No. general start.
[ 009 151 ]
IDMT1:
General starting
[ 038 115 ]
MAIN:
General reset USER
[ 003 002 ]
1: execute
R
Fig. 3-126: Counters of the IDMT protection function
