6.4 Display Panels
The text display of the P634 can display Measured Value Panels which are called
up according to system conditions.
Selected measured values are displayed on the Measured Value Panels. The
system condition determines which Panel is called up (examples are the
Operation Panel and the Fault Panel). Only the Measured Value Panels relevant
for the particular design version of the given device and its associated range of
functions are actually available.
The Operation Panel is always provided.
+
Menu tree
Device type
Parameters
Device ID
Configuration parameters
Function parameters
Global
Main functions
Parameter subset 1
Parameter subset ...
Control
Operation
Cyclic measurements
Control and testing
Operating data recordings
Measured operating data
Physical state signals
Logical state signals
Events
Event counters
Measured fault data
Event recordings
Record View
Oper/Rec/OP_RC
Operat. data record
Panel(s)
Voltage VAB prim.
20.7 kV
Voltage VBC prim.
20.6 kV
Measured Value

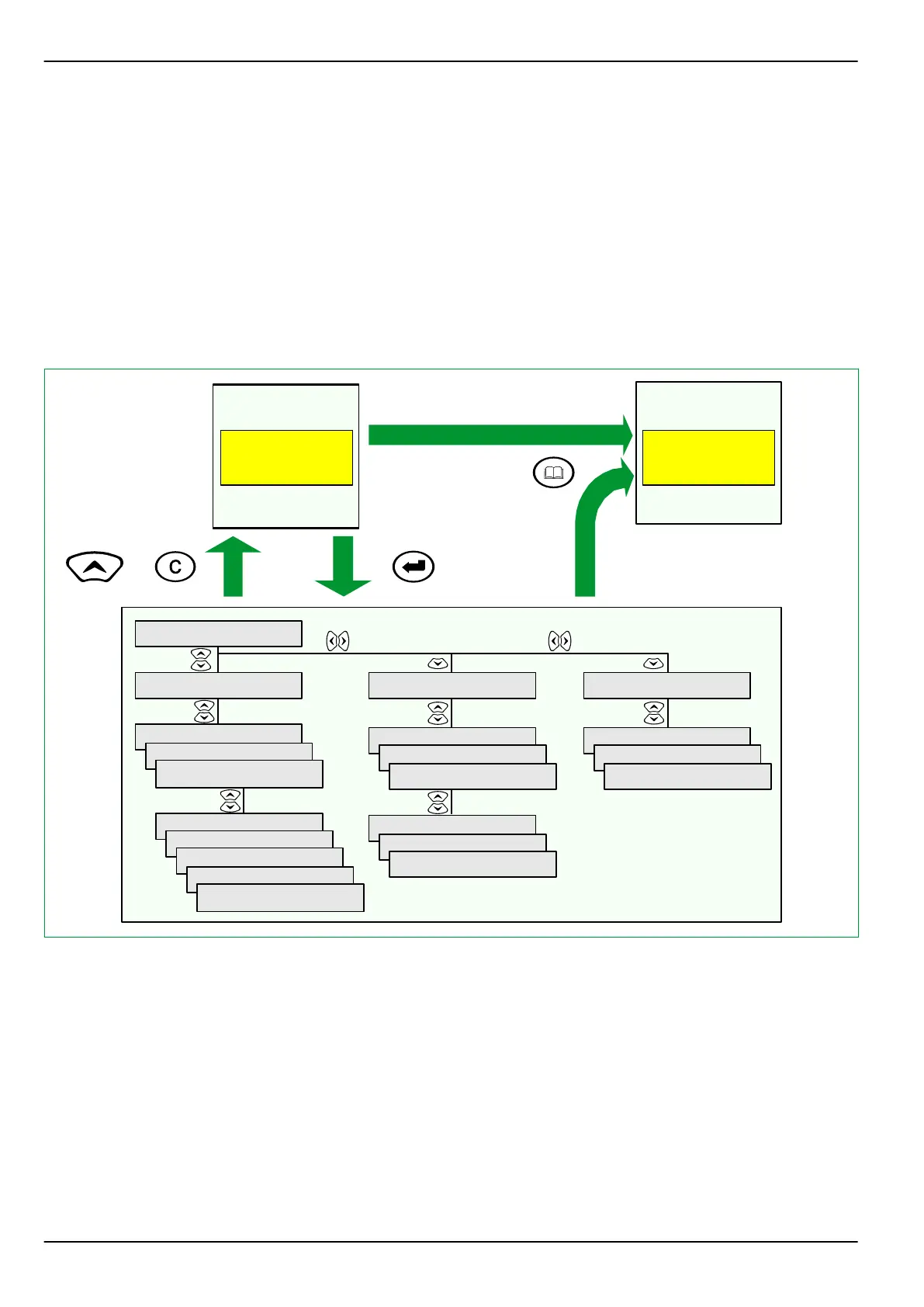

Fig. 6-2: Display panels and menu tree.
P634
6 Local Control (HMI)
6-6 P634/EN M/R-42-A // P634‑311‑653
