3.3.1 Operation Panel
The Operation Panel is displayed after the set return time has elapsed, provided
that at least one measured value has been configured.
The user can select which of the measured operating values will be displayed on
the Operation Panel by means of an “m out of n” parameter. When more
measured operating values are selected for display than the LC display can
accommodate, then the display will either switch to the next set of measured
operating values at intervals defined by the setting for LOC: Hold-time for
Panels or when the appropriate key on the local control panel is pressed.
63Z80CXA
LOC:
Fct. Operation Panel
[ 053 007 ]
FT_RC:
Record. in progress
[ 035 000 ]
Measured value 1
Measured value 2
Measured value 3
Measured value N
Selected meas. val.
m out of n
OL_RC:
Record. in progress
[ 035 003 ]
MAIN:
Reset LED
306 020
1: execute
MAIN:
General reset EXT
[ 005 255 ]
FT_RC:
Reset record. USER
[ 003 006 ]
1: execute
MAIN:
General reset USER
[ 003 002 ]
≥1
FT_RC:
Reset record. EXT
[ 005 243 ]
≥1
R1
S1 1
Operation Panel
LOC:
Autom. return time
[ 003 014 ]
LOC:
Hold-time for Panels
[ 031 075 ]
C
LOC:
Autom. return time
LOC:
Hold-time for Panels

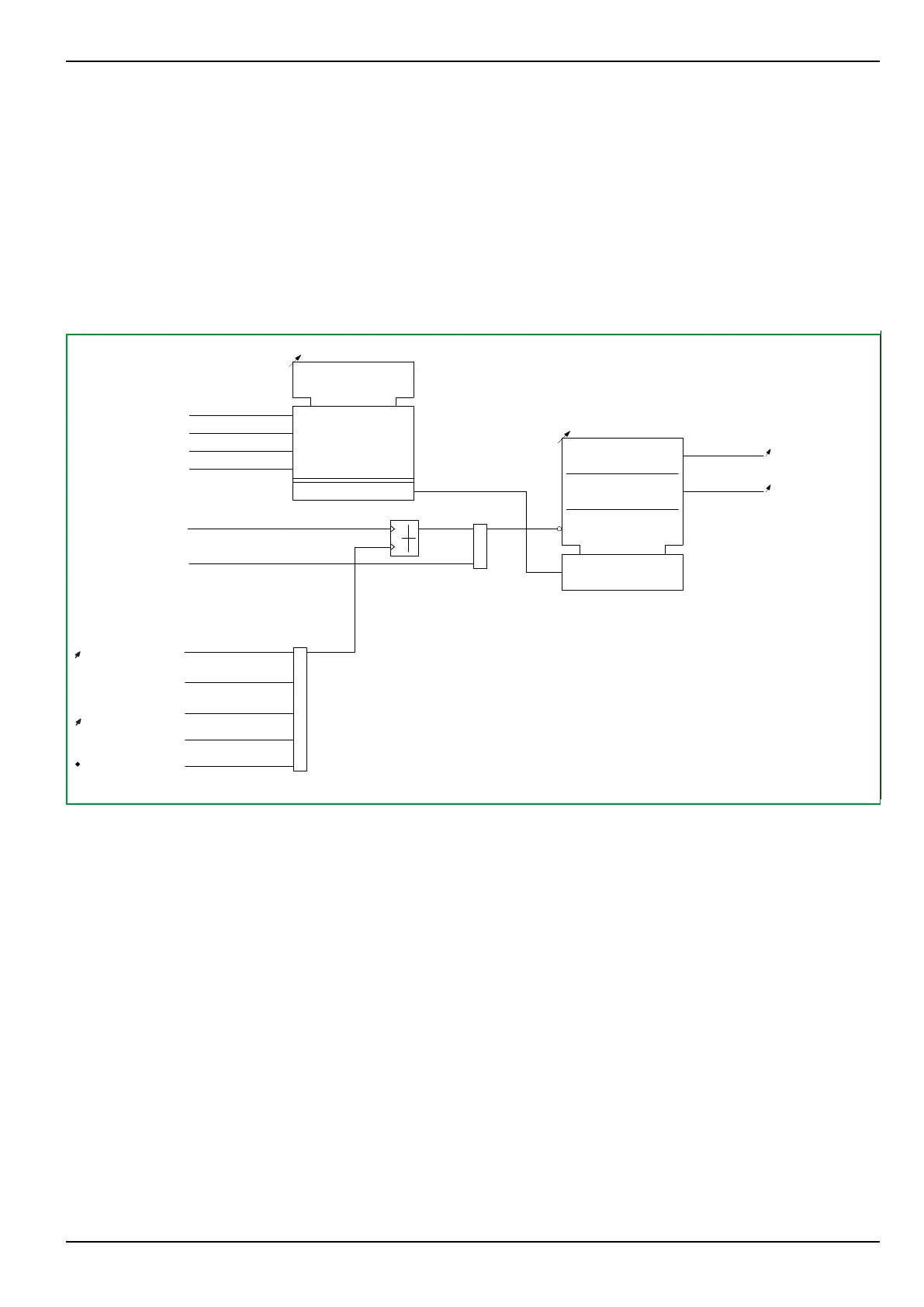

Fig. 3-2: Operation Panel.
