K
d
= K
max
≈ 1 +
X
p
R
p
= 1 + ω ·T
p
However, this is not necessary. Instead, it is sufficient to consider an empirically
determined dimensioning factor K
d
=K
emp
such that the appropriate operation of
the protection function is ensured under the given conditions. This factor
depends on application and relay type, as outlined in the following.
2.13.3 Transformer Differential Protection
For Transformer Differential Protection Devices the empirical dimensioning factor
K
d
= K
emp

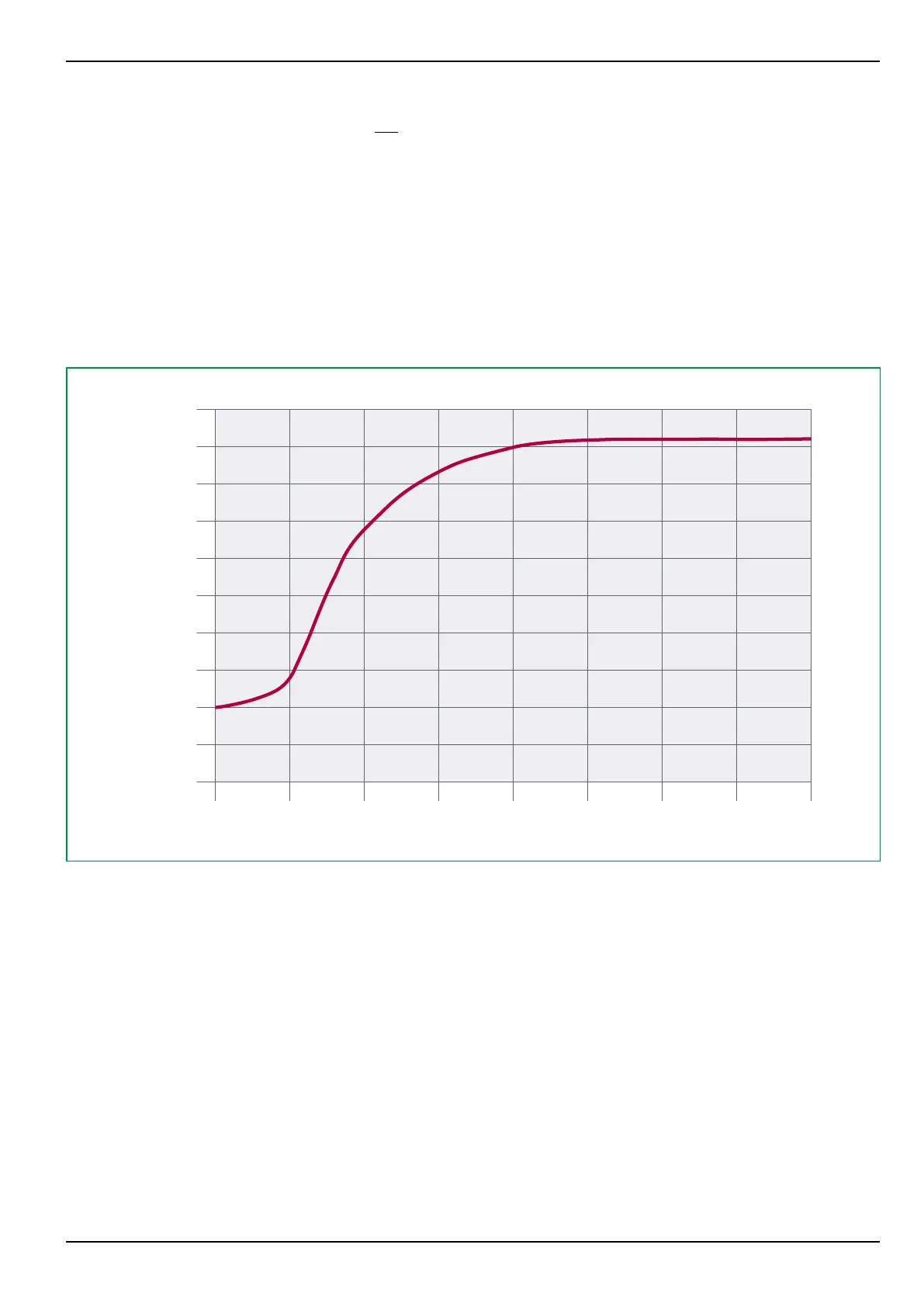

for the CTs considering external faults (assuming maximum through-
flowing currents) can be taken from the following diagram:
0
1.0
2.0
3.0
4.0
4.5
5.0
0 10 20 30 40 50 60 70 80
K
emp
X
p
/
p
R
0.5
1.5
2.5
3.5
This CT dimensioning assures through fault stability of the differential element.
Due to the inbuilt saturation discriminator the CT requirement is independent of
the current sensitivity given by the set basic threshold of the tripping
characteristic.
The empirical dimensioning factor K
emp
(shown in the diagram above) has been
determined by investigations using 3-shot auto-reclosing sequences with 450 ms
of fault current feed (starting at worst case point on wave) for each shot and
300 ms dead time between shots. In most practical cases faults would be cleared
in 100 to 200 ms for external protection operation and the dead time between
auto-reclose shots would be longer than 300 ms. This would reduce the flux
build-up in the core. Therefore the above shown empirical dimensioning factor
K
emp
can be considered as being based on a conservative approach.
For internal fault steady-state saturation is permissible with maximum fault
currents up to 4 times the steady-state accuracy limit current of the CT. This
corresponds to a dimensioning factor of K
d
= 0.25 for internal faults.
It is recommended to use CTs of accuracy class 5P (or equivalent).
