3.12.10 Multiple Signaling of the Measuring Circuit Monitoring Function
Signals issued by the measuring circuit monitoring (MCMON) function are
combined to one signal in function group MAIN.
64Z5185A
MAIN:
Meas. circ.I faulty
[ 036 155 ]
MCM_1:
Meas. circ. I faulty
[ 036 198 ]
SFMON:
Meas. circ. I faulty
[ 091 018 ]
MCM_2:
Meas. circ. I faulty
[ 036 199 ]
MCM_3:
Meas. circ. I faulty
[ 036 200 ]
MCM_4:
Meas. circ. I faulty
[ 036 201 ]

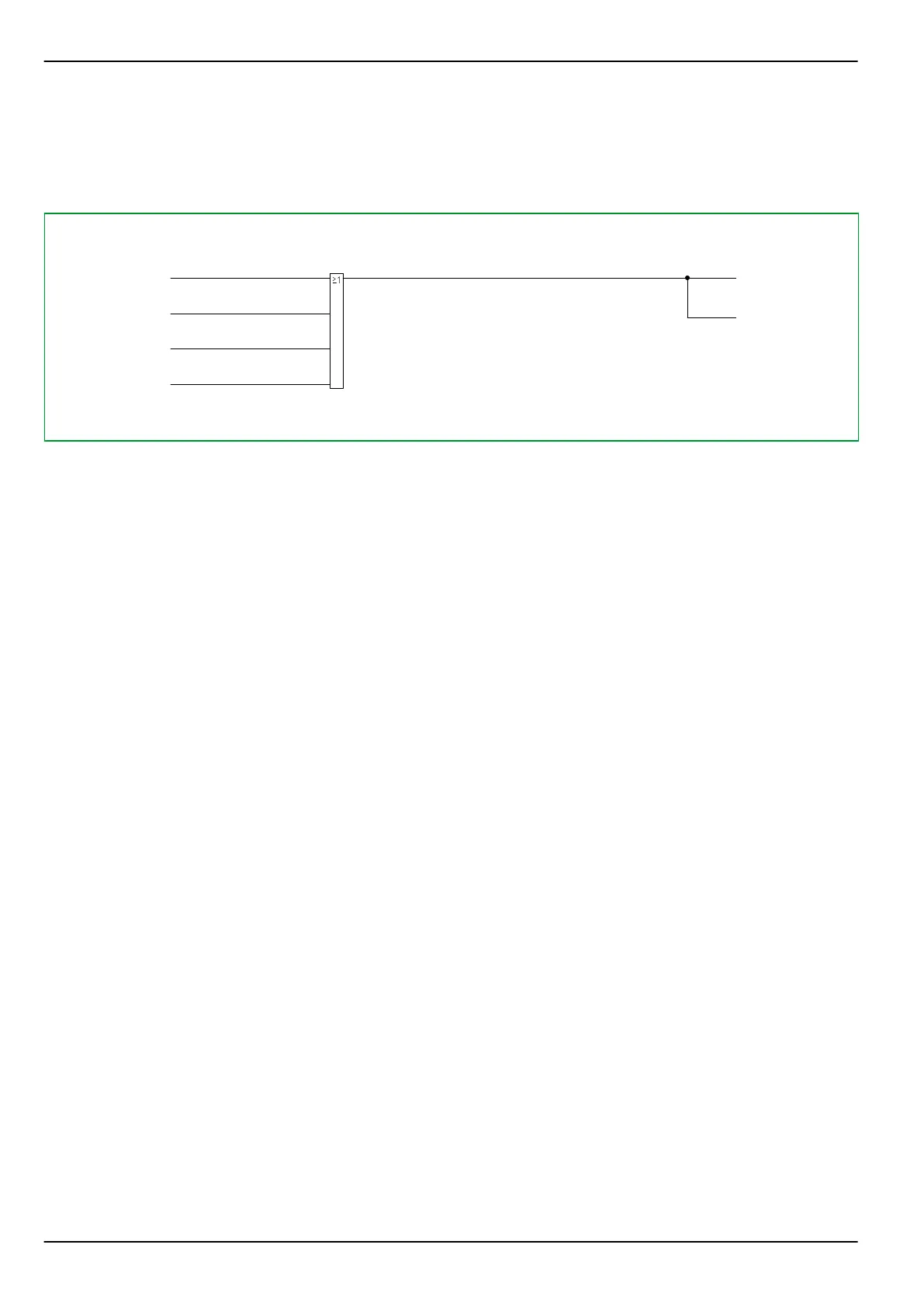

Fig. 3-58: Signals issued by measuring circuit monitoring
3.12.11 Multiple Signaling
8 user configurable group signals are available (MAIN: Group signal 01 to
MAIN: Group signal 08). For each of these signals the user can select up to
32 internal signals and freely combine them using Boolean operators NOT, AND,
OR (settings MAIN: Fct.asg. grp.sig. 01 to MAIN: Fct.asg. grp.sig. 08),
as described for configuration of LOGIC outputs (see Fig. 3-175, (p. 3-221)).
These state signals are continuously updated. They provide no latching and no
settable pick up/ release delay timers. If such timed signaling is required, the
function groups LOGIC or LOG_2 shall be used.
