Micom P634 - Fixed-Time Warning Stage; Fixed-Time Tripping Stage; Variable-Time Tripping Stage

3.28.3 Fixed-time Warning Stage
The overfluxing value (V/f) is monitored to determine whether it exceeds a set
threshold. A timer stage is triggered when the overfluxing value exceeds this
threshold and a signal is issued when the time delay has elapsed.
64Z5192B
V/f:
tV/f> elapsed
[ 041 231 ]
V/f:
Starting V/f>
[ 041 230 ]
Parameter
set 1
set 2
set 3
set 4
V/f:
V/f> (alarm) PSx
081 211
082 211
083 211
084 211
V/f:
tV/f> PSx
081 214
082 214
083 214
084 214
V/f:
V/f> (alarm) PSx
[ * ]
V/f:
tV/f> PSx
[ * ]
V/f:
Enabled
[ 041 229 ]
MAIN:
Protection active
306 001
V/f:
Block. tV/f> EXT
[ 035 196 ]
MAIN:
M.c.b. trip V EXT
[ 004 061 ]
V/f:
Enable meas.
460 569
V/f:
Excitation V/f p.u.
[ 004 220 ]

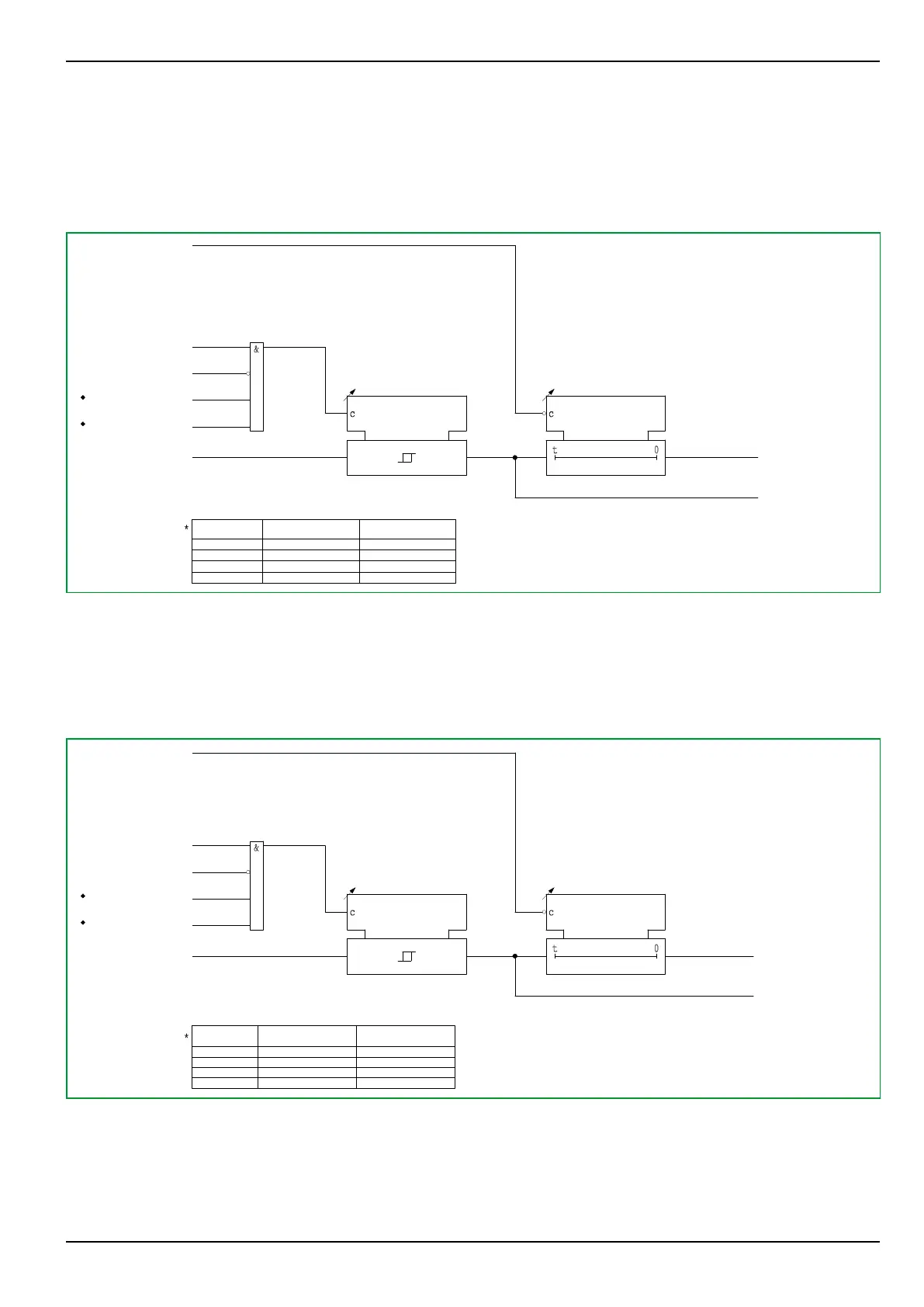

Fig. 3-143: Warning stage
3.28.4 Fixed-time Tripping Stage
The overfluxing value (V/f) is monitored to determine whether it exceeds a set
threshold. A timer stage is triggered when the overfluxing value exceeds this
threshold and a signal is issued when the time delay has elapsed.
64Z5195B
V/f:
tV/f>> elapsed
[ 041 235 ]
V/f:
Starting V/f>>
[ 041 234 ]
Parameter
set 1
set 2
set 3
set 4
V/f:
V/f>> PSx
081 213
082 213
083 213
084 213
V/f:
tV/f>> PSx
081 229
082 229
083 229
084 229
V/f:
V/f>> PSx
[ * ]
V/f:
tV/f>> PSx
[ * ]
V/f:
Enabled
[ 041 229 ]
MAIN:
Protection active
306 001
MAIN:
M.c.b. trip V EXT
[ 004 061 ]
V/f:
Enable meas.
460 569
V/f:
Excitation V/f p.u.
[ 004 220 ]
V/f:
Block. tV/f>> EXT
[ 035 199 ]
Fig. 3-144: Fixed-time tripping stage
3.28.5 Variable-time Tripping Stage
The overfluxing value (V/f) is monitored to determine whether it exceeds the set
threshold. When the overfluxing value exceeds this threshold the P634 will
3 Operation
P634
P634/EN M/R-42-A // P634‑311‑653 3-191
