Micom P634 - Acquiring Measured Overload Data from the Thermal Overload Protection

3.17.2 Acquiring Measured Overload Data from the Thermal Overload
Protection
Measured overload values are derived from the thermal overload protection’s
measured operating data. They are stored at the end of an overload event.
OL_DA:
Status THRM1 replica
[ 004 155 ]
OL_DA:
Load current THRM1
[ 004 159 ]
OL_DA:
Object temp. THRM1
[ 004 156 ]
OL_DA:
Coolant temp.THRM1
[ 004 157 ]
OL_DA:
Pre-trip t.leftTHRM1
[ 004 158 ]
OL_DA:
Offset THRM1 replica
[ 004 191 ]
64Z5038A
OL_RC:
Reset record. USER
[ 100 003 ]
1: execute
MAIN:
General reset USER
[ 003 002 ]
1: execute
THRM1:
Object temperat.,TH1
[ 004 151 ]
OL_RC:
Record. in progress
[ 035 003 ]
THRM1:
I
305 220
THRM1:
Status replica, TH1
[ 004 150 ]
THRM1:
Coolant temp. TH1
[ 004 154 ]
THRM1:
Pre-trip t. left,TH1
[ 004 153 ]
THRM1:
Temp. offset repl. 1
[ 004 170 ]

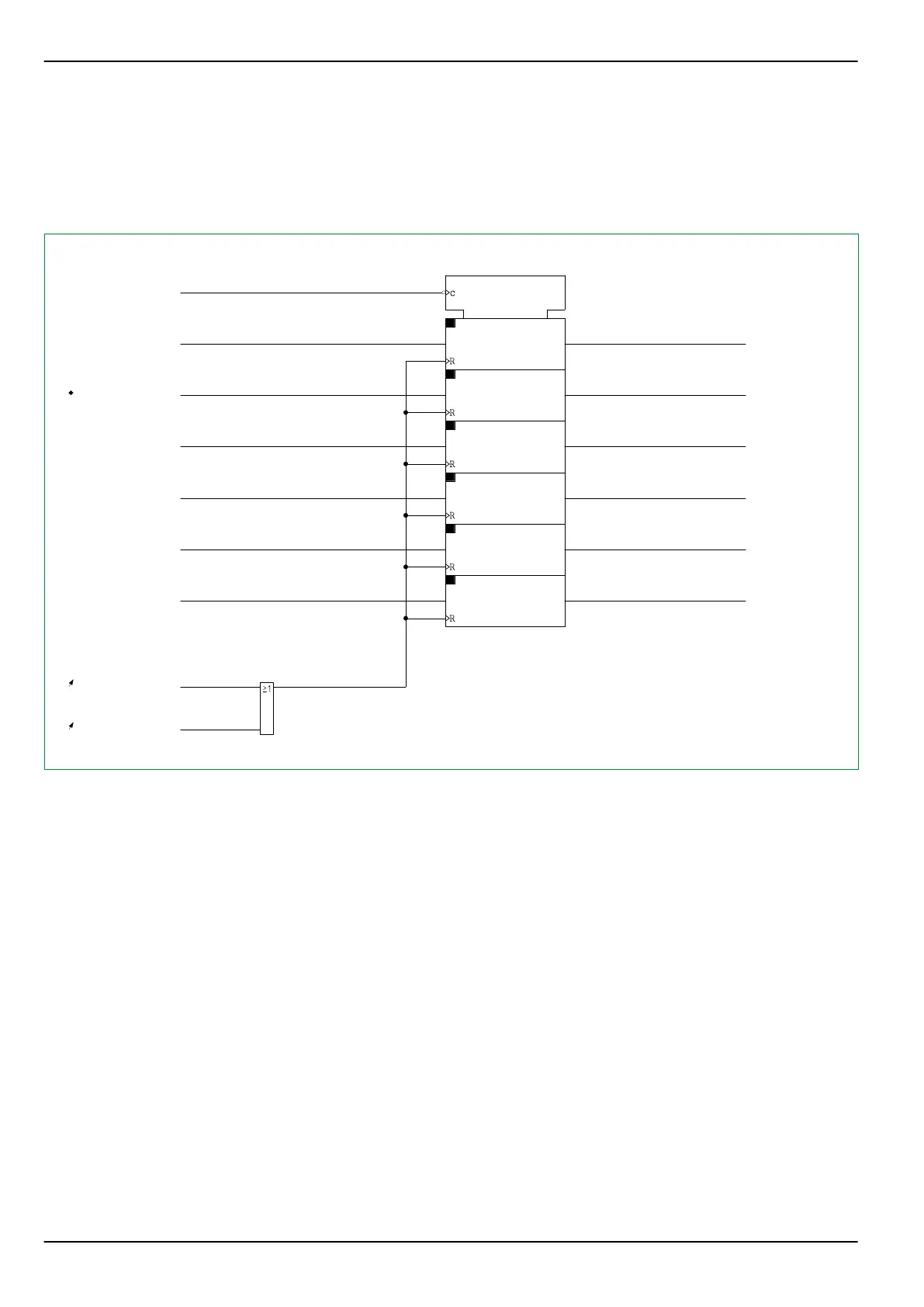

Fig. 3-74: Measured overload values from the thermal overload protection, shown here for THRM1
P634 3 Operation
3-108 P634/EN M/R-42-A // P634‑311‑653
