FT_RC:
Reset record. USER
[ 003 006 ]
1: execute
MAIN:
General reset USER
[ 003 002 ]
1: execute
FT_RC:
Max. recording time
[ 003 075 ]
FT_RC:
Pre-fault time
[ 003 078 ]
FT_RC:
Post-fault time
[ 003 079 ]
IA,a
FT_RC:
Record. in progress
[ 035 000 ]
IB,a
IC,a
IY,a
ΣIP,a
IA,b
IB,b
IC,b
IY,b
ΣIP,b
V
IA,c
IB,c
IC,c
IY,c
ΣIP,c
Analog channel 1
R
FT_RC:
Rec. analog chann. 4
[ 035 163 ]
0: Without
Analog channel 2
R
Analog channel 3
R
Analog channel 4
R
Analog channel 5
R
Analog channel 6
R
Analog channel 7
R
Analog channel 8
R
Analog channel 9
R
Analog channel 10
R
Analog channel 11
R
Analog channel 12
R
Analog channel 13
R
FT_RC:
Rec. analog chann. 8
[ 035 167 ]
0: Without
FT_RC:
Rec. analog chann.13
[ 035 172 ]
0: without
FT_RC:
Rec. analog chann. 9
[ 035 168 ]
0: Without

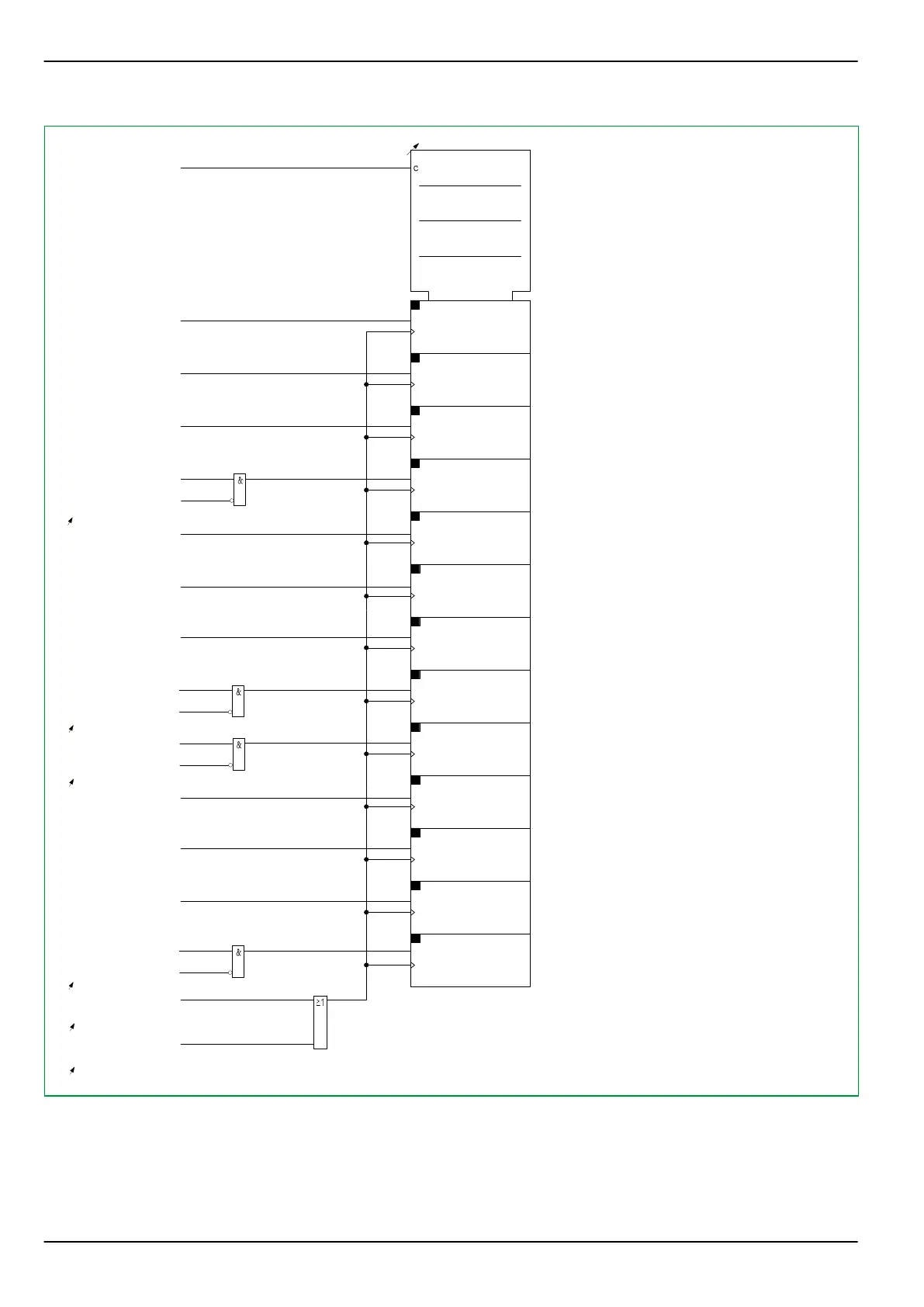

Fig. 3-84: Fault value recording
