Micom P634 - Page 235

64Z5019A
Parameter
set 1
set 2
set 3
set 4
THRM1:
Select CTA PSx
081 072
082 072
083 072
084 072
THRM1:
Bl. f. CTA fault PSx
081 073
082 073
083 073
084 073
THRM1:
Bl. f. CTA fault PSx
[ * ]
1
0
0: No
1: Yes
THRM1:
Select CTA PSx
[ * ]
1
0
2
0: Default temp. value
1: From PT100
2: From 20 mA input
SFMON:
CTA error THRM1
[ 098 036 ]
THRM1:
CTA error
[ 039 127 ]
THRM1:
With CTA
305 222
THRM1:
Block. by CTA error
305 221
MEASI:
PT100 faulty
[ 040 190 ]
THRM1:
CTA error EXT
[ 039 152 ]
MEASI:
Overload 20mA input
[ 040 191 ]
MEASI:
Open circ. 20mA inp.
[ 040 192 ]

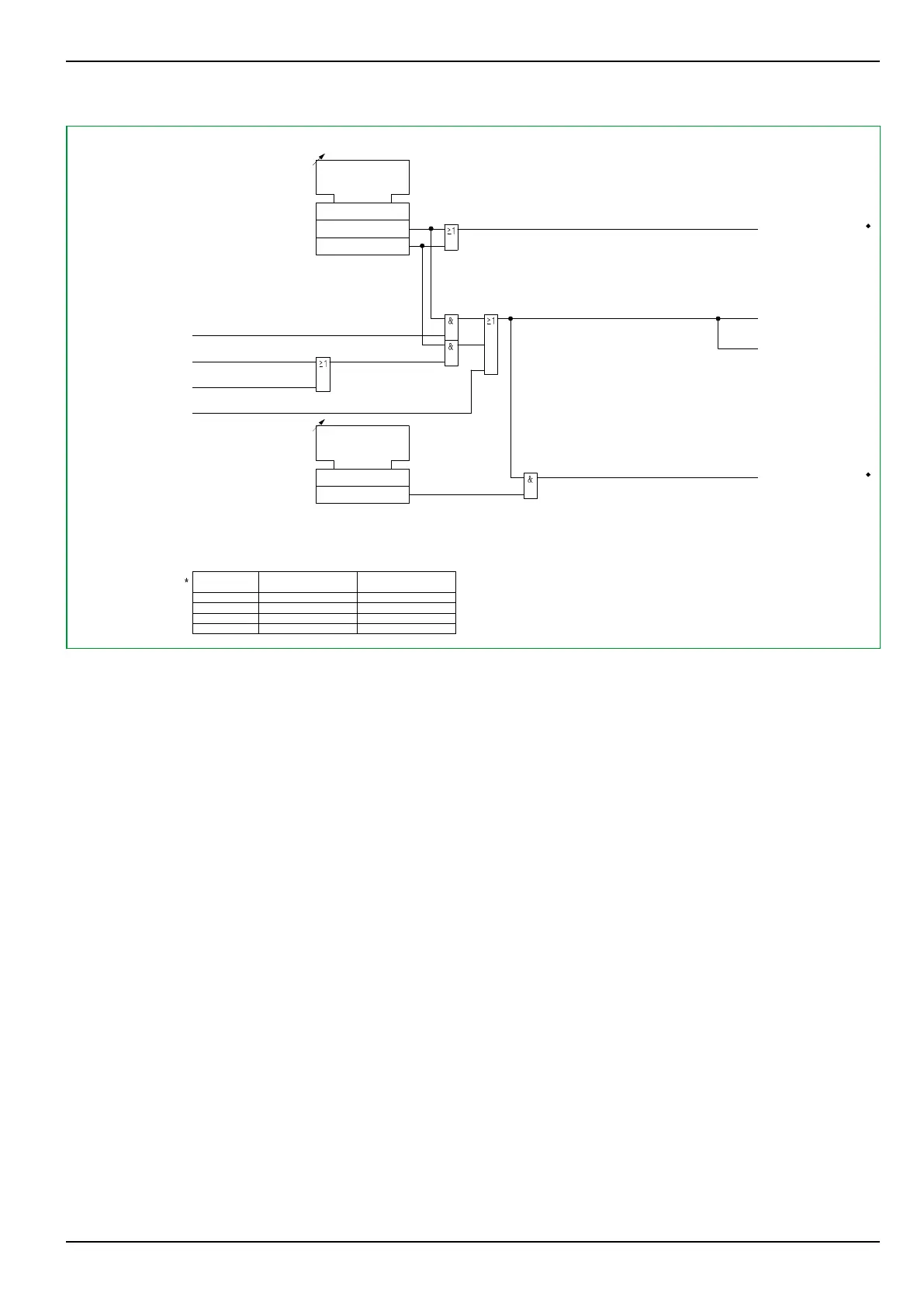

Fig. 3-131: Monitoring the coolant temperature acquisition (ambient temperature input)
3 Operation P634
P634/EN M/R-42-A // P634‑311‑653 3-179
