Micom P634 - Page 251

64Z5196A
V/f:
Reset replica
[ 035 184 ]
V/f:
Enabled
[ 041 229 ]
MAIN:
M.c.b. trip V EXT
[ 004 061 ]
V/f:
Reset replica EXT
[ 035 182 ]
V/f:
Reset replica USER
[ 035 183 ]
0: don't execute
1
0
1: execute
1 100ms

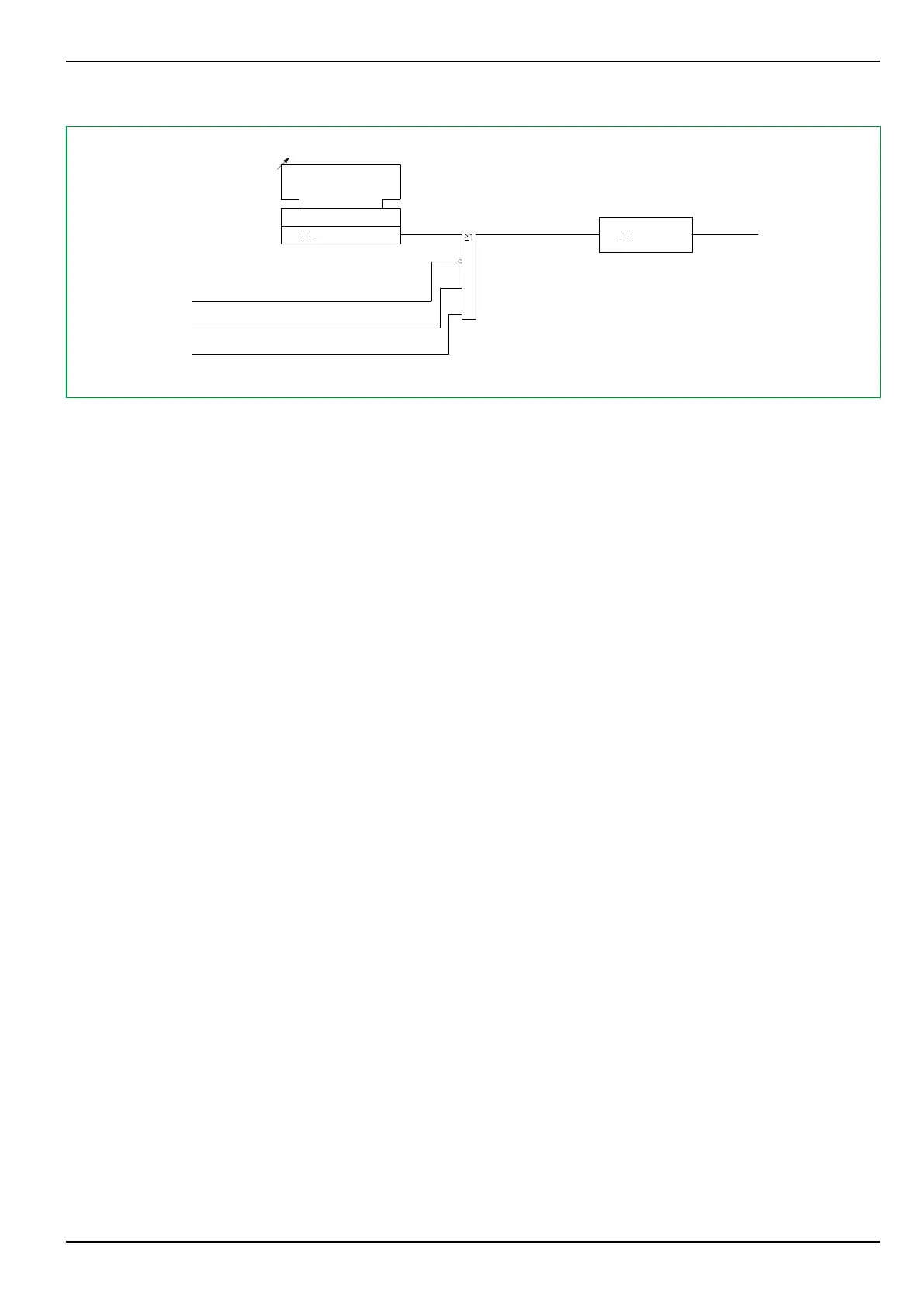

Fig. 3-148: Resetting of the thermal replica
