Micom P634 - Page 92

40Z5003A
Activate function
Function 1 EXT
Function 2 EXT
Function 3 EXT
Function n EXT
2
1
1: Key
2: Switch
Selected function
F_KEY:
Fct. assignm. F1
[ 080 112 ]
F_KEY:
Operating mode F1
[ 080 132 ]
1)
1
&
&
&
&
F_KEY:
State F1
[ 080 122 ]
S1
R1
1
0
&
Keys, local control1)

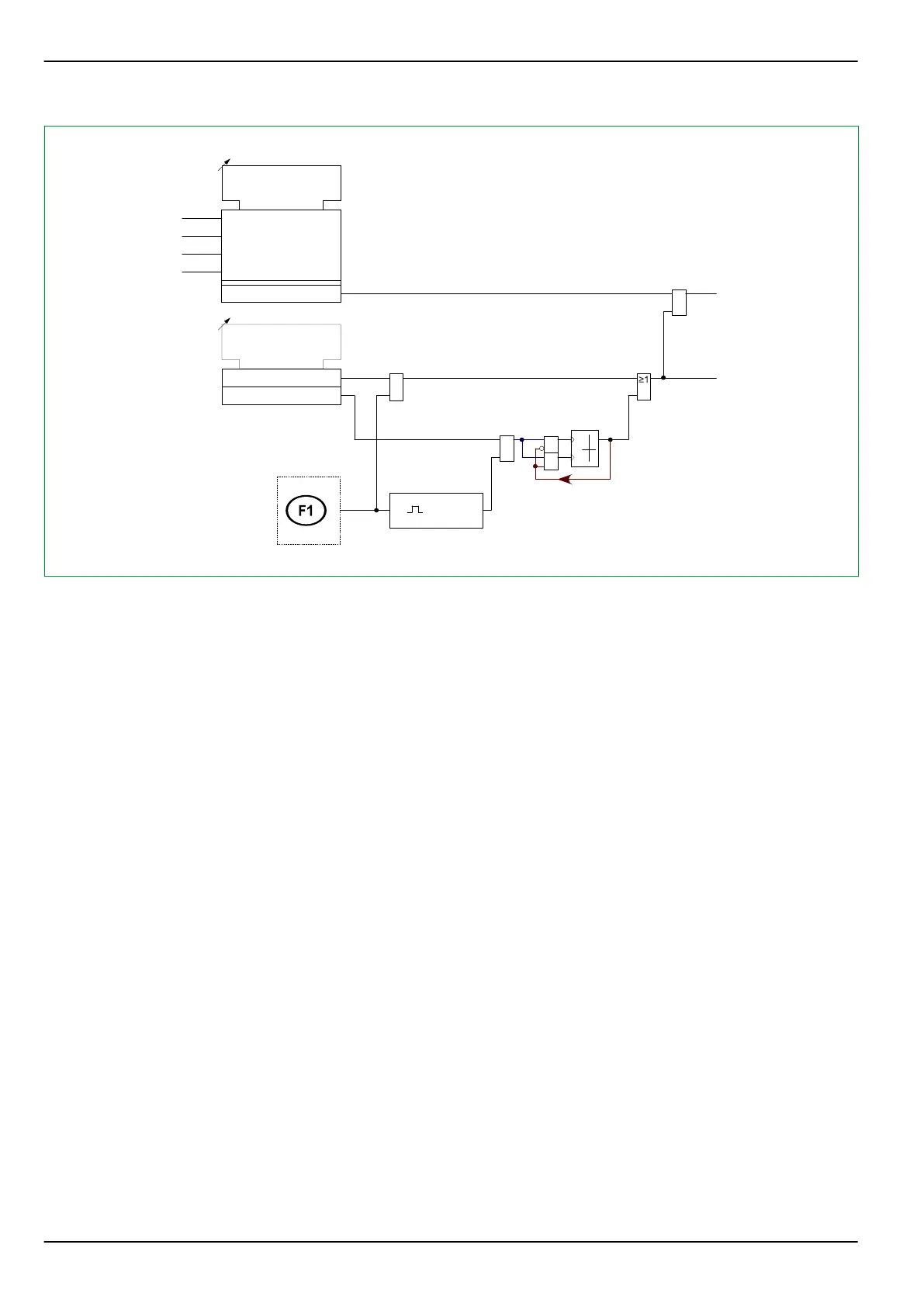

Fig. 3-21: Configuration and operating mode of function keys. The assigned function is either a single function or a
menu jump list.
P634 3 Operation
3-36 P634/EN M/R-42-A // P634‑311‑653
