12. Slide the material guide to its outermost position. (Compare
figure 5.2.1.j).
13. Feed the label through under the label tension plate (under
the moveable sensor) to the tear off bar.

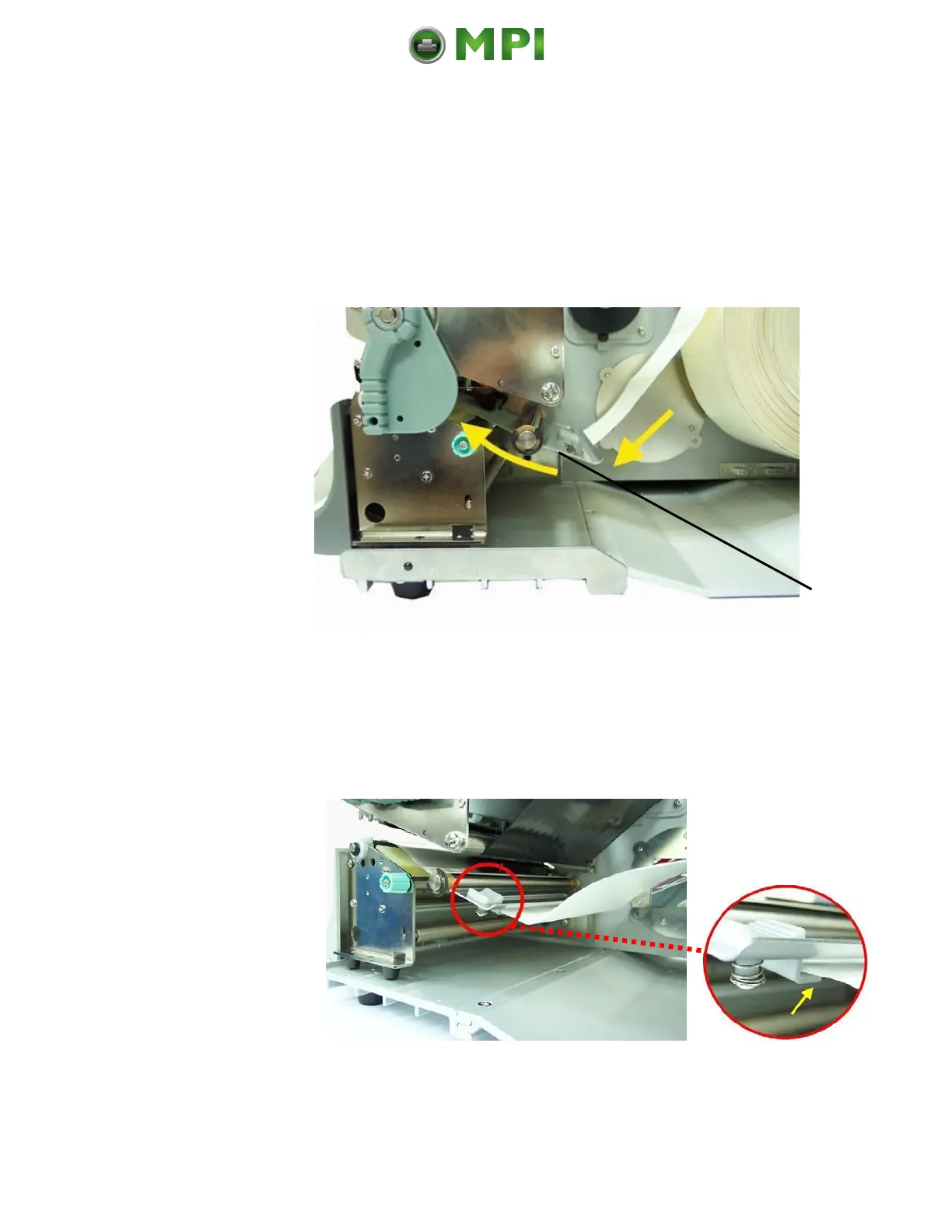

Fig. 5.2.1.i Inserting the media
14. Align the media to ensure a straight transport.
15. Slide the material guide inwards until it contacts the edge
of the media, without deforming the media.
Fig. 5.2.1.j Setting the material guide
Label
tension
plate
