86 Panel Functions
________________________________________________________________________________________________
_______________________________________________________________________________________________
MICROPLEX Operator’s Manual logiJET T4-2 /T6-2 /RFID Edition 2.2

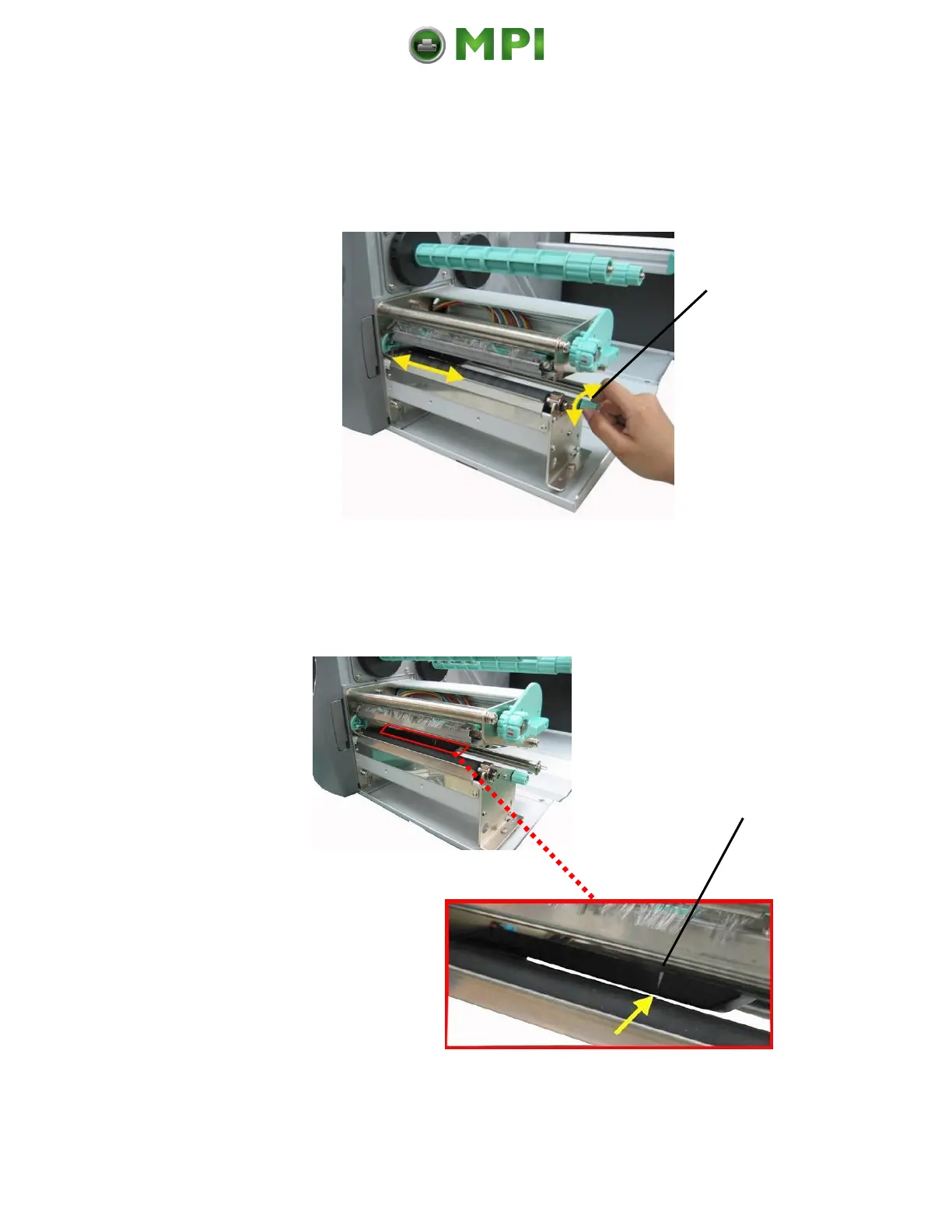

7. Use the setting knob to adjust the sensor position (light barrier). (If you turn
the setting knob clockwise, the sensor will move rightward.)
Fig. 9.3.1.d Adjusting the sensor position
8. The right position is found when the pointer is located above the material’s
gap.
Fig. 9.3.1.e The pointer indicates the sensor position
Pointer
Setting knob
