Microsens MS400870M Series User Manual

109

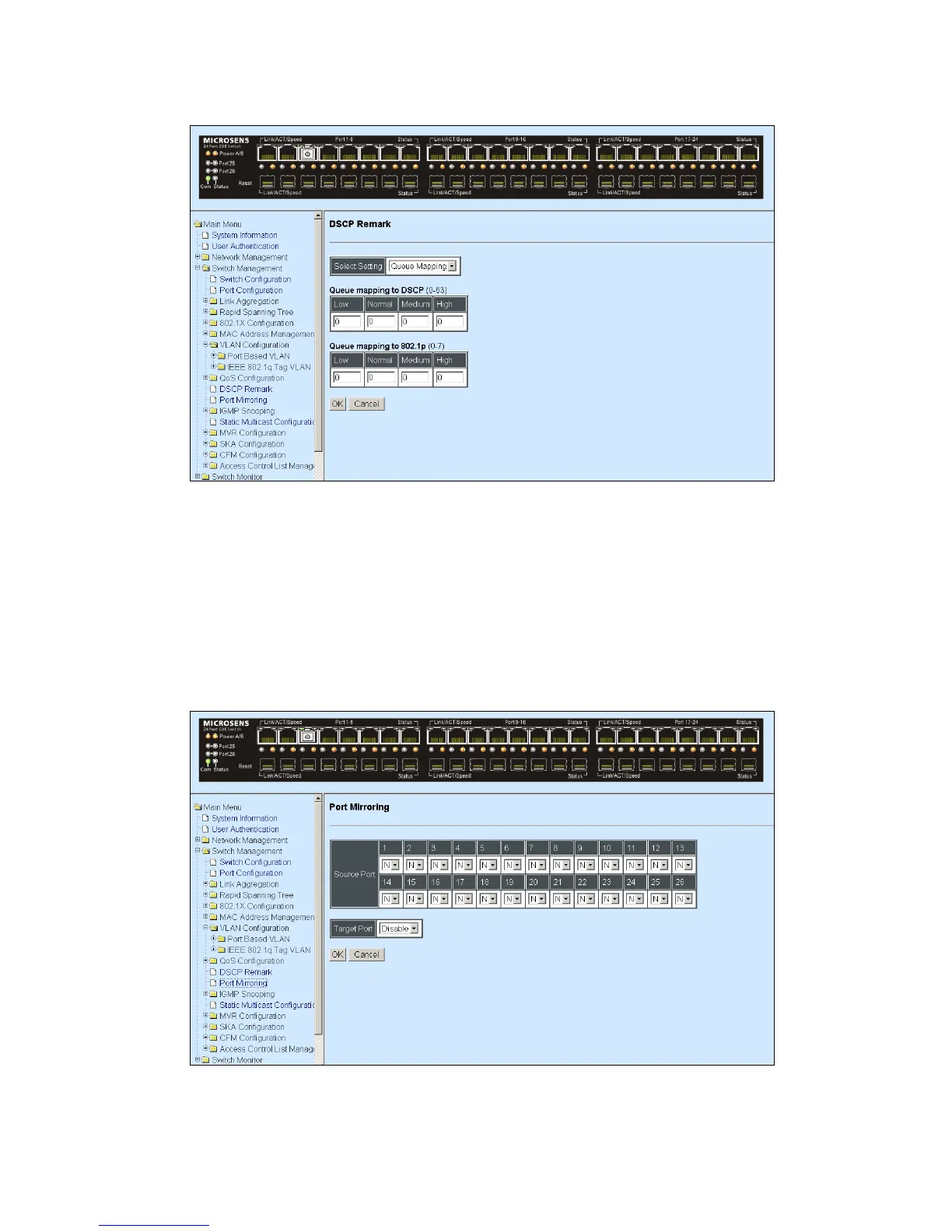

DSCP mapping to Queue: Assign a value (0~63) to four different levels.
802.1p mapping to Queue: Assign a value (0~7) to four different levels.
4.4.10 Port Mirroring
In order to allow Target Port to mirror Source Port and enable traffic monitoring, select the
option Port Mirroring from the Switch Management menu and then the following screen
page appears.
Source Port: Choose “Y” (enable) or “N” (disable) from the pull-down menu to enable or
disable Target Port‟s mirroring on the TX and RX of Source port.
