Microsens MS400870M Series User Manual

137

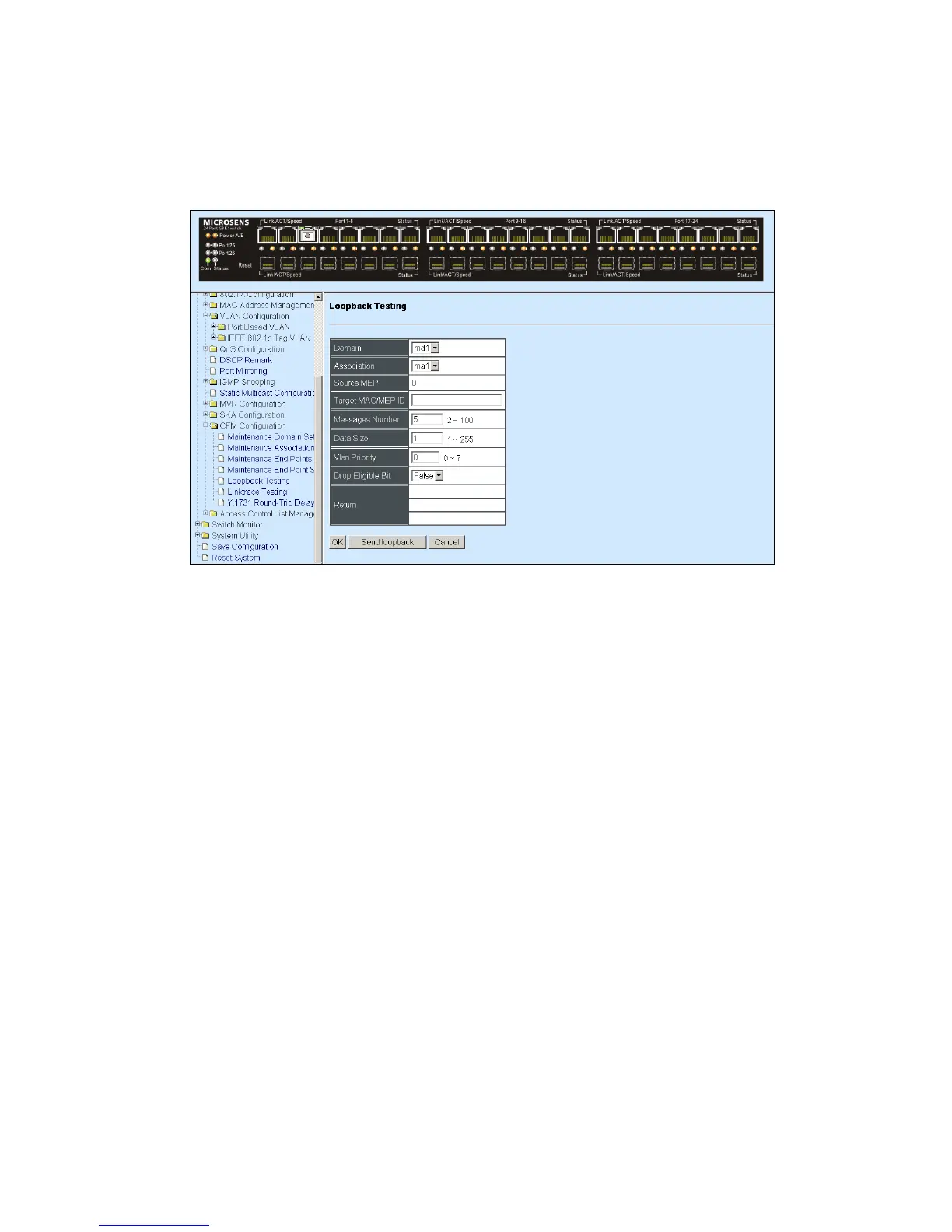

4.4.15.5 Loopback Testing
Select the option Loopback Testing from the CFM Configuration menu and then the
following screen page appears.
Domain: Select a registered MD.
Association: Select a current registered MA from the MD.
Source MEP: View-only field that shows the current MEP ID.
Target MAC/MEP ID: Specify the Target MEP ID or MAC for loopback test.
Messages Number: Specify the LBM Messages number for loopback test.
Data Size: Specify the Data Size for loopback test.
VLAN Priority: Specify the VLAN priority-bit for loopback test.
Drop Eligible Bit: Select “True” or “False” from the pull-down menu.
True: Frames will be dropped first when the transfer rate is exceeded because they
are less important.
False: Frames will not be dropped first when the transfer rate is exceeded.
Return: View-only filed that shows the results of “Send loopback”.
Send loopback: Start loopback test.
