RX Jabber Frames: Jabber frames received.
RX Oversize Frames: Oversize frames received.
RX Dropped Frames: Drop frames received.
Collision: Each port‟s Collision frames.
TX Dropped Frames: Drop frames sent.
Clear All: This will clear all port's counter values and be set back to zero.

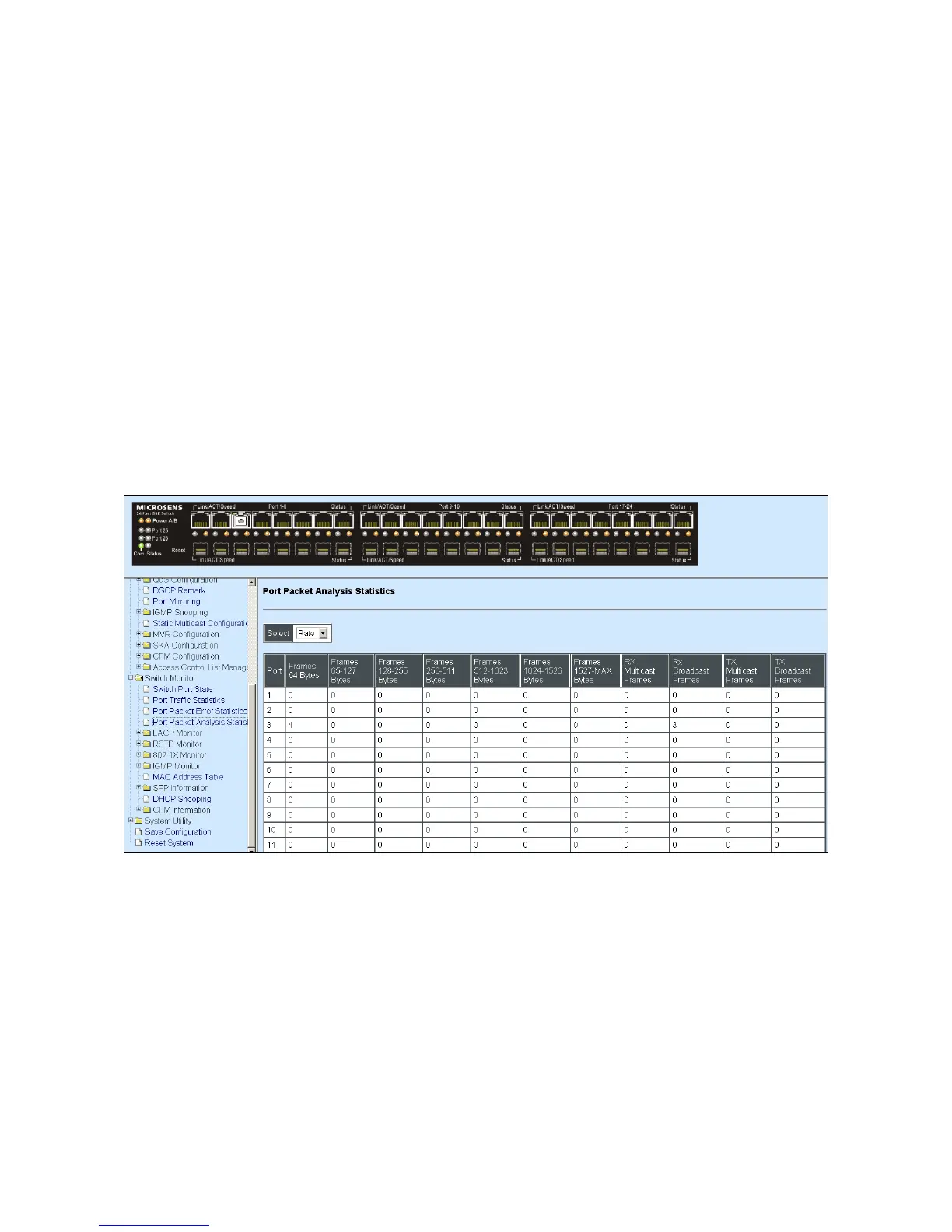

4.5.4 Port Packet Analysis Statistics
Port Packet Analysis Statistics Mode Counters allow users to view the port analysis
history of the Managed Switch. Event mode counters are calculated since the last time that
counter was reset or cleared. Select Port Packet Analysis Statistics from the Switch
Monitor menu and then the following screen page appears.
Select: Choose the Packet Error Statistics from the pull-down menu.
Frames 64 Bytes: 64 bytes frames received.
Frames 65-127 Bytes: 65-127 bytes frames received.
Frames 128-255 Bytes: 128-255 bytes frames received.
Frames 256-511 Bytes: 256-511 bytes frames received.
Frames 512-1023 Bytes: 512-1023 bytes frames received.
