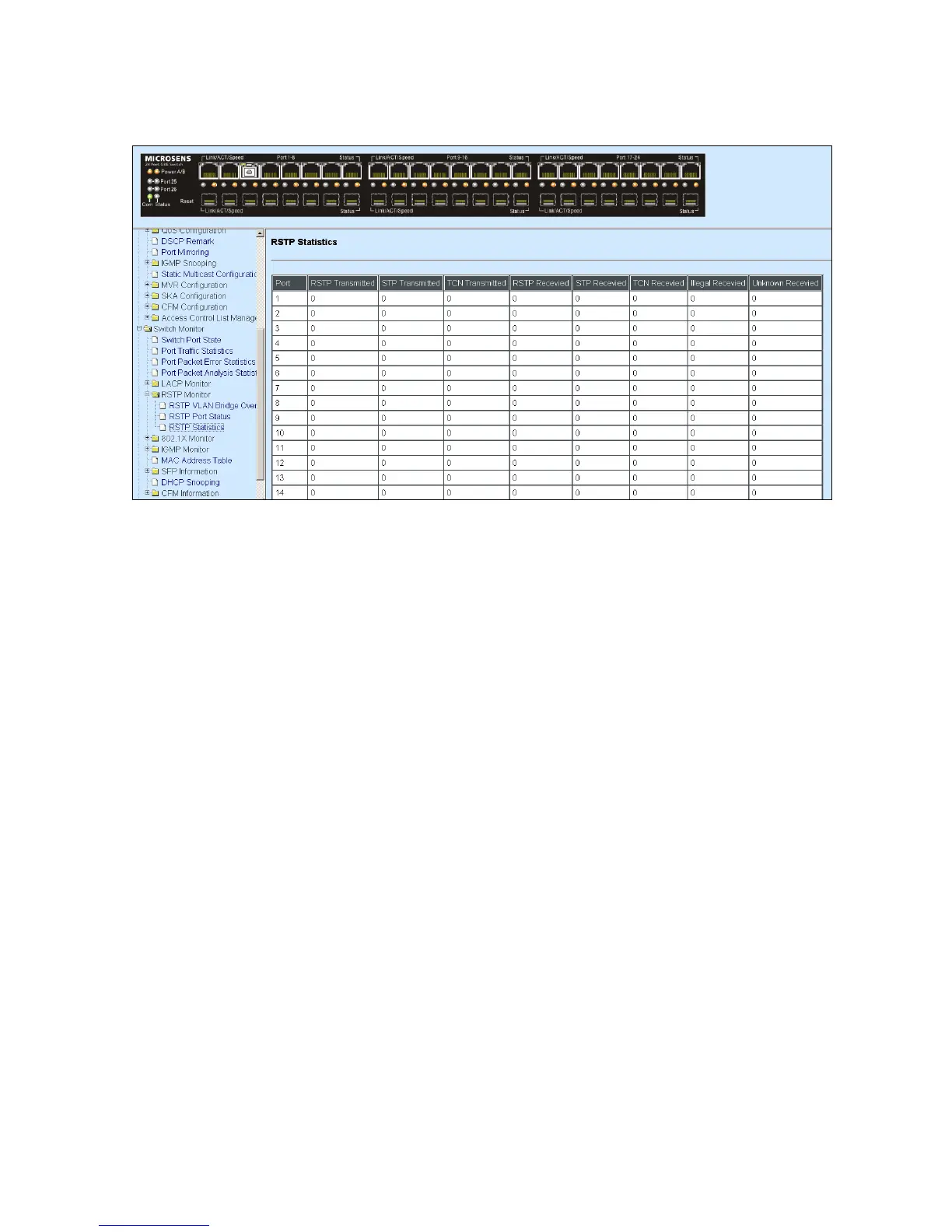

In order to view the real-time RSTP statistics status of the Managed Switch, select RSTP
Statistics from the RSTP Monitor menu and then the following screen page appears.
RSTP Transmitted: The total transmitted RSTP packets from current port.
STP Transmitted: The total transmitted STP packets from current port.
TCN Transmitted: The total transmitted TCN (Topology Change Notification) packets from
current port.
RSTP Received: The total received RSTP packets from current port.
STP Received: The total received STP packets from current port.
TCN Received: The total received TCN packets from current port.
Illegal Received: The total received illegal packets from current port.
Unknown Received: The total received unknown packets from current port.
4.5.7 802.1X Monitor
4.5.7.1 80.2.1X Port Status
802.1X Port Status allows users to view a list of all 802.1x ports‟ information. Select 802.1X
port status from the 802.1x Monitor menu and then the following screen page appears.
