Blocking/Listening:
Blocking: A Port in this state does not participate in frame relay; thus, it prevents frame
duplication arising from multiple paths existing in the active topology of Bridged LAN.
Learning: A port in this state prepares to participate in frame relay. Frame relay is
temporarily disabled in order to prevent temporary loops, which may occur in a Bridged
LAN during the lifetime of this state as the active topology of the Bridged LAN changes.
Learning is enabled to allow information to be acquired prior to frame relay in order to
reduce the number of frames that are unnecessarily relayed.
Forwarding: A port in this state participates in frame relay. Packets can be forwarded
only when port state is forwarding.
Link State: The current link status of the port, either up or down.
Speed (Mbps): The current operation speed of ports, which can be 10M, 100M or 1000M.
Duplex: The current operation Duplex mode of the port, either Full or Half.
Flow Control: The current state of Flow Control, either on or off
4.5.2 Port Traffic Statistics

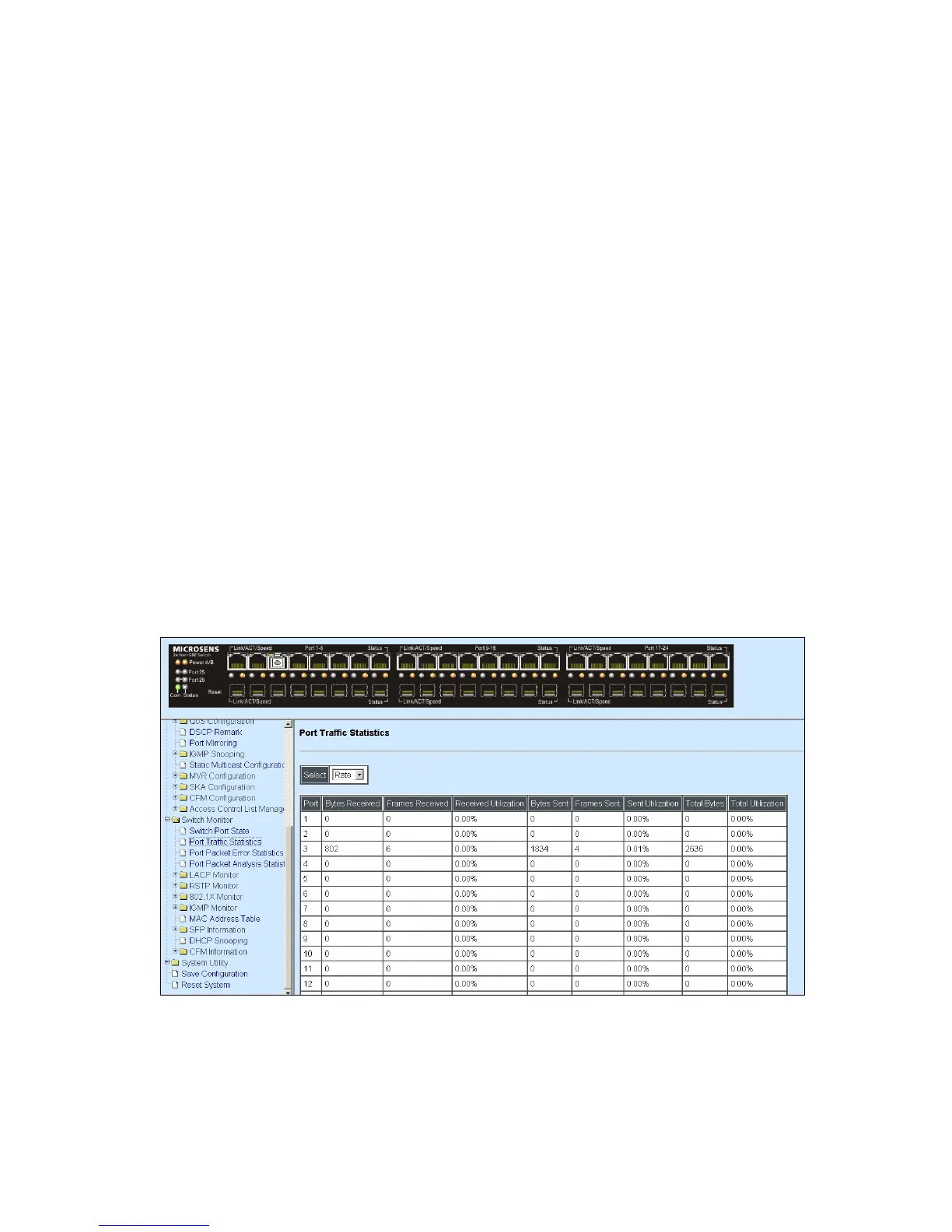

In order to view the real-time port traffic statistics of the Managed Switch, select Port Traffic
Statistics from the Switch Monitor menu and then the following screen page appears.
Select: Choose the Traffic Statistics from the pull-down menu.
Bytes Received: Total bytes received from each port.
Frames Received: Total frames received from each port.
To Next Page
