Segment Name: View-only field that shows the current registered Name.
IP Range: View-only field that shows the current registered IP Range.

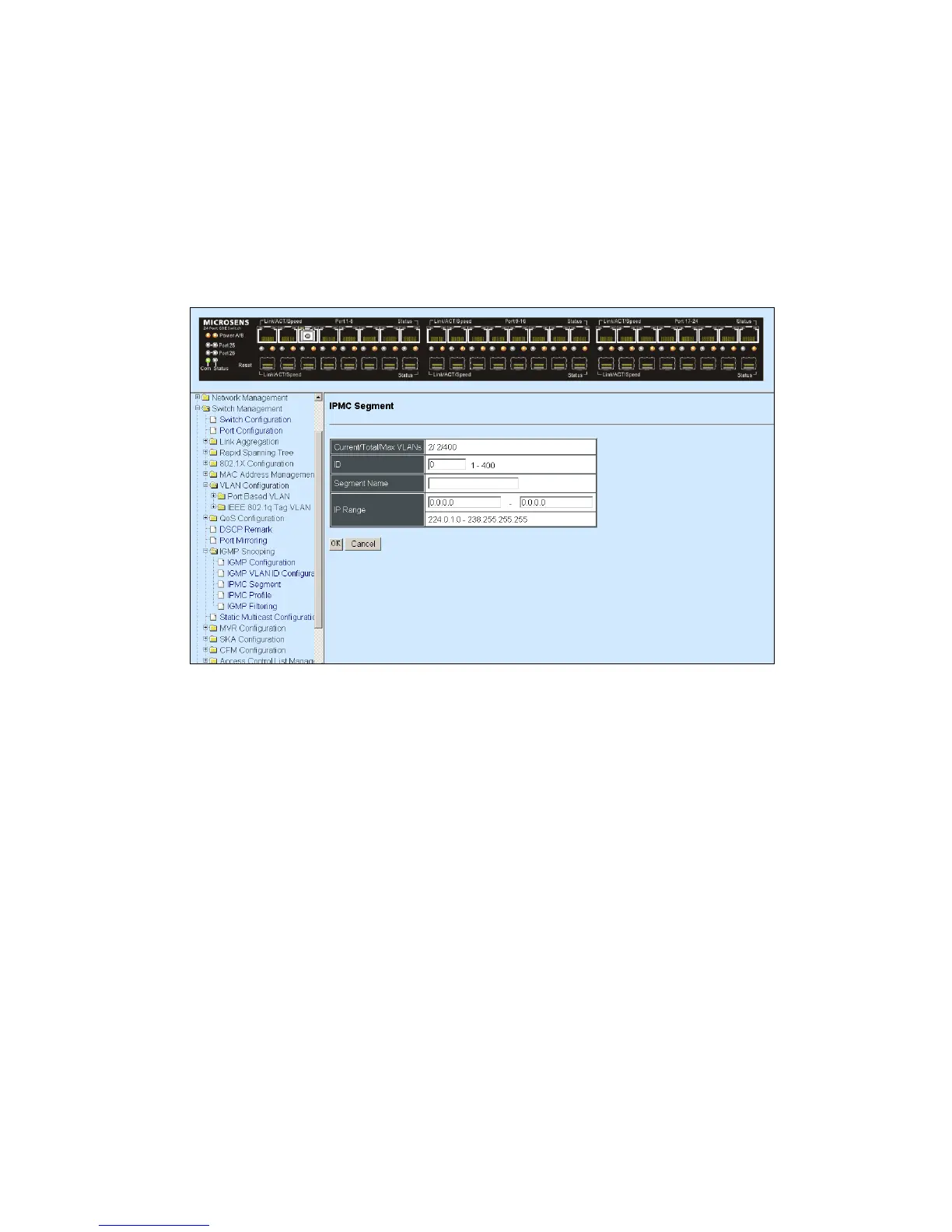

Click New to register a new IPMC Segment and then the following screen page appears.
Click Edit to edit and view the IPMC Segment settings.
Click Delete to remove a current IPMC Segment registration.
Current/Total/Max Segment Nums: View-only field.
Current: This shows the number of current registered IPMC Segment.
Total: This shows the total number of registered IPMC Segment.
Max: This shows the maximum number available for IPMC Segment. The maximum
number is 400.
Segment ID: Specify a number from 1~400 for a new ID.
Segment Name: Enter an identification name. This field is limited to 20 characters.
IP Range: Specify the multicast streams IP range for the registered segment. (The IP range
is from 224.0.1.0~238.255.255.255.)
4.4.11.4 IPMC Profile
Select the option IPMC Profile from the IGMP Snooping menu and then the following
screen page with the ability information of IPMC Profile appears.
