1. INTRODUCTION
Thank you for using the 24 dual speed combo ports plus 2 Giga combo port Managed
Switch. The built-in management module allows users to configure this Managed Switch
and monitor the operation status locally or remotely through the network.
1.1 Interface
There are 4 models in MS400870M Series. Descriptions and interface figures are provided
below:
MS400870M-1A – 24 dual speed combo ports plus 2 Giga combo port managed Switch
fixed 1 AC
MS400870M-2A – 24 dual speed combo ports plus 2 Giga combo port managed Switch
fixed 2 Redundant AC
MS400870M-1D – 24 dual speed combo ports plus 2 Giga combo port managed Switch fixed
1 DC
MS400870M-2D – 24 dual speed combo ports plus 2 Giga combo port managed Switch
fixed 2 Redundant DC

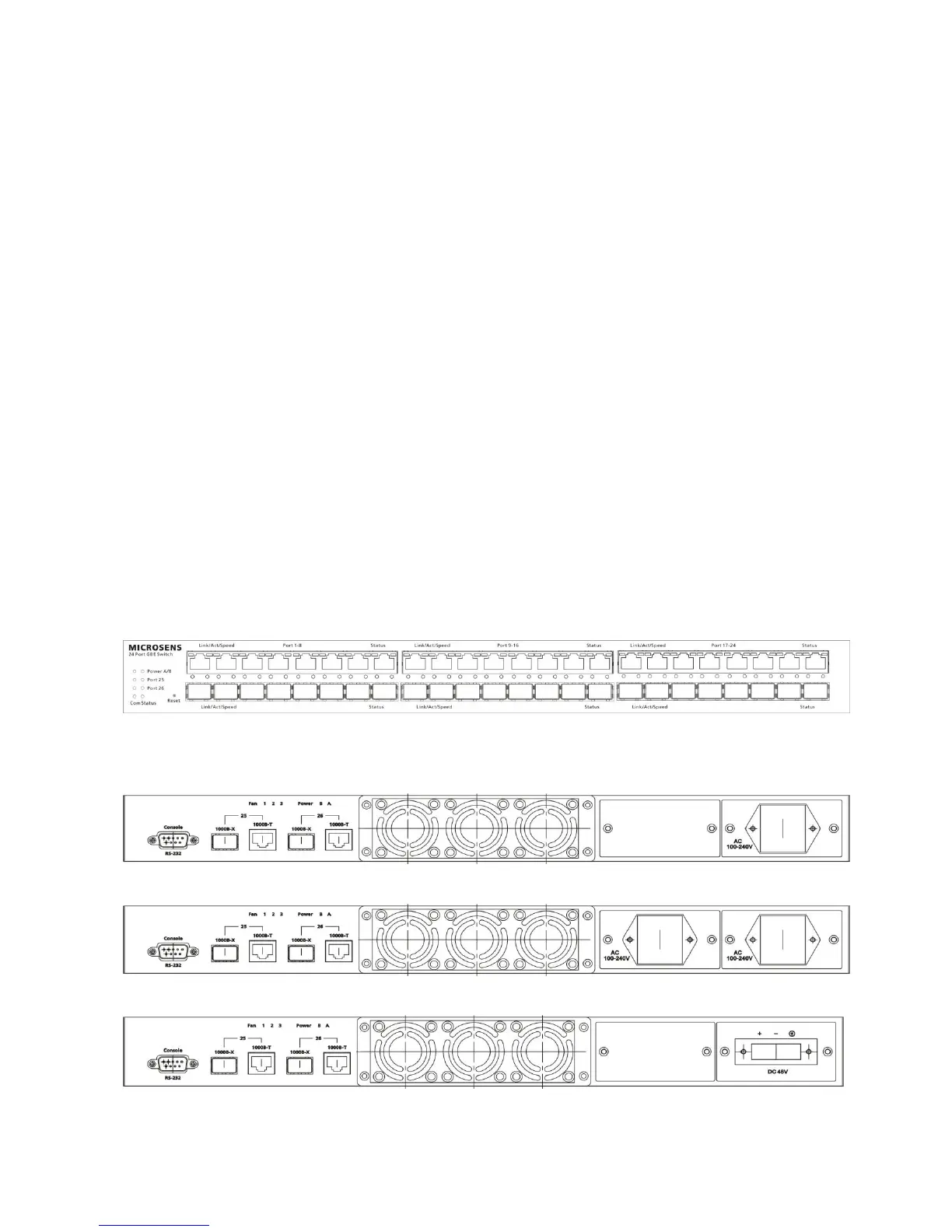

These 4 models have the same front panel:
Figure 1: MS400870M Series Front Panel
Each model has different rear panel format:
Figure 2-1: MS400870M-1A Rear Panel
Figure 2-2: MS400870M-2A Rear Panel
Figure 2-3: MS400870M-1D Rear Panel
