Microsens MS400870M Series - Configure VLAN

95
Configure VLAN: To create, edit or delete 802.1Q Tag VLAN settings.
Tag VLAN Setting: To set up VLAN-Aware, Ingress Filter, Frame Type, Port VLAN ID, Port
Egress Mode.

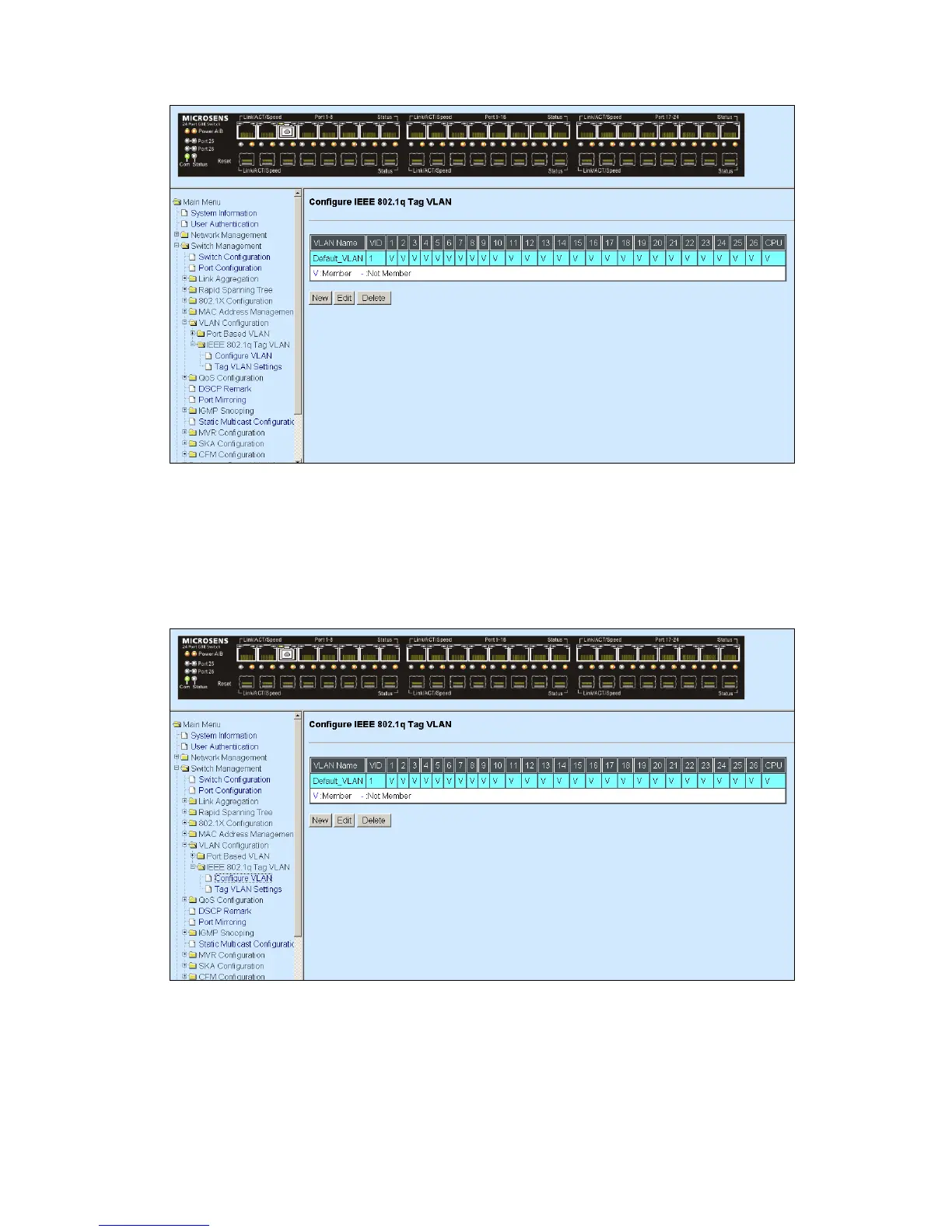

4.4.7.3.1 Configure VLAN
Click New to add a new VLAN entity an then the following screen page appears.
Click Edit to view and edit current IEEE 802.1Q Tag VLAN setting.
Click Delete to remove a VLAN entity.
