0180C200000X: Select either “Not Filter” or “Filter”. When “Filter” is selected, packets from
the address 0180C200000X will be filtered or dropped.
0180C200002X: Select either “Not Filter” or “Filter”. When “Filter” is selected, packets from
the address 0180C200002X will be filtered or dropped.
0180C2000010: Select either “Not Filter” or “Filter”. When “Filter” is selected, packets from
the address 0180C2000010 will be filtered or dropped.

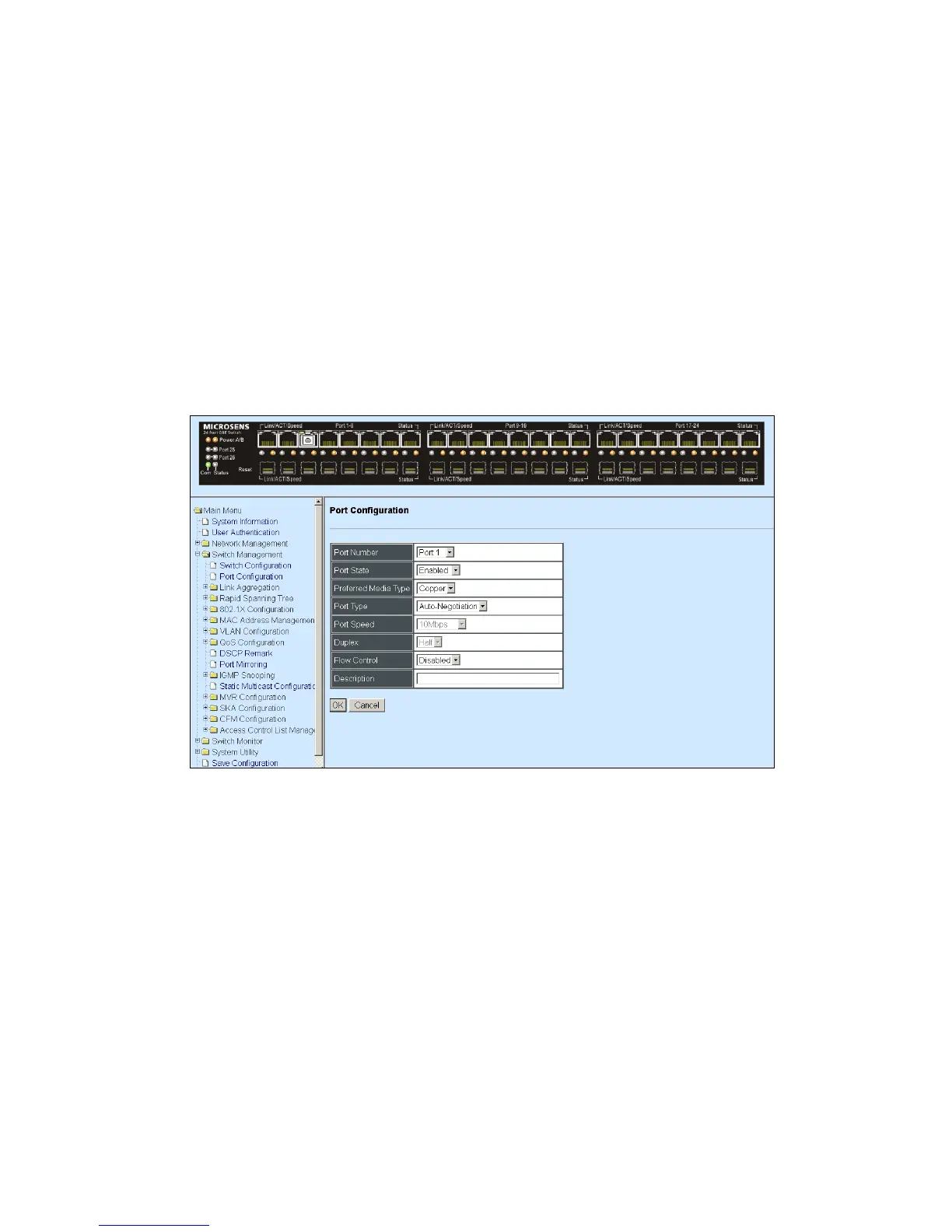

4.4.2 Port Configuration
Click the option Port Configuration from the Switch Management menu and then the
following screen page appears.
Port Number: Click the pull-down menu to select the port number for configuration.
Port State: Enable or disable the current port state.
Preferred Media Type: Select copper or fiber as the preferred media type.
Port Type: Select Auto-Negotiation or Manual mode as the port type.
Port Speed: When you select Manual port type, you can further specify the transmission
speed (10Mbps/100Mbps/1000Mbps) of the port(s).
Duplex: When you select Manual port type, you can further specify the current operation
Duplex mode (full or half duplex) of the port(s).
Flow Control: Enable or disable the flow control.
