Frames 1024-1518 Bytes: 1024-1518 bytes frames received.
Frames 1519-MAX Bytes: Over 1519 bytes frames received.
Multicast Frames RX: Good multicast frames received.
Broadcast Frames RX: Good broadcast frames received.
Multicast frames TX: Good multicast packets sent.
Broadcast Frames TX: Good broadcast packets sent.
Clear all: This will clear all port‟s counter values and be set back to zero.
4.5.5 LACP Monitor
4.5.5.1 LACP Port Status
LACP Port Status allows users to view a list of all LACP ports‟ information. Select LACP

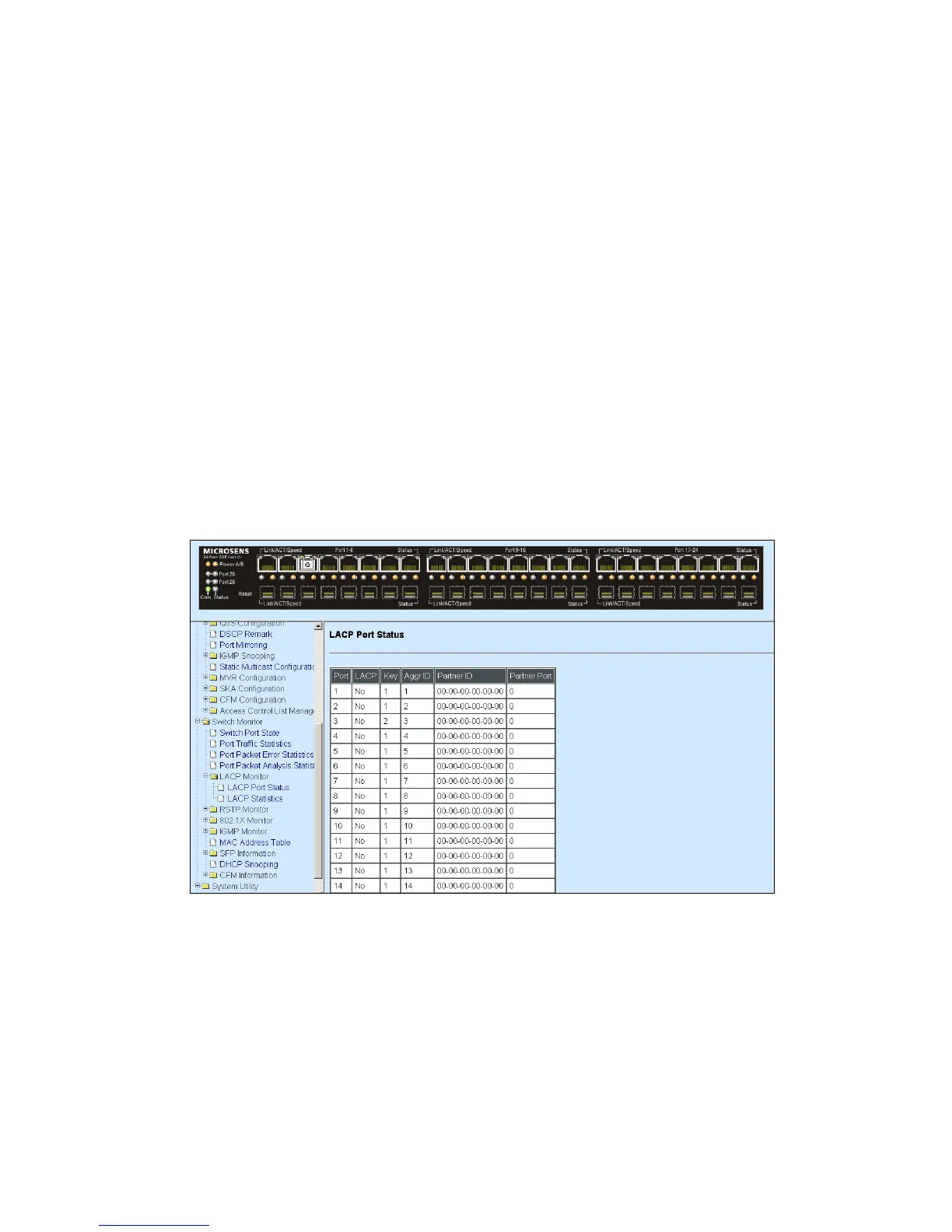

Port Status from the LACP monitor menu and then the following screen page appears.
In this page, you can find the following information of a LACP port:
Port Number: The number of the port.
Partner ID: The current operational key for the LACP group.
In LACP mode, link aggregation control protocol data unit (LACPDU) is used for exchanging
information among LACP-enabled devices. After LACP is enabled on a port, the port sends
LACPDUs to notify the remote system of its system LACP priority, system MAC address,
port LACP priority, port number and operational key. Upon receipt of an LACPDU, the
