Microsens MS400870M Series User Manual

156
VLAN ID: VID of the specific VLAN
Group: The multicast IP address of IGMP querier.
Port: The port(s) grouped in the specific multicast group.

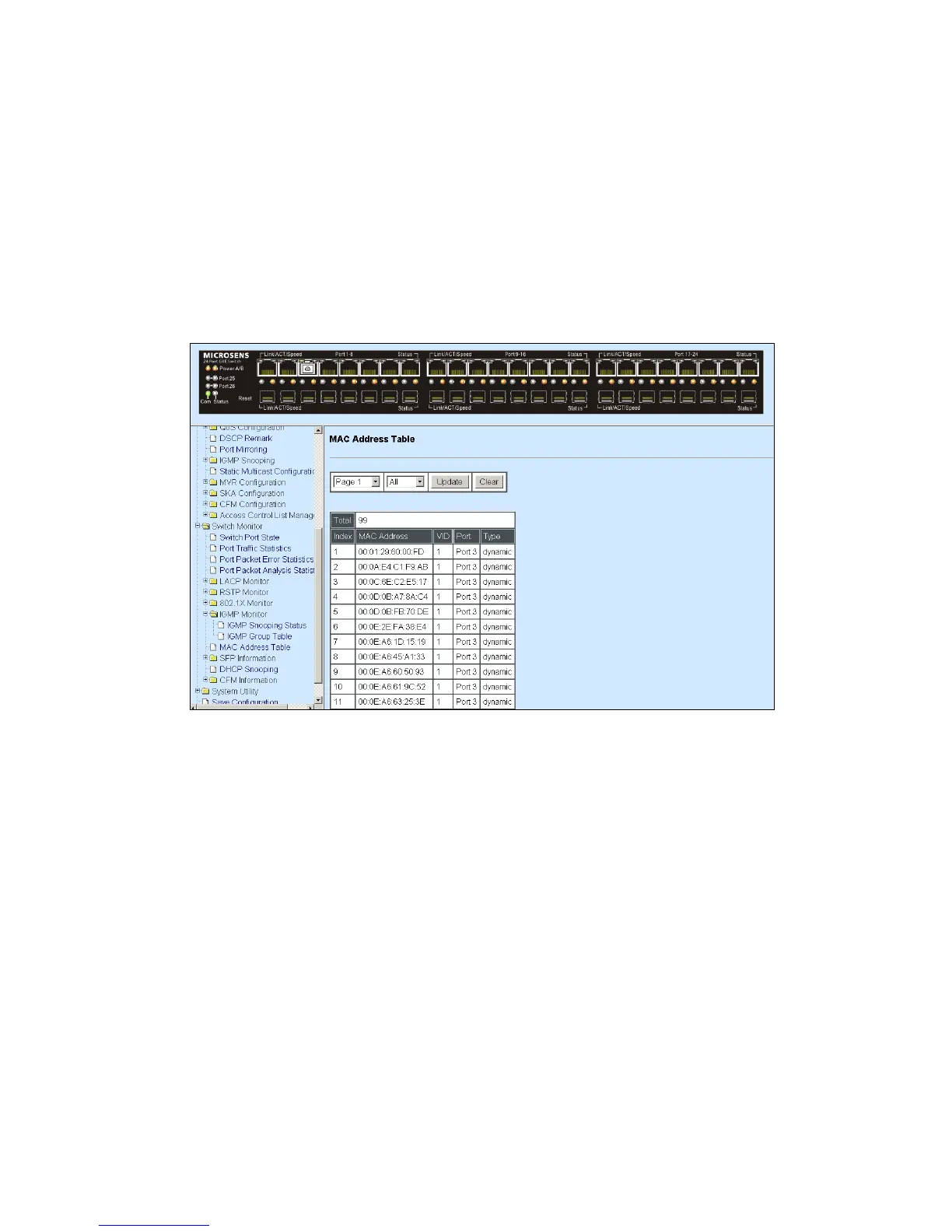

4.5.9 MAC Address Table
MAC Address Table displays MAC addresses learned when System Reset and MAC
Address Learning are enabled.
The table above shows the MAC addresses learned from each port of the Managed Switch.
Click Update to update the MAC Address Table.
Click Clear to clear the MAC Address table.
4.5.10 SFP Information
4.5.10.1 SFP Port Information
SFP Information displays each port‟s slide-in SFP Transceiver information e.g. Speed,
Length, Vendor Name, Vendor PN, Vendor SN, and detection Temperature, Voltage , TX
Bias, etc. Select SFP Port Info from the SFP Information menu and then the following
screen page appears.
